non-sampler uniforms must be declared in blocks 求大神指点迷津哪里错了

Creator 2.x
#1

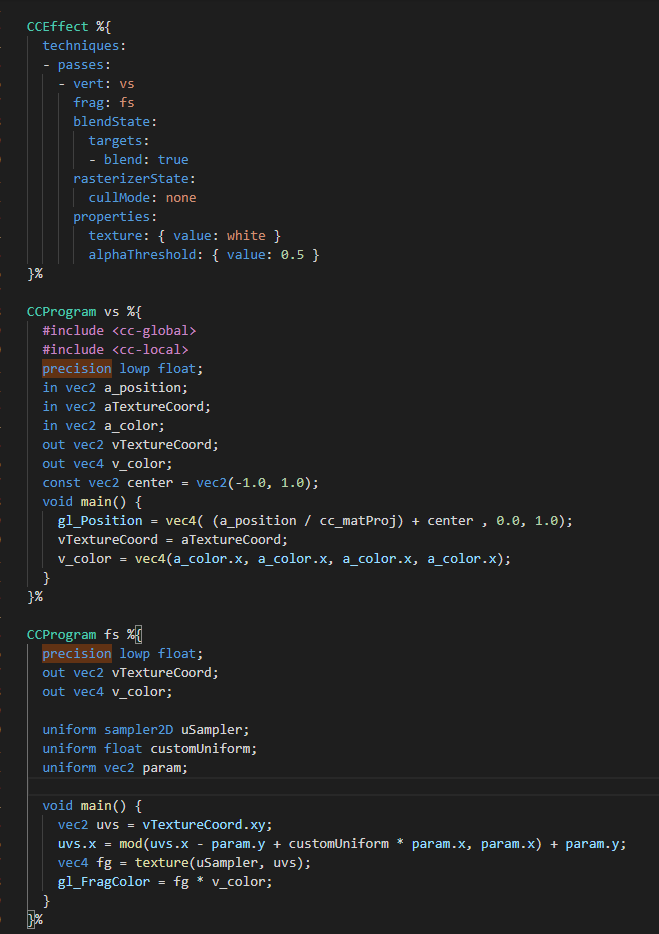

image.png659×934 30.4 KB

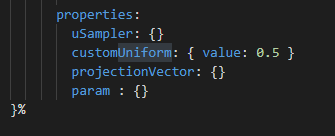

image.png769×84 3.69 KB

#2

是不是让你在properites里声明一下customUniform和param

#3

弄明白了
你需要这样写：

uniform FragConstants {
    float customUniform;
    vec2 param;
  };
#4

声明了还是一样

#5

// Copyright © 2017-2018 Xiamen Yaji Software Co., Ltd.

CCEffect %{
techniques:

  • passes:
    • vert: vs
      frag: fs
      blendState:
      targets:
      • blend: true
        rasterizerState:
        cullMode: none
        properties:
        uSampler: {}
        customUniform: { value: 0.5 }
        projectionVector: {}
        param : {}
        }%

CCProgram vs %{
precision lowp float;

#include
#include

in vec2 a_position;
in vec2 aTextureCoord;
in vec2 a_color;
uniform FragConstants {
vec2 projectionVector;
vec2 center = vec2(-1.0, 1.0);
}

out vec2 vTextureCoord;
out vec4 v_color;
void main(void) {
gl_Position = vec4( (a_position / projectionVector) + center , 0.0, 1.0);
vTextureCoord = aTextureCoord;
v_color = vec4(a_color.x, a_color.x, a_color.x, a_color.x);
}
}%

CCProgram fs %{
precision lowp float;
out vec2 vTextureCoord;
out vec4 v_color;
uniform FragConstants {
sampler2D uSampler;
float customUniform;
vec2 param;
};
void main(void) {
vec2 uvs = vTextureCoord.xy;
uvs.x = mod(uvs.x - param.y + customUniform * param.x, param.x) + param.y;
vec4 fg = texture2D(uSampler, uvs);
gl_FragColor = fg * v_color;
}
}%

error EFX2209: missing semicolon after UBO ‘FragConstants’ declaration

#6

这个是slg 行军线的 shader

#7

// Copyright © 2017-2018 Xiamen Yaji Software Co., Ltd.

CCEffect %{
techniques:

  • passes:
    • vert: vs
      frag: fs
      blendState:
      targets:
      • blend: true
        rasterizerState:
        cullMode: none
        properties:
        uSampler: {
        type: sampler2D
        }
        customUniform: {
        value: 0.5
        }
        projectionVector: {}
        param : {
        type: vec2
        }
        center : {
        type: vec2
        }
        }%

CCProgram vs %{
precision lowp float;

#include
#include

in vec2 a_position;
in vec2 aTextureCoord;
in vec2 a_color;

vec2 center = vec2(-1.0, 1.0);

out vec2 vTextureCoord;
out vec4 v_color;
void main(void) {
gl_Position = vec4( (a_position / cc_matProj) + center , 0.0, 1.0);
vTextureCoord = aTextureCoord;
v_color = vec4(a_color.x, a_color.x, a_color.x, a_color.x);
}
}%

CCProgram fs %{
precision lowp float;
out vec2 vTextureCoord;
out vec4 v_color;
uniform FragConstants {
sampler2D uSampler;
float customUniform;
vec2 param;
};
void main(void) {
vec2 uvs = vTextureCoord.xy;
uvs.x = mod(uvs.x - param.y + customUniform * param.x, param.x) + param.y;
vec4 fg = texture2D(uSampler, uvs);
gl_FragColor = fg * v_color;
}
}%

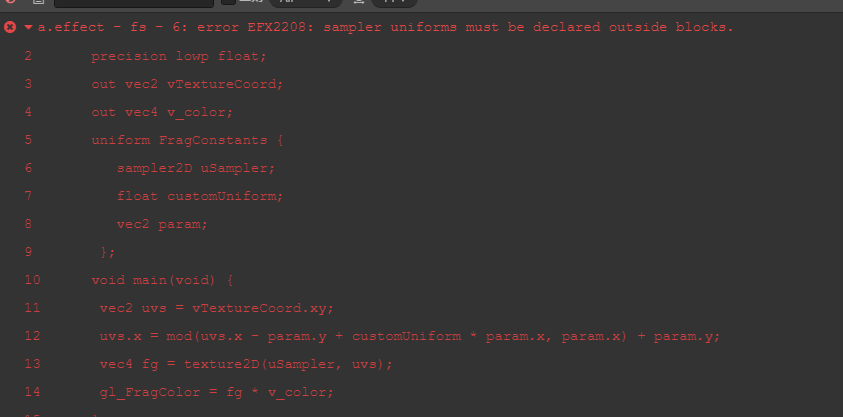

a.effect - fs - 6: error EFX2208: sampler uniforms must be declared outside blocks.

image.png843×417 9.95 KB

搞哭了

#8

这提示不是很明显了么？
缺少分号
uniform FragConstants {
vec2 projectionVector;
vec2 center = vec2(-1.0, 1.0);
};

#9

sampler不要放进去，其它的要放进去。
你要看下错误提示啊

#10

// Copyright © 2017-2018 Xiamen Yaji Software Co., Ltd.

CCEffect %{
techniques:

  • passes:
    • vert: vs
      frag: fs
      blendState:
      targets:
      • blend: true
        rasterizerState:
        cullMode: none
        properties:
        uSampler: {
        type: sampler2D
        }
        customUniform: {
        value: 0
        }
        projectionVector: {}
        param : {
        type: vec2
        }
        }%

CCProgram vs %{
precision lowp float;

#include
#include

in vec2 a_position;
in vec2 aTextureCoord;
in vec2 a_color;

vec2 center = vec2(-1.0, 1.0);

out vec2 vTextureCoord;
out vec4 v_color;
void main(void) {
gl_Position = vec4( (a_position / cc_matProj) + center , 0.0, 1.0);
vTextureCoord = aTextureCoord;
v_color = vec4(a_color.x, a_color.x, a_color.x, a_color.x);
}
}%

CCProgram fs %{
precision lowp float;
out vec2 vTextureCoord;
out vec4 v_color;
uniform sampler2D uSampler;
uniform FragConstants {
float customUniform;
vec2 param;
};
void main(void) {
vec2 uvs = vTextureCoord.xy;
uvs.x = mod(uvs.x - param.y + customUniform * param.x, param.x) + param.y;
vec4 fg = texture2D(uSampler, uvs);
gl_FragColor = fg * v_color;
}
}%

image.png1105×57 4.31 KB

哎

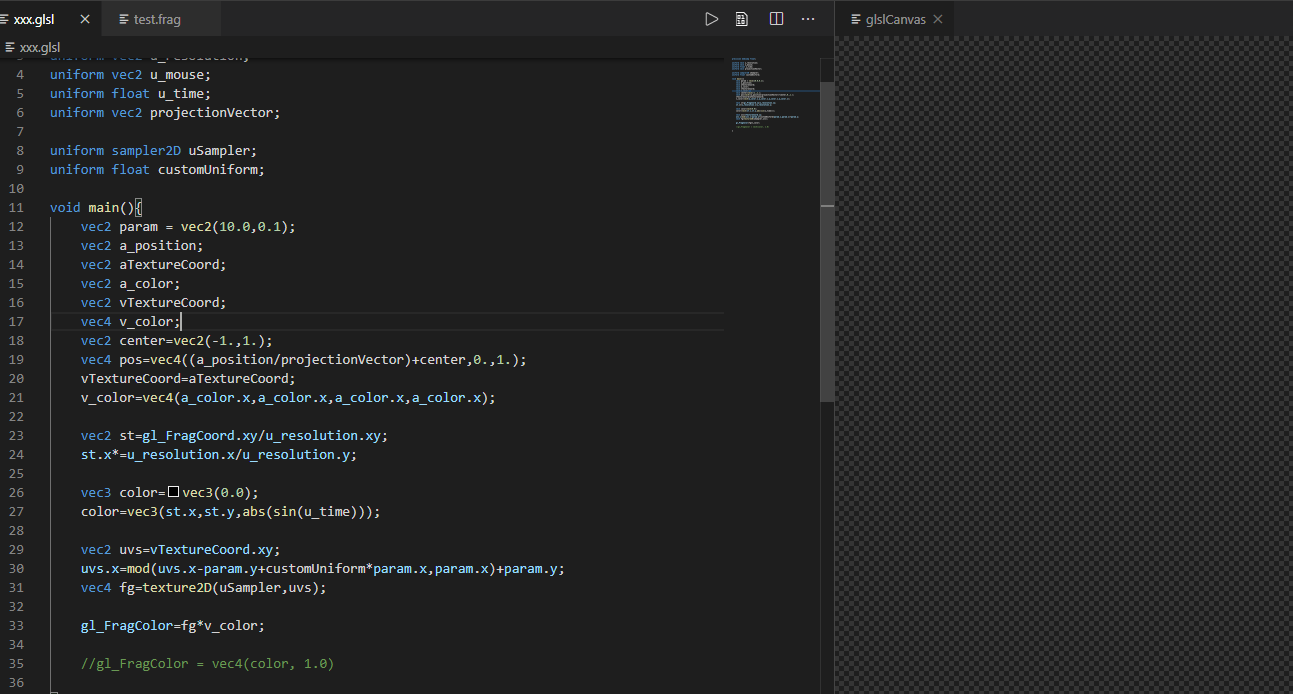

image.png1293×694 40.3 KB

为什么不直接用glsl 然后传个参数 好调试多了

#11

我推荐你看下这个：
https://mp.weixin.qq.com/s/I_WWH9AqagfPfXuXonvveg
:joy:

#12

萌新认真请教,请问写好后要怎么用TS调用这个函数?(在Update中改projectionVector)
