shader问题effect请教。。。

[772100606 (不求上进)]

从shadertoy上移植effect过来，在编辑器里看上去正常，但是在web上运行就不对了。。。
不知道什么问题，求解

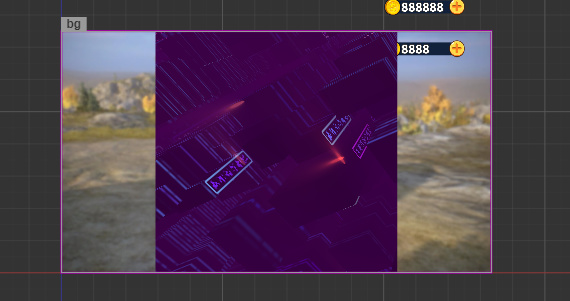

编辑器里

web运行：

shadertoy地址：
https://www.shadertoy.com/view/wdfGW4

[772100606 (不求上进)]

effect代码：

CCEffect %{

techniques:

• passes:

  • vert: vs

    frag: fs

    blendState:

    targets:

    • blend: true

    rasterizerState:

    cullMode: none

    properties:

    texture: { value: white }

    alphaThreshold: { value: 0.5 }

    噪声纹理

    noisetex: { value: white }

}%

CCProgram vs %{

precision highp float;

#include

#include

in vec3 a_position;

in vec4 a_color;

out vec4 v_color;

#if USE_TEXTURE

in vec2 a_uv0;

out vec2 v_uv0;

#endif

void main () {

vec4 pos = vec4(a_position, 1);

#if CC_USE_MODEL

pos = cc_matViewProj * cc_matWorld * pos;

#else

pos = cc_matViewProj * pos;

#endif

#if USE_TEXTURE

v_uv0 = a_uv0;

#endif

v_color = a_color;

gl_Position = pos;

}

}%

CCProgram fs %{

precision highp float;

#include

#include

#include <cc-global.chunk>

in vec4 v_color;

#if USE_TEXTURE

in vec2 v_uv0;

uniform sampler2D texture;

#endif

#if USE_NOISETEX

uniform sampler2D noisetex;

#endif

vec2 cc_nativeSize;

//#define FAST_DESCENT

//#define BLACK_AND_WHITE

#if FAST_DESCENT

const vec3 cameraDir = normalize(vec3(-2.0, -1.0, -4.0));

const float cameraDist = 5.0;

const float speed = 3.0;

const float zoom = 2.5;

const vec3 windowColorA = vec3(0.0, 0.0, 1.5);

const vec3 windowColorB = vec3(0.5, 1.5, 2.0);

const float fogOffset = 2.5;

const float fogDensity = 0.6;

const vec3 fogColor = vec3(0.25, 0.0, 0.3);

const float lightHeight = 0.5;

const float lightSpeed = 0.2;

const vec3 lightColorA = vec3(0.7, 0.3, 0.1);

const vec3 lightColorB = vec3(1.0, 0.6, 0.3);

const vec3 signColorA = vec3(0.0, 0.0, 1.5);

const vec3 signColorB = vec3(3.0, 3.0, 3.0);

#else

const vec3 cameraDir = normalize(vec3(-2.0, -1.0, -2.0));

const float cameraDist = 9.0;

const float speed = 1.0;

const float zoom = 3.5;

const vec3 windowColorA = vec3(0.0, 0.0, 1.5);

const vec3 windowColorB = vec3(0.5, 1.5, 2.0);

const float fogOffset = 7.0;

const float fogDensity = 0.7;

const vec3 fogColor = vec3(0.25, 0.0, 0.3);

const float lightHeight = 0.0;

const float lightSpeed = 0.15;

const vec3 lightColorA = vec3(0.7, 0.3, 0.1);

const vec3 lightColorB = vec3(1.0, 0.6, 0.3);

const vec3 signColorA = vec3(0.0, 0.0, 1.5);

const vec3 signColorB = vec3(3.0, 3.0, 3.0);

#endif

const float tau = 6.283185;

float hash1(float p) {

    vec3 p3 = fract(p * vec3(5.3983, 5.4427, 6.9371));

    p3 += dot(p3, p3.yzx + 19.19);

    return fract((p3.x + p3.y) * p3.z);

}

float hash1(vec2 p2) {

    p2 = fract(p2 * vec2(5.3983, 5.4427));

    p2 += dot(p2.yx, p2.xy + vec2(21.5351, 14.3137));

    return fract(p2.x * p2.y * 95.4337);

}

float hash1(vec2 p2, float p) {

    vec3 p3 = fract(vec3(5.3983 * p2.x, 5.4427 * p2.y, 6.9371 * p));

    p3 += dot(p3, p3.yzx + 19.19);

    return fract((p3.x + p3.y) * p3.z);

}

vec2 hash2(vec2 p2, float p) {

    vec3 p3 = fract(vec3(5.3983 * p2.x, 5.4427 * p2.y, 6.9371 * p));

    p3 += dot(p3, p3.yzx + 19.19);

    return fract((p3.xx + p3.yz) * p3.zy);

}

vec3 hash3(vec2 p2) {

    vec3 p3 = fract(vec3(p2.xyx) * vec3(5.3983, 5.4427, 6.9371));

    p3 += dot(p3, p3.yxz + 19.19);

    return fract((p3.xxy + p3.yzz) * p3.zyx);

}

vec4 hash4(vec2 p2) {

    vec4 p4 = fract(p2.xyxy * vec4(5.3983, 5.4427, 6.9371, 7.1283));

    p4 += dot(p4, p4.yxwz + 19.19);

    return fract((p4.xxxy + p4.yyzz + p4.zwww) * p4.wzyx);

}

float noise(vec2 p) {

    vec2 i = floor(p);

    vec2 f = fract(p);

    vec2 u = f * f * (3.0 - 2.0 * f);

    return mix(mix(hash1(i + vec2(0.0, 0.0)),

                hash1(i + vec2(1.0, 0.0)), u.x),

            mix(hash1(i + vec2(0.0, 1.0)),

                hash1(i + vec2(1.0, 1.0)), u.x), u.y);

}

vec4 castRay(vec3 eye, vec3 ray, vec2 center) {

    vec2 block = floor(eye.xy);

    vec3 ri = 1.0 / ray;

    vec3 rs = sign(ray);

    vec3 side = 0.5 + 0.5 * rs;

    vec2 ris = ri.xy * rs.xy;

    vec2 dis = (block - eye.xy + 0.5 + rs.xy * 0.5) * ri.xy;

    for (int i = 0; i < 16; ++i) {

        float d = dot(block - center, cameraDir.xy);

        float height = 3.0 * hash1(block) - 1.0 + 1.5 * d - 0.1 * d * d;

        vec2 lo0 = vec2(block);

        vec2 loX = vec2(0.45, 0.45);

        vec2 hi0 = vec2(block + 0.55);

        vec2 hiX = vec2(0.45, 0.45);

        float dist = 500.0;

        float face = 0.0;

        {

            vec4 signHash = hash4(block);

            vec2 center = vec2(0.2, -0.4) + vec2(0.6, -0.8) * signHash.xy;

            float width = 0.06 + 0.1 * signHash.w;

            vec3 lo = vec3(center.x - width, 0.55, -100.0);

            vec3 hi = vec3(center.x + width, 0.99, center.y + width + height);

            float s = step(0.5, signHash.z);

            lo = vec3(block, 0.0) + mix(lo, lo.yxz, s);

            hi = vec3(block, 0.0) + mix(hi, hi.yxz, s);

            vec3 wall = mix(hi, lo, side);

            vec3 t = (wall - eye) * ri;

            vec3 dim = step(t.zxy, t) * step(t.yzx, t);

            float maxT = dot(dim, t);

            float maxFace = dim.x - dim.y;

            vec3 p = eye + maxT * ray;

            dim += step(lo, p) * step(p, hi);

            if (dim.x * dim.y * dim.z > 0.5) {

                dist = maxT;

                face = maxFace;

            }

        }

        for (int j = 0; j < 5; ++j) {

            float top = height - 0.4 * float(j);

            vec3 lo = vec3(lo0 + loX * hash2(block, float(j)), -100.0);

            vec3 hi = vec3(hi0 + hiX * hash2(block, float(j) + 0.5), top);

            vec3 wall = mix(hi, lo, side);

            vec3 t = (wall - eye) * ri;

            vec3 dim = step(t.zxy, t) * step(t.yzx, t);

            float maxT = dot(dim, t);

            float maxFace = dim.x - dim.y;

            vec3 p = eye + maxT * ray;

            dim += step(lo, p) * step(p, hi);

            if (dim.x * dim.y * dim.z > 0.5 && maxT < dist) {

                dist = maxT;

                face = maxFace;

            }

        }

        if (dist < 400.0) {

            return vec4(dist, height, face, 1.0);

        }

        float t = eye.z * ri.z;

        vec3 p = eye - t * ray;

        vec2 g = p.xy - block;

        vec2 dim = step(dis.xy, dis.yx);

        dis += dim * ris;

        block += dim * rs.xy;

    }

    return vec4(100.0, 0.0, 0.0, 1.0);

}

vec3 window(float z, vec2 pos, vec2 id) {

    float windowSize = 0.03 + 0.12 * hash1(id + 0.1);

    float windowProb = 0.3 + 0.8 * hash1(id + 0.2);

    float depth = z / windowSize;

    float level = floor(depth);

    vec3 colorA = mix(windowColorA, windowColorB, hash3(id));

    vec3 colorB = mix(windowColorA, windowColorB, hash3(id + 0.1));

    vec3 color = mix(colorA, colorB, hash1(id, level));

    color *= 0.3 + 0.7 * smoothstep(0.1, 0.5, noise(20.0 * pos + 100.0 * hash1(level)));

    color *= smoothstep(windowProb - 0.2, windowProb + 0.2, hash1(id, level + 0.1));

    return color * (0.5 - 0.5 * cos(tau * depth));

}

vec3 addLight(vec3 eye, vec3 ray, float res, float time, float height) {

    vec2 q = eye.xy + ((height - eye.z) / ray.z) * ray.xy;

    float row = floor(q.x + 0.5);

    time += hash1(row);

    float col = floor(0.125 * q.y - time);

    float pos = 0.4 + 0.4 * cos(time + tau * hash1(vec2(row, col)));

    vec3 lightPos = vec3(row, 8.0 * (col + time + pos), height);

    vec3 lightDir = vec3(0.0, 1.0, 0.0);

    // http://geomalgorithms.com/a07-_distance.html

    vec3 w = eye - lightPos;

    float a = dot(ray, ray);

    float b = dot(ray, lightDir);

    float c = dot(lightDir, lightDir);

    float d = dot(ray, w);

    float e = dot(lightDir, w);

    float D = a * c - b * b;

    float s = (b*e - c*d) / D;

    float t = (a*e - b*d) / D;

    t = max(t, 0.0);

    float dist = distance(eye + s * ray, lightPos + t * lightDir);

    float mask = smoothstep(res + 0.1, res, s);

    float light = min(0.005 / (dist * dist / t + 0.1 * t * t), 2.0);

    float fog = exp(-fogDensity * max(s - fogOffset, 0.0));

    vec3 color = mix(lightColorA, lightColorB, hash3(vec2(row, col)));

    return mask * light * fog * color;

}

vec3 addSign(vec3 color, vec3 pos, float side, vec2 id) {

    vec4 signHash = hash4(id);

    float s = step(0.5, signHash.z);

    if ((s - 0.5) * side < 0.1)

        return color;

    vec2 center = vec2(0.2, -0.4) + vec2(0.6, -0.8) * signHash.xy;

    vec2 p = mix(pos.xz, pos.yz, s);

    float halfWidth = 0.04 + 0.06 * signHash.w;

    float charCount = floor(1.0 + 8.0 * hash1(id + 0.5));

    if (center.y - p.y > 2.0 * halfWidth * (charCount + 1.0)) {

        center.y -= 2.0 * halfWidth * (charCount + 1.5 + 5.0 * hash1(id + 0.6));

        charCount = floor(2.0 + 12.0 * hash1(id + 0.7));

        id += 0.05;

    }

    vec3 signColor = mix(signColorA, signColorB, hash3(id + 0.5));

    vec3 outlineColor = mix(signColorA, signColorB, hash3(id + 0.6));

    float flash = 6.0 - 24.0 * hash1(id + 0.8);

    flash *= step(3.0, flash);

    flash = smoothstep(0.1, 0.5, 0.5 + 0.5 * cos(flash * cc_time.x));

    vec2 halfSize = vec2(halfWidth, halfWidth * charCount);

    center.y -= halfSize.y;

    float outline = length(max(abs(p - center) - halfSize, 0.0)) / halfWidth;

    color *= smoothstep(0.1, 0.4, outline);

    vec2 charPos = 0.5 * (p - center + halfSize) / halfWidth;

    vec2 charId = id + 0.05 + 0.1 * floor(charPos);

    float flicker = hash1(charId);

    flicker = step(0.93, flicker);

    flicker = 1.0 - flicker * step(0.96, hash1(charId, cc_time.x));

    float char = -3.5 + 8.0 * noise(id + 6.0 * charPos);

    charPos = fract(charPos);

    char *= smoothstep(0.0, 0.4, charPos.x) * smoothstep(1.0, 0.6, charPos.x);

    char *= smoothstep(0.0, 0.4, charPos.y) * smoothstep(1.0, 0.6, charPos.y);

    color = mix(color, signColor, flash * flicker * step(outline, 0.01) * clamp(char, 0.0, 1.0));

    outline = smoothstep(0.0, 0.2, outline) * smoothstep(0.5, 0.3, outline);

    return mix(color, outlineColor, flash * outline);

}

void mainImage(out vec4 fragColor, in vec2 fragCoord) {

    vec2 iResolution = vec2(1136,640);

    vec2 center = -speed * cc_time.x * cameraDir.xy;

    vec3 eye = vec3(center, 0.0) - cameraDist * cameraDir;

    vec3 forward = normalize(cameraDir);

    vec3 right = normalize(cross(forward, vec3(0.0, 0.0, 1.0)));

    vec3 up = cross(right, forward);

    vec2 xy = 2.0 * fragCoord - iResolution.xy;

    vec3 ray = normalize(xy.x * right + xy.y * up + zoom * forward * iResolution.y);

    vec4 res = castRay(eye, ray, center);

    vec3 p = eye + res.x * ray;

    vec2 block = floor(p.xy);

    vec3 color = window(p.z - res.y, p.xy, block);

    color = addSign(color, vec3(p.xy - block, p.z - res.y), res.z, block);

    color = mix(vec3(0.0), color, abs(res.z));

    float fog = exp(-fogDensity * max(res.x - fogOffset, 0.0));

    color = mix(fogColor, color, fog);

    float time = lightSpeed * cc_time.x;

    color += addLight(eye.xyz, ray.xyz, res.x, time, lightHeight - 0.6);

    color += addLight(eye.yxz, ray.yxz, res.x, time, lightHeight - 0.4);

    color += addLight(vec3(-eye.xy, eye.z), vec3(-ray.xy, ray.z), res.x, time, lightHeight - 0.2);

    color += addLight(vec3(-eye.yx, eye.z), vec3(-ray.yx, ray.z), res.x, time, lightHeight);

#if BLACK_AND_WHITE

    float c = clamp(dot(vec3(0.4, 0.3, 0.4), color), 0.0, 1.0);

    c = 1.0 - pow(1.0 - pow(c, 2.0), 4.0);

    color = vec3(c);

#endif



    fragColor = vec4(color, 1.0);

}

void main () {

 cc_nativeSize = vec2(450., 512);



 mainImage(gl_FragColor, v_uv0.xy*cc_nativeSize.xy);

}

}%

[111650 (店小二)]

编辑器纹理拖一张大一点的图进去就行了

[111650 (店小二)]

你发代码前用

（代码）

[lfg1022 (萝卜)]

选中资源把Packabel勾选去掉就可以了应该

[594896080 (AK鹤47)]

关闭动态合图
在游戏开始时，添加 cc.dynamicAtlasManager.enabled = false;

[772100606 (不求上进)]

orz，关闭动态合图就ok了

[1185800419 (已注销)]

妙啊，这个问题我的小号里提到很多次了。
