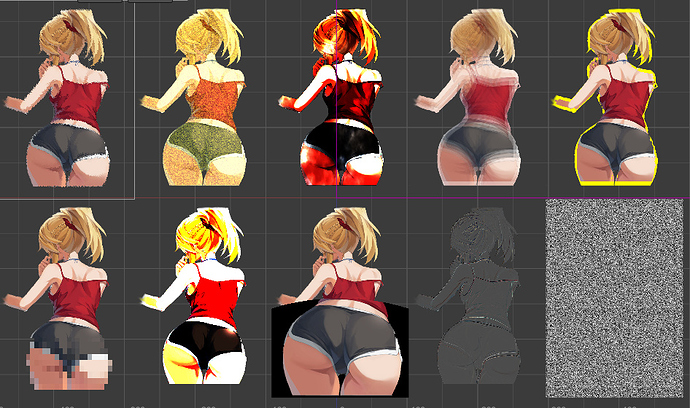

放下图，这都是几个闲着没事从网上搜罗的奇奇怪怪的效果。
// Copyright (c) 2017-2018 Xiamen Yaji Software Co., Ltd.
CCEffect %{
techniques:
- passes:
- vert: vs
frag: fs
blendState:
targets:
- blend: true
rasterizerState:
cullMode: none
properties:
texture: { value: white }
texture2: { value: white }
u_time: {value: 1}
u_mouse: {value: [1.0, 1.0]}
}%
CCProgram vs %{
precision highp float;
#include <cc-global>
#include <cc-local>
attribute vec3 a_position;
attribute lowp vec4 a_color;
attribute mediump vec2 a_uv0;
varying mediump vec2 v_uv0;
varying lowp vec4 v_color;
varying lowp vec4 v_wp;
void main () {
mat4 mvp;
mvp = cc_matViewProj;
v_color = a_color;
gl_Position = mvp * vec4(a_position, 1);
v_wp = cc_matWorld * vec4(a_position, 1);
v_uv0 = a_uv0;
}
}%
CCProgram fs %{
precision mediump float;
uniform sampler2D texture;
uniform sampler2D texture2;
uniform Constants1 {
vec2 u_mouse;
float u_time;
};
varying mediump vec2 v_uv0;
varying lowp vec4 v_color;
varying lowp vec4 v_wp;
#define resolution vec2(960.,640.)
#define u_resolution resolution
#define time u_time
#define iResolution resolution
#define iTime time
#define fragColor gl_FragColor
#define fragCoord gl_FragCoord
#define iMouse u_mouse
#define PI 3.14159265358979323846
#define MYUV vec2 uv = vec2(1. - v_uv0.x,v_uv0.y);vec2 st = uv;
// Precision-adjusted variations of https://www.shadertoy.com/view/4djSRW
#define NOISE fbm
#define NUM_NOISE_OCTAVES 5
float hash(float p) { p = fract(p * 0.011); p *= p + 7.5; p *= p + p; return fract(p); }
float hash(vec2 p) {vec3 p3 = fract(vec3(p.xyx) * 0.13); p3 += dot(p3, p3.yzx + 3.333); return fract((p3.x + p3.y) * p3.z); }
float noise(float x) {
float i = floor(x);
float f = fract(x);
float u = f * f * (3.0 - 2.0 * f);
return mix(hash(i), hash(i + 1.0), u);
}
float noise(vec2 x) {
vec2 i = floor(x);
vec2 f = fract(x);
// Four corners in 2D of a tile
float a = hash(i);
float b = hash(i + vec2(1.0, 0.0));
float c = hash(i + vec2(0.0, 1.0));
float d = hash(i + vec2(1.0, 1.0));
// Simple 2D lerp using smoothstep envelope between the values.
// return vec3(mix(mix(a, b, smoothstep(0.0, 1.0, f.x)),
// mix(c, d, smoothstep(0.0, 1.0, f.x)),
// smoothstep(0.0, 1.0, f.y)));
// Same code, with the clamps in smoothstep and common subexpressions
// optimized away.
vec2 u = f * f * (3.0 - 2.0 * f);
return mix(a, b, u.x) + (c - a) * u.y * (1.0 - u.x) + (d - b) * u.x * u.y;
}
float noise(vec3 x) {
const vec3 step = vec3(110, 241, 171);
vec3 i = floor(x);
vec3 f = fract(x);
// For performance, compute the base input to a 1D hash from the integer part of the argument and the
// incremental change to the 1D based on the 3D -> 1D wrapping
float n = dot(i, step);
vec3 u = f * f * (3.0 - 2.0 * f);
return mix(mix(mix( hash(n + dot(step, vec3(0, 0, 0))), hash(n + dot(step, vec3(1, 0, 0))), u.x),
mix( hash(n + dot(step, vec3(0, 1, 0))), hash(n + dot(step, vec3(1, 1, 0))), u.x), u.y),
mix(mix( hash(n + dot(step, vec3(0, 0, 1))), hash(n + dot(step, vec3(1, 0, 1))), u.x),
mix( hash(n + dot(step, vec3(0, 1, 1))), hash(n + dot(step, vec3(1, 1, 1))), u.x), u.y), u.z);
}
float fbm(float x) {
float v = 0.0;
float a = 0.5;
float shift = float(100);
for (int i = 0; i < NUM_NOISE_OCTAVES; ++i) {
v += a * noise(x);
x = x * 2.0 + shift;
a *= 0.5;
}
return v;
}
float fbm(vec2 x) {
float v = 0.0;
float a = 0.5;
vec2 shift = vec2(100);
// Rotate to reduce axial bias
mat2 rot = mat2(cos(0.5), sin(0.5), -sin(0.5), cos(0.50));
for (int i = 0; i < NUM_NOISE_OCTAVES; ++i) {
v += a * noise(x);
x = rot * x * 2.0 + shift;
a *= 0.5;
}
return v;
}
float fbm(vec3 x) {
float v = 0.0;
float a = 0.5;
vec3 shift = vec3(100);
for (int i = 0; i < NUM_NOISE_OCTAVES; ++i) {
v += a * noise(x);
x = x * 2.0 + shift;
a *= 0.5;
}
return v;
}
void main() {
MYUV;
vec3 color = vec3(0.0);
vec4 tex = texture2D(texture,uv);
float ffbm = fbm(st*3.0+fbm(st*3.+fbm(st*3.)));
float noiseval = noise(uv * 500.);
vec3 colorhuang = vec3(1.,1.,0.);
#if EFFECT1
color = vec3(1.0);
#elif EFFECT2
float off = .02 * (noiseval * .5 - 0.5);
float mul = 0.2;
color += texture2D(texture,uv + vec2(off,off)).xyz * mul;
color += texture2D(texture,uv + vec2(-off,off)).xyz * mul;
color += texture2D(texture,uv + vec2(off,-off)).xyz * mul;
color += texture2D(texture,uv + vec2(-off,-off)).xyz * mul;
color += texture2D(texture,uv + vec2(0.,0.)).xyz * mul;
color = texture2D(texture,uv + vec2(off)).xyz;
tex.a = texture2D(texture,uv + vec2(off)).a;
//tex.a = 1.;
#elif EFFECT3
noiseval = noise(uv * 400.);
color += tex.xyz;
color += vec3(noiseval) * vec3(1.,1.,.0) * .5;
#elif EFFECT4
noiseval = fbm(uv * 8.);
color += tex.xyz;
color *= tex.a;
color = mix(color, vec3(noiseval),noiseval);
color = pow(color * 10., vec3(10.)) * 0.00000001;
#elif EFFECT5
float off = .02;
float mul = 0.2;
color += texture2D(texture,uv + vec2(off,off)).xyz * mul;
color += texture2D(texture,uv + vec2(-off,off)).xyz * mul;
color += texture2D(texture,uv + vec2(off,-off)).xyz * mul;
color += texture2D(texture,uv + vec2(-off,-off)).xyz * mul;
color += texture2D(texture,uv + vec2(0.,0.)).xyz * mul;
#elif EFFECT6
float sum = 0.;
float off = 0.02;
sum += texture2D(texture,uv + vec2(off,off)).a;
sum += texture2D(texture,uv + vec2(-off,off)).a;
sum += texture2D(texture,uv + vec2(off,-off)).a;
sum += texture2D(texture,uv + vec2(-off,-off)).a;
sum += texture2D(texture,uv + vec2(0.,0.)).a;
float checkf = 3.5;
float n = smoothstep(.3,checkf * .5,sum) - smoothstep(checkf * .5,checkf,sum);
n = step(.1,n);
color = mix(colorhuang,tex.xyz,1. - n);
#elif EFFECT7
vec2 uv7 = uv * 10000.;
uv7 = uv7 - mod(uv7,300.);
uv7 *= 0.0001;
tex = texture2D(texture,uv7);
color = tex.xyz;
float p = step(uv.y,0.7);
color = mix(color,texture2D(texture,uv).xyz,p);
tex.a = mix(tex.a,texture2D(texture,uv).a,p);
#elif EFFECT8
color = tex.xyz;
color = pow(color * 2.6,vec3(10.));
color *= 0.2;
#elif EFFECT9
float n = 960./640.;
n = 591./200.;
color = tex.xyz;
vec2 p = vec2(0.5,0.8);
float r = 0.3;
vec2 off = uv - p;
//off.x /= n;
float d = length(vec2(off.x/n,off.y));
d = step(d,r);
vec2 uv9 = p + off * 0.7;
vec4 tex9 = texture2D(texture,uv9);
color = tex9.xyz * tex9.a;
tex.a = max(tex.a, d );
color = mix( texture2D(texture,uv).xyz, color, d );
//tex.a = 1.;
#elif EFFECT10
color = tex.xyz;
color -= texture2D(texture,uv - 0.001).xyz;
color += .3;
#elif EFFECT11
color = vec3(noiseval);
tex.a = 1.;
#elif EFFECT12
#elif EFFECT13
#elif EFFECT14
#elif EFFECT15
#elif EFFECT16
#elif EFFECT17
#elif EFFECT18
#else
color = vec3(.6);
#endif
gl_FragColor = vec4(color,tex.a);
}
}%
要周末了，偷下懒，有兴趣的自己试一下吧，有问题回头再聊。

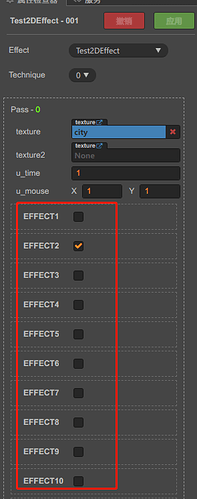

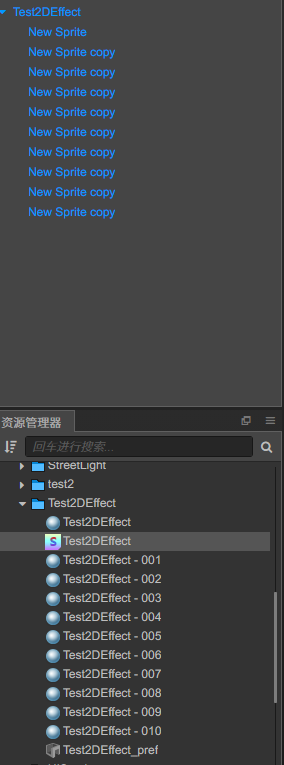

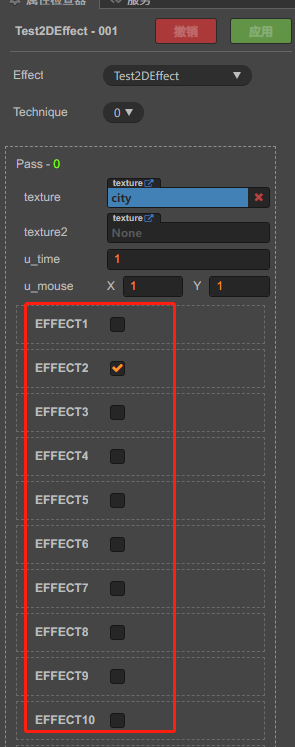

一个图对一个材质，不同材质就是勾选的宏不一样，自己搞起来试试吧，都是挺简单的。
不懂原理的基本都可以看对应效果去百度到。都很简单的东西，造型都不需要的。
应该前9个宏都有意义的。老库存了，比较鸡肋，只能练手用的。
