engine/core/renderer/webgl/sprite/simple.js改造
const vfmtPosUvColor = require('../../vertex-format').vfmtPosUvColor;
fillBuffers: function (sprite, renderer) {
var data = sprite._renderData._data,
node = sprite.node,
matrix = node._worldMatrix,
a = matrix.m00,
b = matrix.m01,
c = matrix.m04,
d = matrix.m05,
tx = matrix.m12,
ty = matrix.m13;
var buffer = renderer.getBuffer('quad', vfmtPosUvColor),
// var buffer = renderer._quadBuffer,
vertexOffset = buffer.byteOffset >> 2;
buffer.request(4, 6);
// buffer data may be realloc, need get reference after request.
var vbuf = buffer._vData;
// get uv from sprite frame directly
var uv = sprite._spriteFrame.uv;
vbuf[vertexOffset + 2] = uv[0];
vbuf[vertexOffset + 3] = uv[1];
vbuf[vertexOffset + 7] = uv[2];
vbuf[vertexOffset + 8] = uv[3];
vbuf[vertexOffset + 12] = uv[4];
vbuf[vertexOffset + 13] = uv[5];
vbuf[vertexOffset + 17] = uv[6];
vbuf[vertexOffset + 18] = uv[7];
var data0 = data[0],
data3 = data[3],
vl = data0.x,
vr = data3.x,
vb = data0.y,
vt = data3.y;
var al = a * vl,
ar = a * vr,
bl = b * vl,
br = b * vr,
cb = c * vb,
ct = c * vt,
db = d * vb,
dt = d * vt;
// left bottom
vbuf[vertexOffset + 0] = al + cb + tx;
vbuf[vertexOffset + 1] = bl + db + ty;
// right bottom
vbuf[vertexOffset + 5] = ar + cb + tx;
vbuf[vertexOffset + 6] = br + db + ty;
// left top
vbuf[vertexOffset + 10] = al + ct + tx;
vbuf[vertexOffset + 11] = bl + dt + ty;
// right top
vbuf[vertexOffset + 15] = ar + ct + tx;
vbuf[vertexOffset + 16] = br + dt + ty;
// color
var val = node.color._val;
var ibuf = buffer._uintVData;
ibuf[vertexOffset + 4] = val;
ibuf[vertexOffset + 9] = val;
ibuf[vertexOffset + 14] = val;
ibuf[vertexOffset + 19] = val;
}
改造engine\cocos2d\core\components\CCSprite.js
_activateMaterial: function () {
let spriteFrame = this._spriteFrame;
// WebGL
if (cc.game.renderType !== cc.game.RENDER_TYPE_CANVAS) {
// Get material
let material;
if (this._state === State.GRAY) {
if (!this._graySpriteMaterial) {
this._graySpriteMaterial = new GraySpriteMaterial();
}
material = this._graySpriteMaterial;
}
else {
if (!this._spriteMaterial) {
this._spriteMaterial = new SpriteMaterial();
}
material = this._spriteMaterial;
}
material._mainTech._parameters = [{ name: 'texture', type: 13 }]; // 不要color属性，避免不同颜色material的hash值不同导致不能合批，cc.renderer.renderEngine.renderer.PARAM_TEXTURE_2D的值就是13
material._effect.define('useColor', false); // 不使用片段着色器的的color字段，开启顶点着色器的a_color
// Set texture
if (spriteFrame && spriteFrame.textureLoaded()) {
let texture = spriteFrame.getTexture();
if (material.texture !== texture) {
material.texture = texture;
this._updateMaterial(material);
}
else if (material !== this._material) {
this._updateMaterial(material);
}
if (this._renderData) {
this._renderData.material = material;
}
this.node._renderFlag |= RenderFlow.FLAG_COLOR;
this.markForUpdateRenderData(true);
this.markForRender(true);
}
else {
this.disableRender();
}
}
else {
this.markForUpdateRenderData(true);
this.markForRender(true);
}
}
然后再对引擎进行重新编译即可。

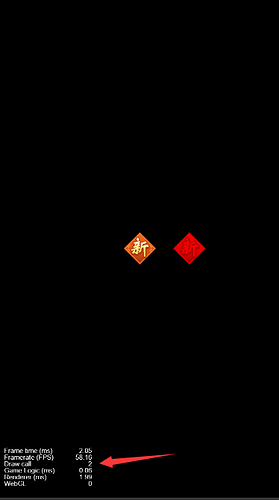

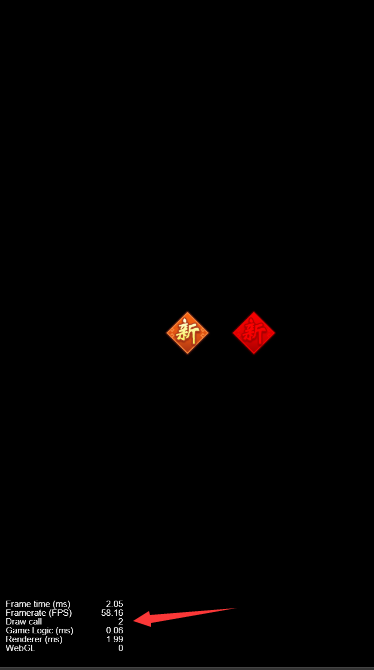

改造前

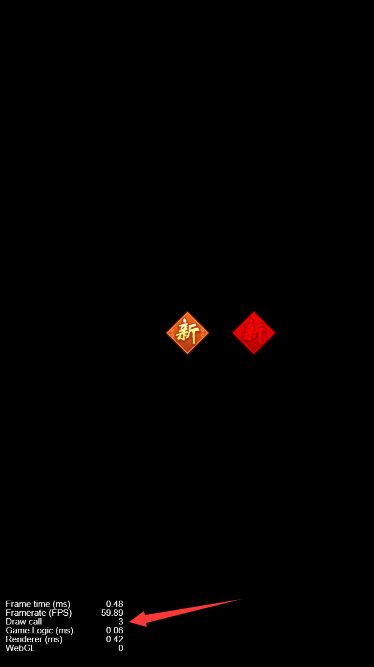

改造后

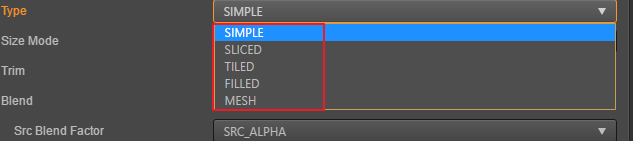

这只是对普通的sprite进行了修改，即Type为Simple的渲染策略进行了修改
如果要完整覆盖还需要修改sliced.js、tiled.js等，如果项目的Sprite的Type属性都是simple那就按照上面的方式改就行了。
注意：
- 上面的修改方式仅仅是在浏览器上进行了简单测试。
- 实验引擎版本为2.0.5
