CCEffect %{
techniques:
- name: opaque
passes:
- vert: unlit-vs:vert
frag: unlit-fs:frag
properties: &props
Wind: { value: [1, 1, 0, 0] }
WindEdgeFlutter: { value: [0.5, 0.5] }
mainTexture: { value: grey }
alphaTexture: { value: grey }
- name: transparent
passes:
- vert: unlit-vs:vert
frag: unlit-fs:frag
rasterizerState: &r1 { cullMode: none }
depthStencilState: &d1 { depthTest: true, depthWrite: false }
blendState:
targets:
- blend: true
blendSrc: src_alpha
blendDst: one_minus_src_alpha
blendSrcAlpha: src_alpha
blendDstAlpha: one_minus_src_alpha
properties: *props
}%
CCProgram unlit-vs %{
precision mediump float;
#include <cc-global>
#include <cc-local-batch>
#include <input>
in vec4 a_color;
out vec4 v_color;
in vec3 a_normal;
in vec2 a_texCoord;
out vec2 v_uv;
uniform TexCoords {
vec4 Wind;
vec2 WindEdgeFlutter;
};
vec4 SmoothTriangleWave(vec4 x) {
vec4 curve = abs(fract(x + 0.5) * 2.0 - 1.0);
return curve * curve * (3.0 - 2.0 * curve);
}
vec4 AnimateVertex2(vec4 pos, vec3 normal, vec4 animParams, vec4 wind, vec2 time, mat4 matWorldIT) {
float fDetailAmp = 0.3;
float fBranchAmp = 0.9;
float fObjPhase = dot((matWorldIT[2].xyz), vec3(1,1,1));
float fBranchPhase = fObjPhase + animParams.x;
float fVtxPhaseTV = animParams.y + fBranchPhase;
float fVtxPhase = dot(normalize(pos.xyz), vec3(fVtxPhaseTV, fVtxPhaseTV, fVtxPhaseTV));
vec2 vWavesIn = time + vec2(fVtxPhase, fBranchPhase);
vec4 vWaves = (fract( vWavesIn.xxyy * vec4(1.975, 0.793, 0.375, 0.193) ) * 2.0 - 1.0);
vWaves = SmoothTriangleWave(vWaves);
vec2 vWavesSum = vWaves.xz + vWaves.yw;
vec3 bend = animParams.y * fDetailAmp * normal.xyz;
bend.y = animParams.w * fBranchAmp;
pos.xyz += ((vWavesSum.xyx * bend) + (wind.xyz * vWavesSum.y * animParams.w)) * wind.w;
pos.xyz += animParams.z * wind.xyz;
return pos;
}
highp vec4 vert () {
vec4 position;
CCVertInput(position);
highp mat4 matWorld;
highp mat4 matWorldIT;
CCGetWorldMatrixFull(matWorld, matWorldIT);
//mat4 pre_pos = cc_matProj * (cc_matView * matWorld);
highp vec4 pos = position;
vec4 wind;
float bendingFact = a_color.a;
wind = matWorldIT * Wind;
wind.w = Wind.w * bendingFact / 3.;
vec4 windParams = vec4(0, WindEdgeFlutter.x, bendingFact, bendingFact);
vec2 windTime = cc_time.x * vec2(WindEdgeFlutter.y, 3.);
vec4 mdlPos = AnimateVertex2(pos, a_normal, windParams, wind, windTime, matWorld);
v_uv = a_texCoord;
#if FLIP_UV
v_uv.y = 1.0 - v_uv.y;
#endif
v_color = a_color;
return cc_matProj * cc_matView * matWorld * mdlPos;
}
}%
CCProgram unlit-fs %{
precision mediump float;
#include <output>
in vec2 v_uv;
uniform sampler2D mainTexture;
uniform sampler2D alphaTexture;
in vec4 v_color;
vec4 frag () {
vec4 o = texture(mainTexture, v_uv);
o *= v_color;
o.a = texture(alphaTexture, v_uv).b;
return CCFragOutput(o);
}
}%
飘旗.zip (333.8 KB)
参数设置

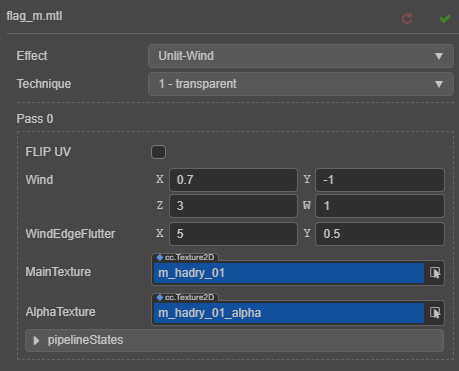

旗帜的参数

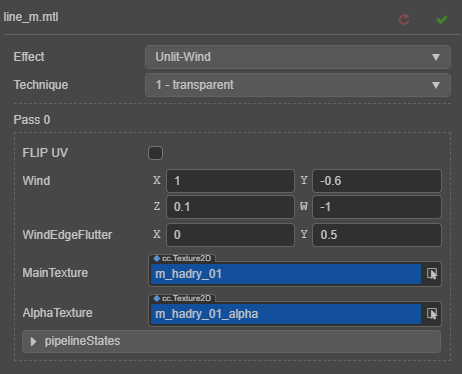

绳索的参数
使用办法：
- 在项目资源里创建一个Effect文件，然后把上面的的shader代码全放进去
- 再创建一个Material文件，然后选中Material文件，在右边属性栏处，Effect选择第1步创建的Effect
- 再把贴图拉进MainTexture里面。其它参数可以自行修改试试，会出现不同的效果。
- 最后再把这个材质拉到你的对象材质上。

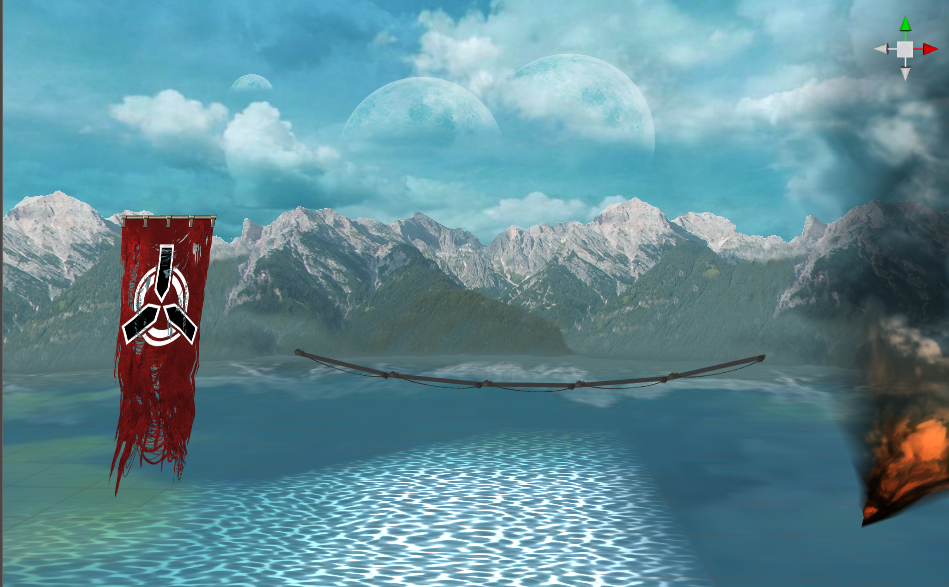

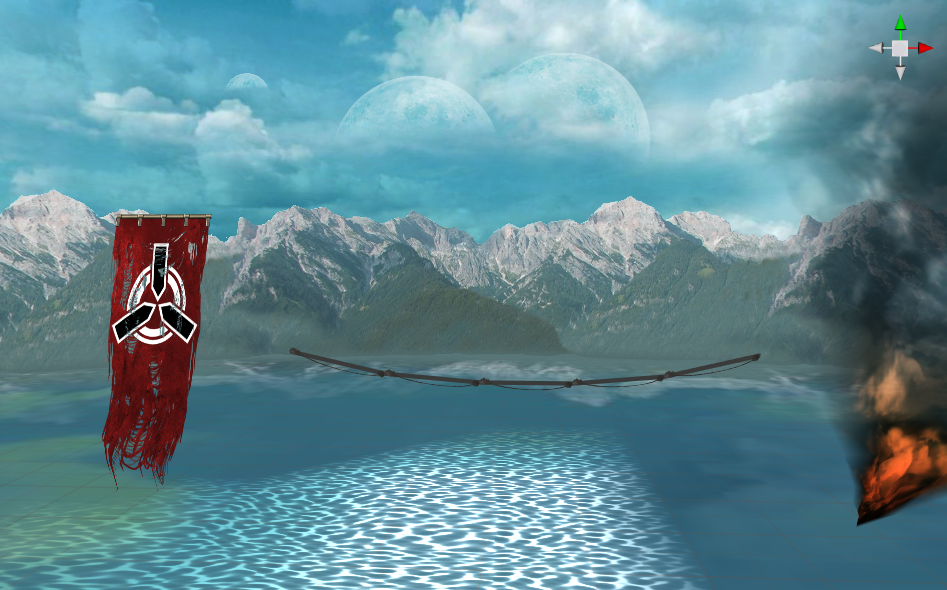

这个是个用shader代替模型动画或粒子动画的效果，简单而且直接地节省渲染资源的浪费。
