Creator 版本： 3.4
-
目标平台： google浏览器

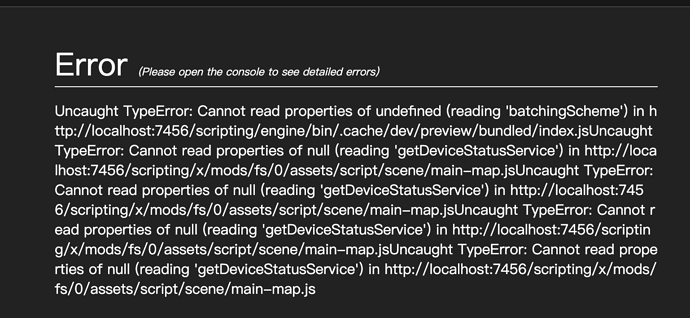

fbx的3D模型开启阴影设置后就会报错
有大佬能看出是什么问题嘛？

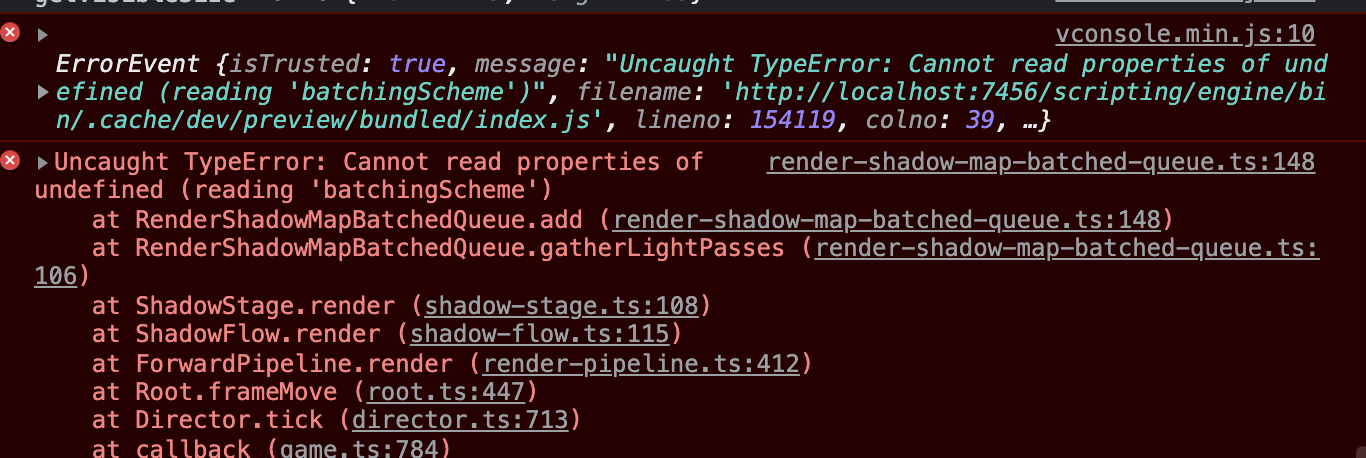

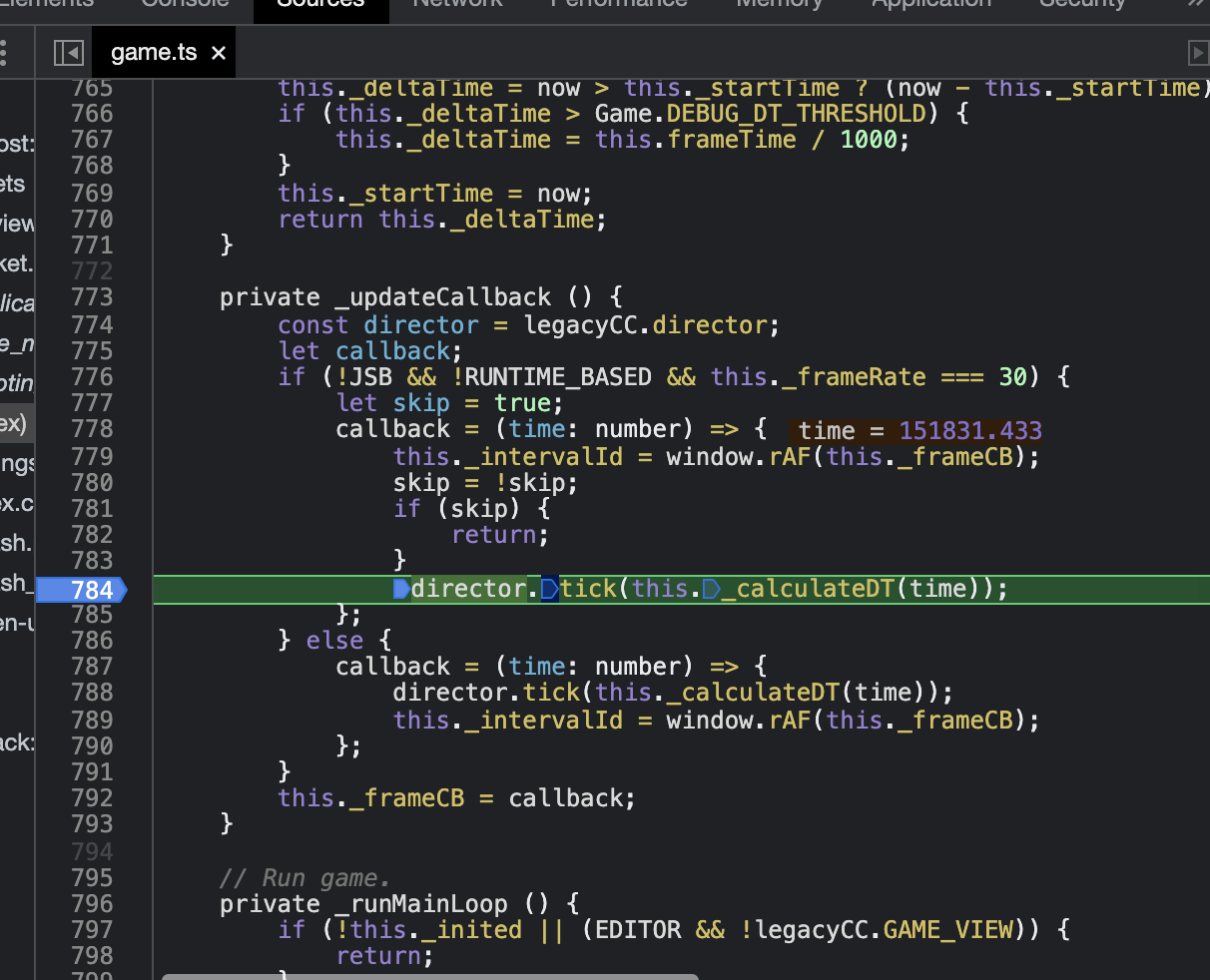

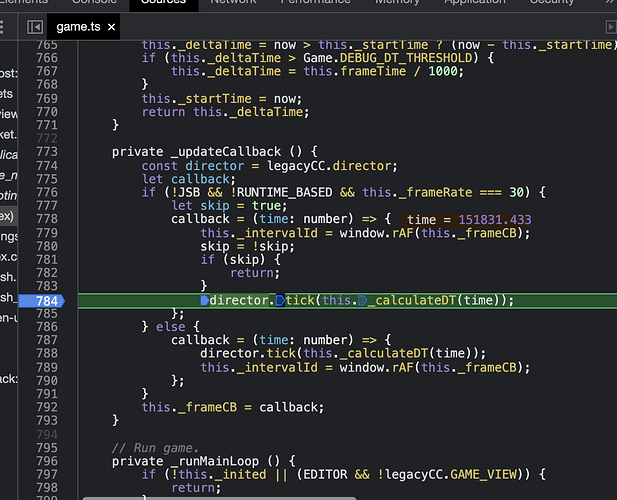

打开devTools，看一下有什么其它报错

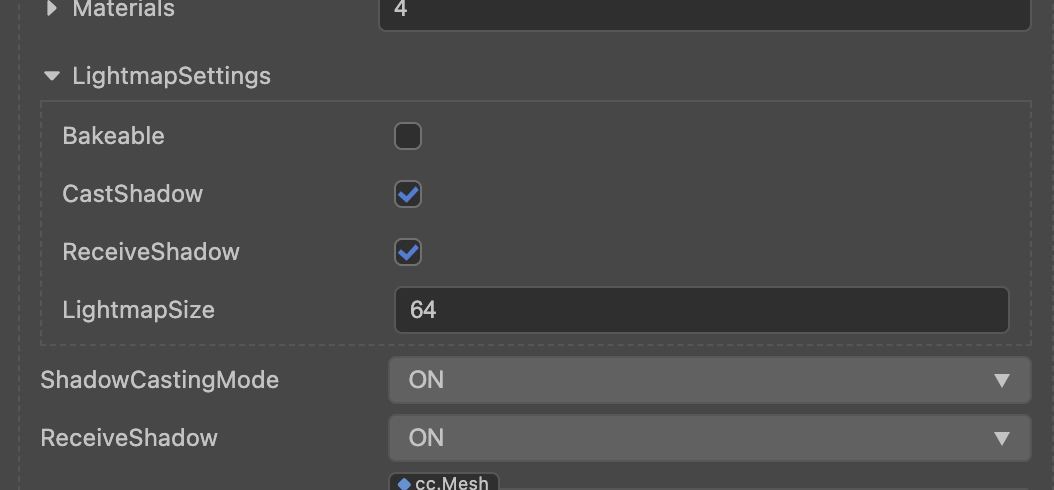

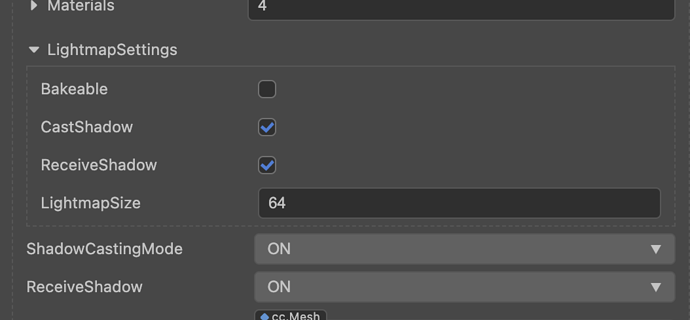

我关掉shadowcastMode就不会报这个错
原因是自定义的effect 不能使用阴影，不过没能解决，请问是哪里的问题？
// Effect Syntax Guide: https://github.com/cocos-creator/docs-3d/blob/master/zh/material-system/effect-syntax.md
CCEffect %{
techniques:
- name: opaque
passes:
- vert: unlit-vs:vert # builtin header
frag: unlit-fs:frag
properties: &props
mainTexture: { value: black }
mainColor: { value: [0, 0, 0, 1], editor: { type: color } }
# blendState:
# targets:
# - blend: true
# blendSrc: src_alpha
# blendDst: one_minus_src_alpha
# blendSrcAlpha: src_alpha
# blendDstAlpha: one_minus_src_alpha
}%
CCProgram unlit-vs %{
precision highp float;
#include <input-standard>
#include <cc-global>
#include <cc-local-batch>
#include <input-standard>
#include <cc-fog-vs>
#include <cc-shadow-map-vs>
in vec4 a_color;
#if HAS_SECOND_UV
in vec2 a_texCoord1;
#endif
#if USE_INSTANCING
in float blinkFp;
in vec4 instanced_color;
#endif
out vec3 v_position;
out vec3 v_normal;
out vec3 v_tangent;
out vec3 v_bitangent;
out vec2 v_uv;
out vec2 v_uv1;
out vec4 v_color;
out float blinkTransparency;
vec4 vert () {
StandardVertInput In;
CCVertInput(In);
mat4 matWorld, matWorldIT;
CCGetWorldMatrixFull(matWorld, matWorldIT);
vec4 pos = matWorld * In.position;
v_position = pos.xyz;
v_normal = normalize((matWorldIT * vec4(In.normal, 0.0)).xyz);
v_tangent = normalize((matWorld * vec4(In.tangent.xyz, 0.0)).xyz);
v_bitangent = cross(v_normal, v_tangent) * In.tangent.w; // note the cross order
v_uv = a_texCoord;
#if HAS_SECOND_UV
v_uv1 = a_texCoord1;
#endif
v_color = a_color;
#if USE_INSTANCING
v_color = instanced_color;
#endif
// CC_TRANSFER_FOG(pos);
// CC_TRANSFER_SHADOW(pos);
// if(blinkFp > 0.0)
// blinkTransparency = abs(1.0 - mod(cc_time.x, blinkFp * 2.0)/blinkFp);
// else blinkTransparency = 1.0;
return cc_matProj * (cc_matView * matWorld) * In.position;
}
}%
CCProgram unlit-fs %{
precision highp float;
#include <output>
#include <cc-fog-fs>
in vec2 v_uv;
#if USE_INSTANCING
in vec4 v_color;
#endif
in float blinkTransparency;
uniform sampler2D mainTexture;
uniform Constant {
vec4 mainColor;
};
vec4 frag () {
vec4 col = mainColor;
#if USE_INSTANCING
col = v_color;
#endif
// CC_APPLY_FOG(col);
return CCFragOutput(col);
}
}%你好，需要你这边提供一下项目。我们这边看看
