cocos creator h5 渲染
废话不多说，我们直接看主循环部分
//director.ts
/**
* @en Run main loop of director
* @zh 运行主循环
*/
public tick (dt: number) {
if (!this._invalid) {
this.emit(Director.EVENT_BEGIN_FRAME);
if (!EDITOR) {
// @ts-expect-error _frameDispatchEvents is a private method.
input._frameDispatchEvents();
}
// Update
if (!this._paused) {
this.emit(Director.EVENT_BEFORE_UPDATE);
// Call start for new added components
this._compScheduler.startPhase();
// Update for components
this._compScheduler.updatePhase(dt);
// Update systems
for (let i = 0; i < this._systems.length; ++i) {
this._systems[i].update(dt);
}
// Late update for components
this._compScheduler.lateUpdatePhase(dt);
// User can use this event to do things after update
this.emit(Director.EVENT_AFTER_UPDATE);
// Destroy entities that have been removed recently
CCObject._deferredDestroy();
// Post update systems
for (let i = 0; i < this._systems.length; ++i) {
this._systems[i].postUpdate(dt);
}
}
this.emit(Director.EVENT_BEFORE_DRAW);
this._root!.frameMove(dt);
this.emit(Director.EVENT_AFTER_DRAW);
Node.resetHasChangedFlags();
Node.clearNodeArray();
containerManager.update(dt);
this.emit(Director.EVENT_END_FRAME);
this._totalFrames++;
}
}
通过上面的代码我们可以看到 EVENT_BEFORE_DRAW 和 EVENT_AFTER_DRAW 之间只有一行代码，所以这里就是绘制的入口了。
//root.ts
/**
* @zh
* 每帧执行函数
* @param deltaTime 间隔时间
*/
public frameMove (deltaTime: number) {
this._setFrameTime(deltaTime);
++this._frameCount;
this._setCumulativeTime(deltaTime);
this._fpsTime += deltaTime;
if (this._fpsTime > 1.0) {
this._fps = this._frameCount;
this._frameCount = 0;
this._fpsTime = 0.0;
}
//
for (let i = 0; i < this._scenes.length; ++i) {
this._scenes[i].removeBatches();
}
const windows = this._windows;
const cameraList: Camera[] = [];
//收集摄像机，所以从这里开始这一帧的绘制
for (let i = 0; i < windows.length; i++) {
const window = windows[i];
window.extractRenderCameras(cameraList);
}
if (this._pipeline && cameraList.length > 0) {
this._device.acquire([legacyCC.game._swapchain]);
const scenes = this._scenes;
const stamp = legacyCC.director.getTotalFrames();
//_batcher的类型是Batcher2D，Batcher2D是负责更新canvas下ui组件的渲染数据
if (this._batcher) {
this._batcher.update();
this._batcher.uploadBuffers();
}
for (let i = 0; i < scenes.length; i++) {
//更新3D渲染数据
scenes[i].update(stamp);
}
legacyCC.director.emit(legacyCC.Director.EVENT_BEFORE_COMMIT);
cameraList.sort((a: Camera, b: Camera) => a.priority - b.priority);
//渲染管线执行渲染
this._pipeline.render(cameraList);
this._device.present();
}
if (this._batcher) this._batcher.reset();
}
//batcher-2d.ts
public update () {
const screens = this._screens;
let offset = 0;
for (let i = 0; i < screens.length; ++i) {
const screen = screens[i];
const scene = screen._getRenderScene();
if (!screen.enabledInHierarchy || !scene) {
continue;
}
// Reset state and walk
this._opacityDirty = 0;
this._pOpacity = 1;
//这个walk很明显在递归更新ui渲染数据
this.walk(screen.node);
this.autoMergeBatches(this._currComponent!);
this.resetRenderStates();
let batchPriority = 0;
if (this._batches.length > offset) {
for (; offset < this._batches.length; ++offset) {
const batch = this._batches.array[offset];
if (batch.model) {
const subModels = batch.model.subModels;
for (let j = 0; j < subModels.length; j++) {
subModels[j].priority = batchPriority++;
}
} else {
batch.descriptorSet = this._descriptorSetCache.getDescriptorSet(batch);
}
//在这里将ui的渲染合批对象提交给renderscene
scene.addBatch(batch);
}
}
}
}
整个update方法做的就是 更新ui渲染数据并合批、将合批逐个提交给renderscene，接下来再搞明白 walk方法是怎么更新渲染数据的并合批的，以及 this._batches 的数据是怎么来的就可以了。
//batcher-2d.ts
public walk (node: Node, level = 0) {
//将当前组件置脏
...
// Render assembler update logic
if (render && render.enabledInHierarchy) {
render.updateAssembler(this);
}
...
//递归走完所有节点
}
//renderable-2d.ts
public updateAssembler (render: IBatcher) {
if (this._renderDataFlag) {
//更新RenderData（顶点，材质，纹理，Assembler）
this._assembler!.updateRenderData(this, render);
this._renderDataFlag = false;
}
if (this._renderFlag) {
//调用 batcher.commitComp方法向renderscene提交渲染批次
this._render(render);
}
}

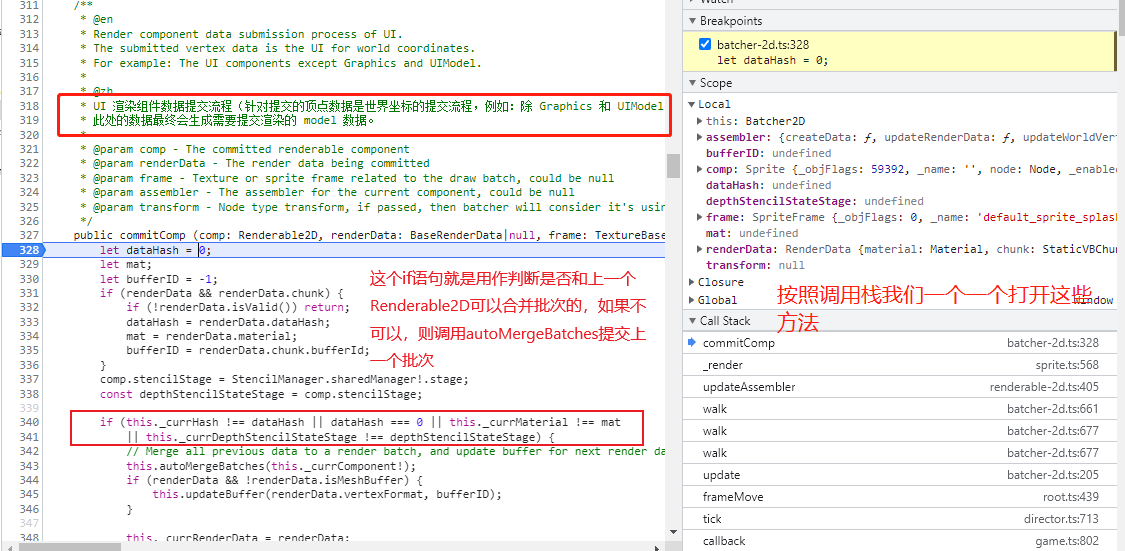

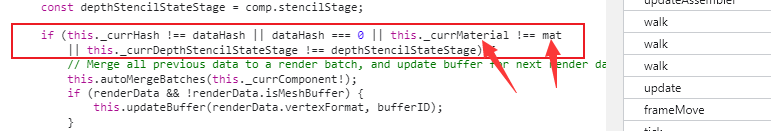

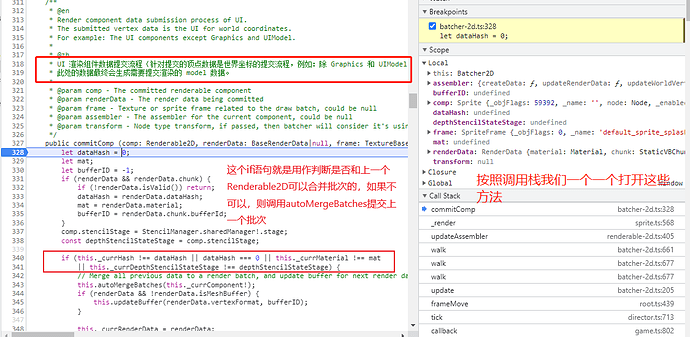

//batcher-2d.ts
/**
* @en
* End a section of render data and submit according to the batch condition.
*
* @zh
* 根据合批条件，结束一段渲染数据并提交。
*/
public autoMergeBatches (renderComp?: Renderable2D) {
const mat = this._currMaterial;
if (!mat) {
return;
}
let ia;
const rd = this._currRenderData as MeshRenderData;
const accessor = this._staticVBBuffer;
// Previous batch using mesh buffer
if (rd && rd.isMeshBuffer) {
ia = rd.requestIA(this.device);
if (this._meshDataArray.indexOf(rd) === -1) {
this._meshDataArray.push(rd);
}
} else if (accessor) {
// Previous batch using static vb buffer
const bid = this._currBID;
const buf = accessor.getMeshBuffer(bid);
if (!buf) {
return;
}
const indexCount = buf.indexOffset - this._indexStart;
if (indexCount <= 0) return;
assertIsTrue(this._indexStart < buf.indexOffset);
buf.setDirty();
// Request ia
ia = buf.requireFreeIA(this.device);
ia.firstIndex = this._indexStart;
ia.indexCount = indexCount;
// Update index tracker and bid
this._indexStart = buf.indexOffset;
}
this._currBID = -1;
// Request ia failed
if (!ia) {
return;
}
let blendState;
let depthStencil;
let dssHash = 0;
let bsHash = 0;
if (renderComp) {
blendState = renderComp.blendHash === -1 ? null : renderComp.getBlendState();
bsHash = renderComp.blendHash;
if (renderComp.customMaterial !== null) {
depthStencil = StencilManager.sharedManager!.getStencilStage(renderComp.stencilStage, mat);
} else {
depthStencil = StencilManager.sharedManager!.getStencilStage(renderComp.stencilStage);
}
dssHash = StencilManager.sharedManager!.getStencilHash(renderComp.stencilStage);
}
const curDrawBatch = this._currStaticRoot ? this._currStaticRoot._requireDrawBatch() : this._drawBatchPool.alloc();
curDrawBatch.visFlags = this._currLayer;
curDrawBatch.texture = this._currTexture!;
curDrawBatch.sampler = this._currSampler;
curDrawBatch.inputAssembler = ia;
curDrawBatch.useLocalData = this._currTransform;
curDrawBatch.textureHash = this._currTextureHash;
curDrawBatch.samplerHash = this._currSamplerHash;
curDrawBatch.fillPasses(mat, depthStencil, dssHash, blendState, bsHash, null, this);
//拿到了一次合批，walk所有节点后就得到了所有2d渲染组件的合批，update方法在最后会把合批提交给renderscene
this._batches.push(curDrawBatch);
}
到这里所有的2d渲染批次就都提交给renderscene，下面要将3d的渲染批次也提交给renderscene ————renderscene.update()。
//render-scene.ts
public update (stamp: number) {
...
//我们就先搞明白这些 model是怎么来的
const models = this._models;
for (let i = 0; i < models.length; i++) {
const model = models[i];
if (model.enabled) {
model.updateTransform(stamp);
model.updateUBOs(stamp);
}
}
}
...
//当3d物体添加到场景中，model就会相应的添加到renderscene中
public addModel (m: Model) {
m.attachToScene(this);
this._models.push(m);
if (JSB) {
switch (m.type) {
case ModelType.SKINNING:
this._nativeObj!.addSkinningModel(m.native);
break;
case ModelType.BAKED_SKINNING:
this._nativeObj!.addBakedSkinningModel(m.native);
break;
case ModelType.DEFAULT:
default:
this._nativeObj!.addModel(m.native);
}
}
}
renderscene更新完毕后,root.update() 最后会调用 this._pipeline.render(cameraList);
cocos目前提供了两种渲染管线————延迟渲染管线和前向渲染管线，我们选择其中一种看看它是怎么实现的。
渲染管线会把任务派给渲染流，渲染流又把任务派给渲染阶段，渲染阶段将合批后的渲染数据交给commandbuffer，再最后通过commandbuffer调用 WebGL2CmdFuncDraw 方法完成

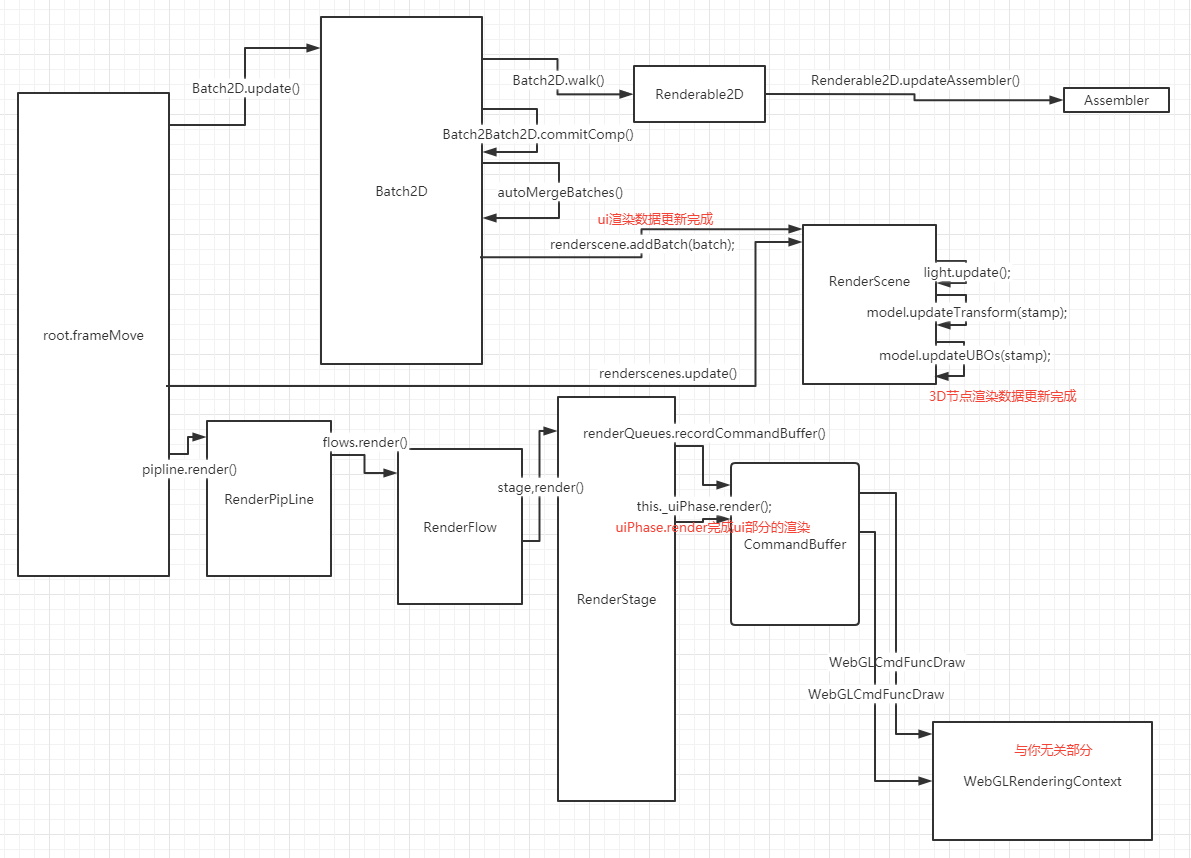

最后附上一张粗糙的时序图
