)之前一直做cocos2d-xlua。最近学习了cocosCreator发现还是有许多坑要踩得。相信很多小伙伴遇到过使用ScrollView的时候，假如items的数量超过很多的时候，会卡顿，性能很差的问题。之前是使用TableView可以只创建当前屏幕显示的那些item,滑动的时候，会动态复用item。极大的节省性能。我把之前quick-cocos社区的lua版本的TableView.lua搞到了typeScript中。使用过后还挺不错的。quick-cocos社区的TableView.lua链接:http://www.cocos2d-lua.org/doc/tableview/index.md。有想参考lua的可以看看。
话不多说直接贴我改成TableView.ts后的代码:
不知道为啥没有上传文件的权限。。。好吧，直接复制代码了
首先这个是TableView.ts脚本组件的代码,使用的时候创建一个ts脚本，直接把代码复制进去。
import { _decorator, CCFloat, CCInteger, Component, instantiate, Node, Prefab, ScrollView, Size, UITransform, Vec2, Vec3 } from ‘cc’;
import { TableViewCell } from ‘./TableViewCell’;
const { ccclass, property } = _decorator;
export let TableViewDirection = { //方向
none : 0,
vertical : 1,
horizontal : 2
};
export let TableViewFuncType = {
cellSize : "_cellSizeAtIndex", //获取cell size,返回width, height
cellNum : "_numberOfCells", //获取cell数量
cellLoad : "_loadCellAtIndex", //加载cell，必须返回一个cell
cellUnload : "_unloadCellAtIndex", //卸载一个cell时触发
eventListener : "_eventListener" //滚动事件
};
export let TableViewFillOrder = {
topToBottom : 1, //达到顶部
bottomToTop : 2, //初始化在底部
leftToRight : 3,
rightToLeft : 4
};
@ccclass(‘TableView’)
export class TableView extends Component {
@property(Node)
innter:Node | null = null;
@property(ScrollView)
scrollView:ScrollView | null = null;
@property(Node)
cloneCell:Node | null = null;
public _isUsedCellsDirty:boolean = false;
public _accountNumber:number = 0; //所有的item总数量
public _cellsPos:number[] = [1]; //记录每个cell的位置
public _cellsUsed:Node[] = [new Node()]; //记录正在使用的cell
public _cellsIndex:any = []; //记录正在使用的cell的index
public _cellsFreed:Node[] = []; //记录当前未使用的cell
public direction:number = TableViewDirection.none;
public fillOrder:number = TableViewFillOrder.topToBottom;
public _size:Size = new Size(0,0); //当前tableVie的大小
public _innerSize:Size = new Size(0,0); //当前content的大小
public _extraFunction:{[key:string]:Function} = {}; //外部函数
public _myDirection:number = 0;
onLoad(){
this.cloneCell!.active = false;
this.setDirection(); //设置方向
}
init(size:Size){
this.initData(size);
this.node!.getComponent(UITransform)!.contentSize = size.clone();
this._updateCellsPosition(); //更新cell位置
this._updateContentSize(); //更新content的大小
}
//滚动
scrolling(scrollView:ScrollView,eventType:any){
if(eventType != ScrollView.EventType.SCROLL_TO_BOTTOM && eventType != ScrollView.EventType.SCROLL_TO_TOP
&& eventType != ScrollView.EventType.SCROLL_TO_LEFT && eventType != ScrollView.EventType.SCROLL_TO_RIGHT){
this._scrollViewDidScroll();
}
}
initData(size:Size){
this._accountNumber = 0; //所有子控件数量
this._size= (size!=undefined) ? size.clone() : new Size(0,0); //当前view的大小
this._innerSize = this._size.clone();
}
registerFunc(type:string,func:Function){
this._extraFunction[type] = func;
}
cellAtIndex(index:number):[Node,number] | undefined{
if(this._cellsIndex[index]){
for(let k:number = 1;k < this._cellsUsed.length;k++){
let v = this._cellsUsed[k].getComponent(TableViewCell)!;
if(v.getIndex() == index){
return [this._cellsUsed[k],k];
}
}
}
return undefined;
}
//刷新数据,: 重新加载
reloadData(){
this._correctFillOrder();
this._accountNumber = this._numberOfCells(); //所有的item总数量
this.direction = TableViewDirection.none;
let cell = this._cellsUsed.splice(1,1)[0];
while(cell){
let tableViewCell = cell.getComponent(TableViewCell)!;
this._unloadCellAtIndex(tableViewCell!.getIndex());
cell.active = false;
this._cellsFreed.push(cell);
tableViewCell!.reset();
cell = this._cellsUsed.splice(1,1)[0];
}
this._cellsUsed = [new Node()];
this._cellsIndex = [];
this._updateCellsPosition(); //得到所有控件的加起来的宽度或者高度
this._updateContentSize(); //得到container总体大小尺寸
if(this._accountNumber > 0){ //如果控件数量大于0
this._scrollViewDidScroll();
}
}
//在尽量不改变位置的情况下重新加载
reloadDataInPos(){
this._correctFillOrder();
this._accountNumber = this._numberOfCells(); //得到数量多少
let baseSize = new Size(this._size.width,this._size.height);
let position = this.innter!.position;
let x = position.x;
let y = position.y;
let beforeSize = new Size(this._innerSize.width,this._innerSize.height);
let cell = this._cellsUsed.splice(1,1)[0];
while(cell){
let tableViewCell = cell.getComponent(TableViewCell)!;
this._unloadCellAtIndex(tableViewCell!.getIndex());
cell.active = false;
this._cellsFreed.push(cell);
tableViewCell!.reset();
cell = this._cellsUsed.splice(1,1)[0];
}
this._cellsUsed = [new Node()];
this._cellsIndex = [];
this._updateCellsPosition();
this._updateContentSize();
let afterSize = new Size(this._innerSize.width,this._innerSize.height);
if(this.fillOrder == TableViewFillOrder.topToBottom){
y = Math.max(Math.min(0, beforeSize.height - afterSize.height + y), baseSize.height - afterSize.height);
}else if(this.fillOrder == TableViewFillOrder.bottomToTop){
y = Math.max(Math.min(0, y), baseSize.height - afterSize.height);
}
if(this.fillOrder == TableViewFillOrder.rightToLeft){
x = Math.max(Math.min(0, beforeSize.width - afterSize.width + x), baseSize.width - afterSize.width);
}else if(this.fillOrder == TableViewFillOrder.leftToRight){
x = Math.max(Math.min(0, x), baseSize.width - afterSize.width);
}
this.innter!.setPosition(new Vec3(x,y,0));
if(this._numberOfCells() > 0){
this._scrollViewDidScroll()
}
}
dequeueCell():Node{
return this._cellsFreed.splice(0,1)[0]!;
}
//设置填充方向
setFillOrder(order:number){
if(this.fillOrder != order){
this.fillOrder = order;
if(this._cellsUsed.length > 1){
this.reloadData();
}
}
}
updateCellAtIndex(index:number){
if(index <=0){
return;
}
let cellsCount = this._accountNumber;
if(cellsCount == 0 || index > cellsCount){
return;
}
let config = this.cellAtIndex(index)!;
let cell:Node;
if(config){
cell = config[0];
let newIndex:number = config[1];
if(cell){
this._moveCellOutOfSight(cell, newIndex);
}
}
cell = this._loadCellAtIndex(index);
cell.active = true;
this._setIndexForCell(index, cell);
this._addCellIfNecessary(cell);
}
//在指定位置插入
insertCellAtIndex(index:number){
if(index <= 0){
return;
}
let cellsCount:number = this._numberOfCells();
if(cellsCount == 0 || index > cellsCount){
return;
}
let config = this.cellAtIndex(index)!;
let cell:Node;
if(config){
cell = config[0];
let newIndex:number = config[1];
for(let i:number = newIndex;i < this._cellsUsed.length;i++){
cell = this._cellsUsed[i];
let tableViewCell = cell.getComponent(TableViewCell)!;
this._setIndexForCell(tableViewCell!.getIndex() + 1,cell);
this._cellsIndex[tableViewCell!.getIndex()] = true;
}
}
cell = this._loadCellAtIndex(index);
cell.active = true;
this._setIndexForCell(index,cell);
this._addCellIfNecessary(cell);
this._updateCellsPosition();
this._updateContentSize();
}
//移除index位置的cell
removeCellAtIndex(index:number){
if(index <= 0){
return;
}
let cellsCount = this._numberOfCells();
if(cellsCount == 0 || index > cellsCount){
return;
}
let config = this.cellAtIndex(index)!;
let cell:Node;
if(config){
cell = config[0];
let newIndex:number = config[1];
this._moveCellOutOfSight(cell, newIndex);
this._updateCellsPosition();
let cellSize = this._cellsUsed.length;
for(let i = cellSize - 1;i >= newIndex;i--){
cell = this._cellsUsed[i];
let tableViewCell = cell.getComponent(TableViewCell)!;
let index = tableViewCell!.getIndex();
if(i == cellSize - 1){
this._cellsIndex[index] = null;
}
this._setIndexForCell(index - 1,cell);
this._cellsIndex[tableViewCell!.getIndex()] = true;
}
}
}
_moveCellOutOfSight(cell:Node,index:number){
this._cellsFreed.push(this._cellsUsed.splice(index,1)[0]);
let tableViewCell = cell.getComponent(TableViewCell)!;
let newIndex = tableViewCell!.getIndex();
this._cellsIndex[newIndex] = null;
this._isUsedCellsDirty = true;
this._unloadCellAtIndex(newIndex);
tableViewCell!.reset();
cell.active = false;
}
_setIndexForCell(index:number, cell:Node){
cell.getComponent(UITransform)!.anchorPoint = new Vec2(0,0);
cell.setPosition(this._offsetFromIndex(index));
cell.getComponent(TableViewCell)!.setIndex(index);
}
_offsetFromIndex(index:number){
let offset;
if(this.direction == TableViewDirection.horizontal){
offset = new Vec3(this._cellsPos[index],0,0);
}else{
offset = new Vec3(0,this._cellsPos[index],0);
}
let cellSize = this._cellSizeAtIndex(index);
if(this.fillOrder == TableViewFillOrder.topToBottom){
offset.y = this._innerSize.height - offset.y - cellSize.height;
}else if(this.fillOrder == TableViewFillOrder.rightToLeft){
offset.x = this._innerSize.width - offset.x - cellSize.width;
}
return offset;
}
_addCellIfNecessary(cell:Node){
cell.active = true;
if(cell.parent != this.innter){
this.innter!.addChild(cell);
}
this._cellsUsed.push(cell);
this._cellsIndex[cell.getComponent(TableViewCell)!.getIndex()] = true;
this._isUsedCellsDirty = true;
}
//得到正确的四个方向
_correctFillOrder(){
let dir = this._myDirection;
this.direction = dir;
this.fillOrder = ((this.fillOrder - 1) % 2 + 1) + 2 * (dir - 1); //四个方向
}
//得到所有控件的加起来的宽度或者高度
_updateCellsPosition(){
let cellsCount = this._accountNumber; //得到控件的数量
this._cellsPos = [1];
if(cellsCount > 0){
let curPos = 0;
let cellSize:Size;
let dir = this._myDirection;
for(let i = 1;i <= cellsCount;i++){
this._cellsPos.push(curPos);
cellSize = this._cellSizeAtIndex(i);
if(dir == TableViewDirection.horizontal){
curPos = curPos + cellSize.width;
}else if(dir == TableViewDirection.vertical){
curPos = curPos + cellSize.height;
}
}
this._cellsPos.push(curPos); //多添加一个可以用来获取最后一个cell的右侧或者底部
}
}
//更新content的大小
_updateContentSize(){
let baseSize = this._size;
let size = this._innerSize;
let cellsCount = this._accountNumber;
let dir = this._myDirection;;
if(cellsCount > 0){
let maxPos = this._cellsPos[this._cellsPos.length - 1];
if(dir == TableViewDirection.horizontal){
size.width = Math.max(baseSize.width, maxPos);
}else if(dir == TableViewDirection.vertical){
size.height = Math.max(baseSize.height, maxPos);
}
}
this.innter!.getComponent(UITransform)!.setContentSize(size);
this._innerSize = size;
this._setInnerContainerInitPos();
}
//设置到达底部或者到达顶部或者到达左边或者到达右部
_setInnerContainerInitPos(){
let dir = this._myDirection;;
if(this.direction != dir){
if(dir == TableViewDirection.horizontal){
if(this.fillOrder == TableViewFillOrder.leftToRight){
this.innter!.setPosition(new Vec3(0,0,0));
}else if(this.fillOrder == TableViewFillOrder.rightToLeft){
this.innter!.setPosition(new Vec3(this._getMinContainerOffset().x,0,0));
}
}else if(dir == TableViewDirection.vertical){
if(this.fillOrder == TableViewFillOrder.topToBottom){
this.innter!.setPosition(new Vec3(0,this._getMinContainerOffset().y,0));
}else if(this.fillOrder == TableViewFillOrder.bottomToTop){
this.innter!.setPosition(new Vec3(0,0,0));
}
}
this.direction = dir;
}
}
//不同锚点距离底部的距离也不一样
_getMinContainerOffset(){
let con = this.innter!;
let ap = con.getComponent(UITransform)!.anchorPoint;
let conSize = this._innerSize;
let baseSize = this._size;
return new Vec2(baseSize.width - (1 - ap.x) * conSize.width, baseSize.height - (1 - ap.y) * conSize.height)
}
_cellSizeAtIndex(index:number){
let func = this._extraFunction[TableViewFuncType.cellSize];
if(func){
return func(index);
}
return new Size(0,0);
}
_numberOfCells():number{
let func = this._extraFunction[TableViewFuncType.cellNum];
if(func){
return func();
}
return 0;
}
_loadCellAtIndex(index:number){
let func = this._extraFunction[TableViewFuncType.cellLoad];
if(func){
return func(this,index);
}
let cell = this.dequeueCell();
if(!cell){
return instantiate(this.cloneCell!);
}
return cell;
}
createCell():Node{
return instantiate(this.cloneCell!);
}
_unloadCellAtIndex(index:number){
let func = this._extraFunction[TableViewFuncType.cellUnload];
if(func){
return func(this,index);
}
}
//滚动回调
_scrollViewDidScroll(){
let cellsCount = this._accountNumber;
if(cellsCount <= 0){
return;
}
let baseSize = this._size;
if(this._isUsedCellsDirty){
this._isUsedCellsDirty = false;
this._cellsUsed.splice(0,1);
this._cellsUsed.sort((a, b) => { //按照从小到大的顺序排序
if(a && b){
return a.getComponent(TableViewCell)!.getIndex() - b.getComponent(TableViewCell)!.getIndex();
}else{
return -1;
}
});
this._cellsUsed.unshift(new Node());
}
let startIdx = 0;
let endIdx = 0;
let idx = 0;
let maxIdx = 0;
let offset = this.innter!.position.clone();
offset = new Vec3(-offset.x,-offset.y,0);
maxIdx = Math.max(cellsCount, 1);
if(this.fillOrder == TableViewFillOrder.topToBottom){
offset.y = offset.y + baseSize.height;
}else if(this.fillOrder == TableViewFillOrder.rightToLeft){
offset.x = offset.x + baseSize.width;
}
startIdx = this._indexFromOffset(offset.clone()) || maxIdx;
if(this.fillOrder == TableViewFillOrder.topToBottom){
offset.y = offset.y - baseSize.height;
}else if(this.fillOrder == TableViewFillOrder.bottomToTop){
offset.y = offset.y + baseSize.height;
}
if(this.fillOrder == TableViewFillOrder.leftToRight){
offset.x = offset.x + baseSize.width;
}else if(this.fillOrder == TableViewFillOrder.rightToLeft){
offset.x = offset.x - baseSize.width;
}
endIdx = this._indexFromOffset(offset.clone()) || maxIdx;
if(this._cellsUsed.length > 1){ //移除顶部节点
let cell = this._cellsUsed[1];
idx = cell.getComponent(TableViewCell)!.getIndex();
while(idx < startIdx){
this._moveCellOutOfSight(cell, 1);
if(this._cellsUsed.length > 1){
cell = this._cellsUsed[1];
idx = cell.getComponent(TableViewCell)!.getIndex();
}else{
break;
}
}
}
if(this._cellsUsed.length > 1){ //移除底部节点
let cell = this._cellsUsed[this._cellsUsed.length - 1];
idx = cell.getComponent(TableViewCell)!.getIndex();
while(idx <= maxIdx &&idx > endIdx){
this._moveCellOutOfSight(cell, this._cellsUsed.length - 1);
if(this._cellsUsed.length > 1){
cell = this._cellsUsed[this._cellsUsed.length - 1];
idx = cell.getComponent(TableViewCell)!.getIndex();
}else{
break;
}
}
}
for(let i:number = startIdx;i <= endIdx;i++){ //更新节点
if(!this._cellsIndex[i]){
this.updateCellAtIndex(i);
}
}
}
_indexFromOffset(offset:Vec3):number | undefined{
let size:Size = this._innerSize;
if(this.fillOrder == TableViewFillOrder.topToBottom){
offset.y = size.height - offset.y;
}else if(this.fillOrder == TableViewFillOrder.rightToLeft){
offset.x = size.width - offset.x;
}
let search;
if(this.direction == TableViewDirection.horizontal){
search = offset.x;
}else{
search = offset.y;
}
let low = 1;
let high = this._accountNumber;
while(high >= low){
let index = Math.floor(low + (high - low) / 2);
let cellSatrt = this._cellsPos[index];
let cellEnd = this._cellsPos[index + 1];
if(search >= cellSatrt && search <= cellEnd){
return index;
}else if(search < cellSatrt){
high = index - 1;
}else{
low = index + 1;
}
}
if(low <= 1){
return 1;
}
}
//设置方向
setDirection(){
if(this.scrollView!.horizontal){ //如果是横向滚动
this._myDirection = TableViewDirection.horizontal;
}else if(this.scrollView!.vertical){ //如果是纵向滚动
this._myDirection = TableViewDirection.vertical;
}
}
jumpToLeft(){
this.scrollView!.scrollToLeft();
}
}
const { ccclass, property } = _decorator;
@ccclass(‘TableViewCell’)
export class TableViewCell extends Component {
public index:number = 0; //当前item的索引
setIndex(index:number){
this.index = index;
}
getIndex():number{
return this.index;
}
reset(){
this.index = 0;
}
}

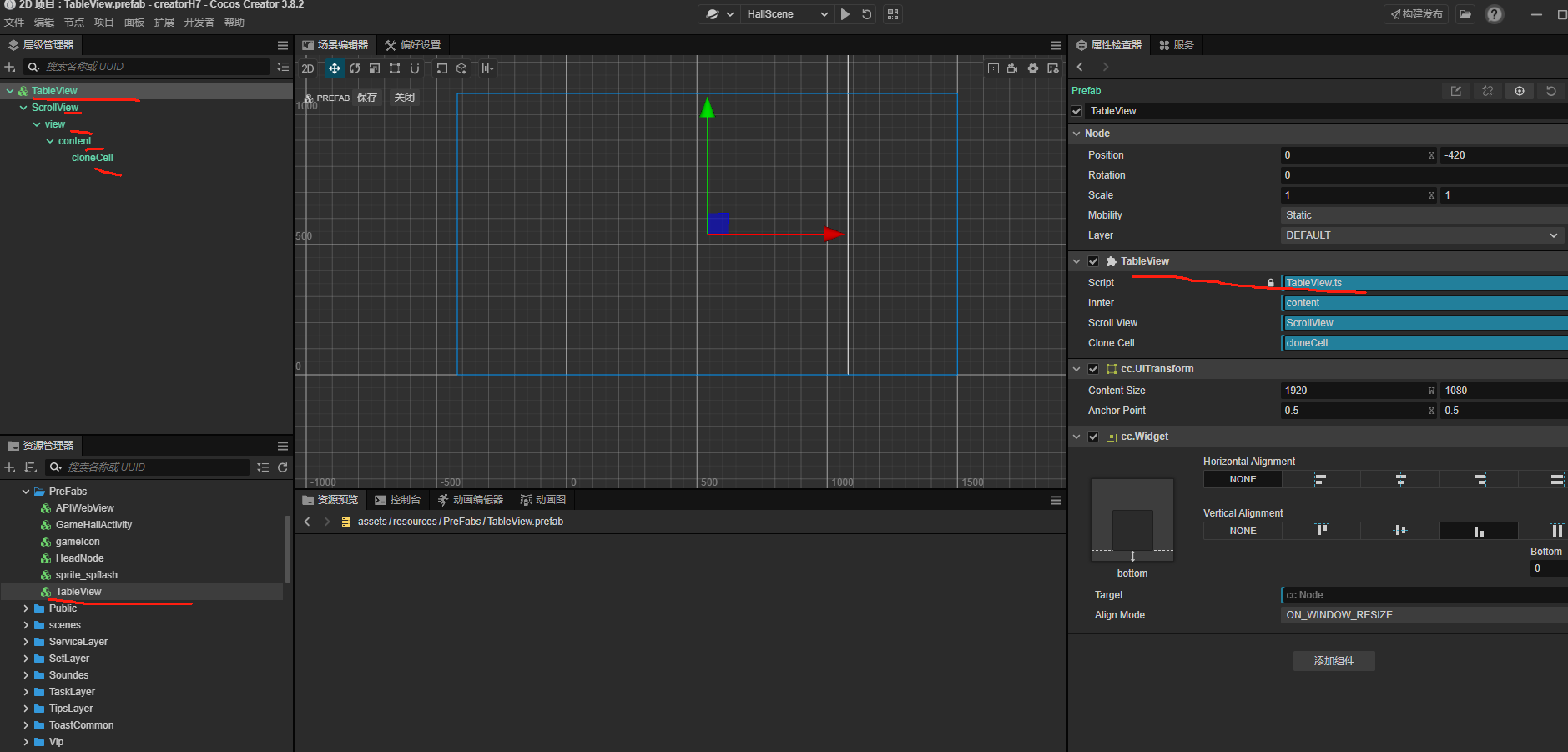

这样TableView的组件已经基本搞好了，然后接下来就是使用它了。假如想在一个节点中使用它，那么就创建这个TableView预制体。
let tableView:Node = await PopHelper.loadPrefab("PreFabs/TableView"); //创建TableView预制体
this.tableView = tableView;
let tableViewComponent = tableView.getComponent(TableView)!; //得到预制体上的TableView.ts脚本
this.tableViewComponent = tableViewComponent;
tableView.parent = this.node;
let tableViewSize = this.node.getComponent(UITransform)!.contentSize;
tableViewComponent.init(new Size(tableViewSize.width -20,this._nowHeight)); //初始化TableView的尺寸大小
tableViewComponent.setFillOrder(TableViewFillOrder.leftToRight); //设置滑动方向，横向从左到右
tableViewComponent.registerFunc(TableViewFuncType.cellNum, this.setNumber.bind(this)); //注册TableView的获得items数量函数
tableViewComponent.registerFunc(TableViewFuncType.cellSize,this.setSize.bind(this)); //动态设置每个item的大小
tableViewComponent.registerFunc(TableViewFuncType.cellLoad,this.loadCell.bind(this)); //动态设置每个cell上的item内容
tableViewComponent.registerFunc(TableViewFuncType.cellUnload,this.cellUnload.bind(this)); //当一个item滑出屏幕后，卸载它
return tableView;
}
//设置每一项的尺寸
setSize(index:number):Size{
return new Size(this._nowEveryWidth,this._nowHeight);
}
//返回有多少项
setNumber():number{
return this._iconConfig.length;
}
//动态设置item内容,index是从1开始。
loadCell(view:TableView,index:number){
let cell = view.dequeueCell(); //cell不需要管大小，不用操作cell的大小和位置
if(!cell){
cell = view.createCell();
cell.active = true;
}
let item:Node | null = cell.getChildByName("_item"); //item需要设置大小和位置。所有的item内容都是添加到item节点下的。
if(!item){
item = new Node("_item");
cell.addChild(item);
item.addComponent(UITransform).setAnchorPoint(1,0);
}
this.initGameItem(index,item);
return cell;
}
initGameItem(index:number,item:Node)//设置当前显示的item内容
{
let gameItemConfig = this._iconConfig[index -1]; //对应index的配置内容
let transform = item.getComponent(UITransform)!; //item设置大小，位置
transform.setContentSize(new Size(this._nowEveryWidth,this._nowHeight));
item.setPosition(new Vec3(this._nowEveryWidth,0,0));
item.removeAllChildren();
//用户自己添加节点内容
let node = new Node();
item.addChild(node);
}
//卸载某个item
cellUnload(view:TableView,index:number){
let cell = view.dequeueCell();
let item = cell.getChildByName("_item");
if(item){
item.removeAllChildren();
}
}使用的话，就是:
this.tableViewComponent!.reloadData();
this.tableViewComponent!.jumpToLeft();就会开始从this._iconConfig配置里加载数据
cocoser最喜欢重复造轮子了
对啊，还有最新的官方文档不是很详细
creator不造你咋用
用别人的还不如自己写一个又不难
为啥不传个码云啥的
