3.8的3d描边shader怎么搞

2536714067 · 2024年12月2日 06:39

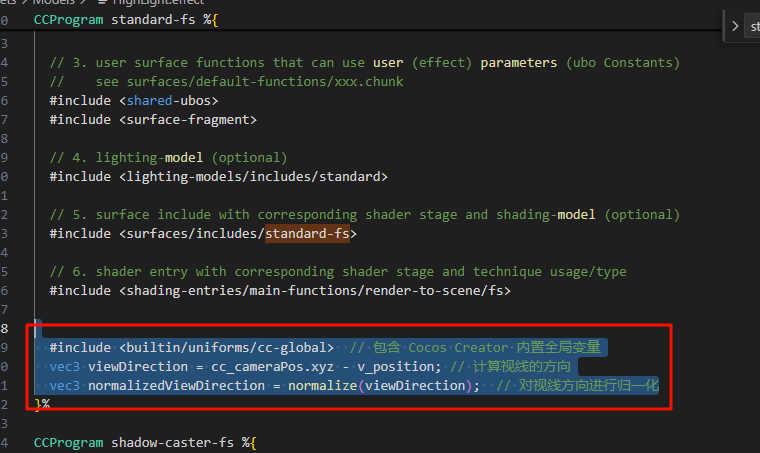

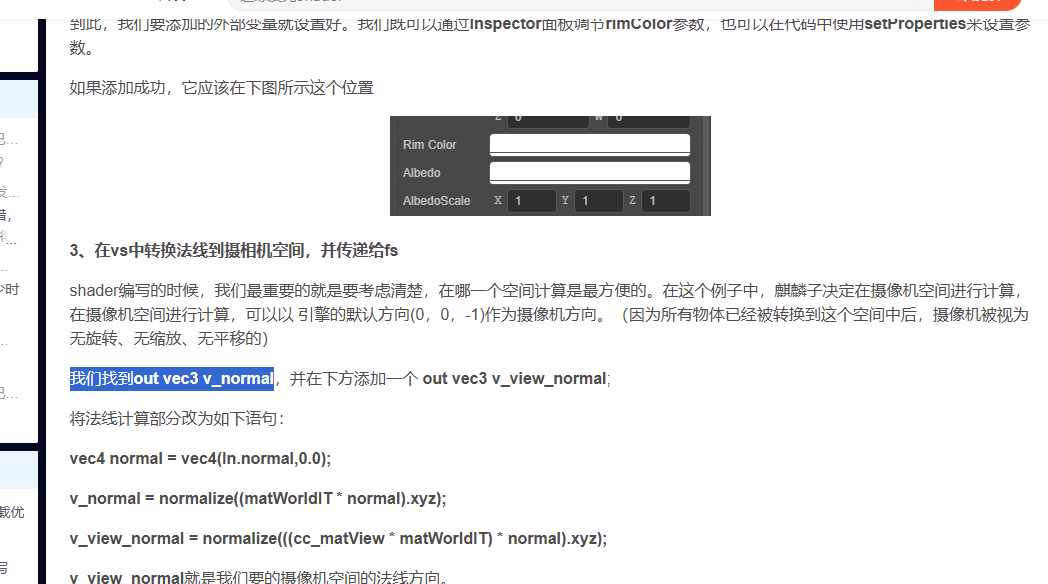

参照了一个教程搞描边，发现3.8的v_normal搜不到啊，这一堆include 有点懵逼。怎么搞？

2536714067 · 2024年12月2日 06:41

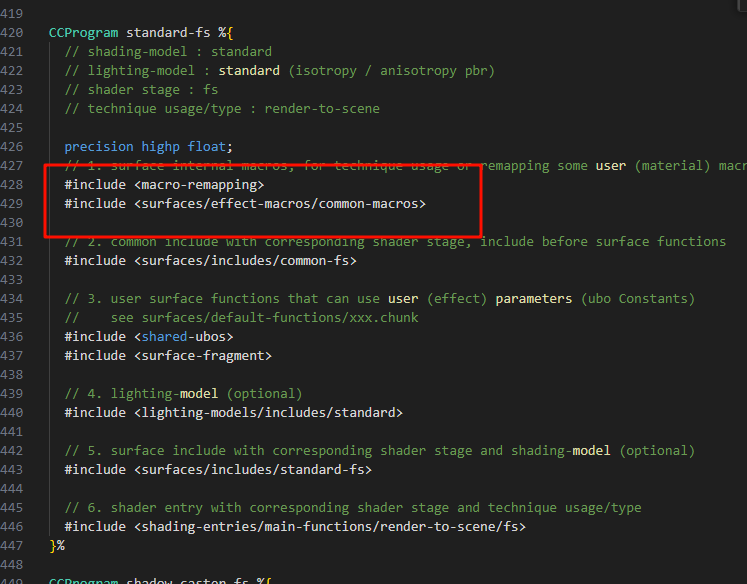

到这一步卡壳了

2536714067 · 2024年12月2日 06:42

2d还能看懂，3d的有点懵逼

boyue · 2024年12月2日 06:51

看完 Surface Shader 相关文档，你就会写了。表面着色器（Surface Shader） | Cocos Creator

2536714067 · 2024年12月2日 07:19

还是不太懂，有没有应急教程的，原理代码啥的我后面再花时间补上

geiwoyipiao · 2024年12月2日 07:24

简单粗暴两个模型，一个模型放大一点，渲染背面，一个正常模型，渲染正面

2536714067 · 2024年12月2日 07:30

结点比较多，有好多小结点，需要选中小结点描边。选中外面的话是多个集合小结点组成的大描边

3293612927 · 2024年12月2日 07:51

wslx · 2024年12月2日 08:04

单个物体描边好高，多个物体集合描轮廓需要后处理了

2536714067 · 2024年12月2日 08:05

2d的要好搞一点，3d的看不懂。原理很简单就是不知道入口在哪里写

2536714067 · 2024年12月2日 08:06

多个的我打算搞个spriteRender了

2536714067 · 2024年12月2日 08:07

3d 的片元着色器入口时这里么，不对劲

wslx · 2024年12月2日 08:13

CCEffect %{

techniques:

name: opaque

passes:
- vert: unlit-vs:vert

  frag: unlit-fs:frag

  properties: &props

  mainTexture: { value: grey }

  tilingOffset: { value: [1, 1, 0, 0] }

  mainColor: { value: [1, 1, 1, 1], linear: true, editor: { type: color } }

  colorScale: { value: [1, 1, 1], target: colorScaleAndCutoff.xyz }

  alphaThreshold: { value: 0.5, target: colorScaleAndCutoff.w, editor: { parent: USE_ALPHA_TEST } }

  color: { target: mainColor, linear: true, editor: { visible: false } } # backward compability

  use_rimLight: {value: 0.0}

  rimColor: {value: [0, 1, 0, 1], linear: true, editor: {type: color }}

  migrations: &migs

  properties:
```
mainColor:    { formerlySerializedAs: color }
```
- &outlinepass

  vert: out-line-vs:vert

  frag: out-line-fs:frag

  properties: *props

  migrations: *migs

  properties: &propss
```
mainTexture:    { value: grey }

tilingOffset:   { value: [1, 1, 0, 0] }

mainColor:      { value: [1, 1, 1, 1], linear: true, editor: { type: color } }

colorScale:     { value: [1, 1, 1], target: colorScaleAndCutoff.xyz }

alphaThreshold: { value: 0.5, target: colorScaleAndCutoff.w, editor: { parent: USE_ALPHA_TEST } }

color:          { target: mainColor, linear: true, editor: { visible: false } } # backward compability

rimColor:       {value: [0, 1, 0, 1], linear: true, editor: {type: color }}

open_outLine:   {value: 0.0}
```
- &planar-shadow

  vert: planar-shadow-vs:vert

  frag: planar-shadow-fs:frag

  phase: planar-shadow

  propertyIndex: 0

  depthStencilState:

  depthTest: true

  depthWrite: false

  stencilTestFront: true

  stencilFuncFront: not_equal

  stencilPassOpFront: replace

  stencilRef: 0x80 # only use the leftmost bit

  stencilReadMask: 0x80

  stencilWriteMask: 0x80

  blendState:

  targets:
  - blend: true

    blendSrc: src_alpha

    blendDst: one_minus_src_alpha

    blendDstAlpha: one_minus_src_alpha
- &deferred-forward

  vert: unlit-vs:vert

  frag: unlit-fs:frag

  phase: deferred-forward

  propertyIndex: 0
name: transparent

passes:
- vert: unlit-vs:vert

  frag: unlit-fs:frag

  depthStencilState: &d1

  depthTest: true

  depthWrite: false

  blendState: &b1

  targets:
  - blend: true

    blendSrc: src_alpha

    blendDst: one_minus_src_alpha

    blendDstAlpha: one_minus_src_alpha
  properties: *props

  migrations: *migs
- *planar-shadow
- &deferred-forward-transparent

  vert: unlit-vs:vert

  frag: unlit-fs:frag

  phase: deferred-forward

  propertyIndex: 0

  migrations: *migs

  depthStencilState: *d1

  blendState: *b1
name: add

passes:
- vert: unlit-vs:vert

  frag: unlit-fs:frag

  rasterizerState: &r1 { cullMode: none }

  depthStencilState: *d1

  blendState: &b2

  targets:
  - blend: true

    blendSrc: src_alpha

    blendDst: one

    blendSrcAlpha: src_alpha

    blendDstAlpha: one
  properties: *props

  migrations: *migs
- &deferred-forward-add

  vert: unlit-vs:vert

  frag: unlit-fs:frag

  phase: deferred-forward

  rasterizerState: *r1

  depthStencilState: *d1

  blendState: *b2

  propertyIndex: 0

  migrations: *migs
name: alpha-blend

passes:
- vert: unlit-vs:vert

  frag: unlit-fs:frag

  rasterizerState: *r1

  depthStencilState: *d1

  blendState: &b3

  targets:
  - blend: true

    blendSrc: src_alpha

    blendDst: one_minus_src_alpha

    blendSrcAlpha: src_alpha

    blendDstAlpha: one_minus_src_alpha
  properties: *props

  migrations: *migs
- &deferred-forward-alpha-blend

  vert: unlit-vs:vert

  frag: unlit-fs:frag

  phase: deferred-forward

  rasterizerState: *r1

  depthStencilState: *d1

  blendState: *b3

  propertyIndex: 0

  migrations: *migs

}%

CCProgram unlit-vs %{

precision highp float;

#include <legacy/input>

#include <builtin/uniforms/cc-global>

#include <legacy/decode-base>

#include <legacy/local-batch>

#include <legacy/input>

#include <legacy/fog-vs>

out vec3 v_position;

out vec3 v_normal;

#if USE_VERTEX_COLOR

in lowp vec4 a_color;

out lowp vec4 v_color;

#endif

#if USE_TEXTURE

out vec2 v_uv;

uniform TexCoords {

  vec4 tilingOffset;

};

#endif

vec4 vert () {

vec4 position;

CCVertInput(position);

mat4 matWorld, matworldIT;

CCGetWorldMatrixFull(matWorld, matworldIT);

#if USE_TEXTURE

  v_uv = a_texCoord * tilingOffset.xy + tilingOffset.zw;

  #if SAMPLE_FROM_RT

    CC_HANDLE_RT_SAMPLE_FLIP(v_uv);

  #endif

#endif

#if USE_VERTEX_COLOR

  v_color = a_color;

#endif

CC_TRANSFER_FOG(matWorld * position);

v_position = (matWorld * position).xyz;

v_normal = normalize((matworldIT * vec4(a_normal, 0.0)).xyz);

return cc_matProj * (cc_matView * matWorld) * position;

}

}%

CCProgram unlit-fs %{

precision highp float;

// #include <legacy/output-standard>

#include <legacy/output>

#include <legacy/fog-fs>

in vec3 v_position;

in vec3 v_normal;

#if USE_ALPHA_TEST

#pragma define-meta ALPHA_TEST_CHANNEL options([a, r, g, b])

#endif

#if USE_TEXTURE

in vec2 v_uv;

uniform sampler2D mainTexture;

#endif

uniform Constant {

vec4 mainColor;

vec4 colorScaleAndCutoff;

vec4 rimColor;

float use_rimLight;

};

#if USE_VERTEX_COLOR

in lowp vec4 v_color;

#endif

vec4 frag () {

vec4 o = mainColor;

o.rgb *= colorScaleAndCutoff.xyz;

#if USE_VERTEX_COLOR

  o.rgb *= SRGBToLinear(v_color.rgb);//use linear

  o.a *= v_color.a;

#endif

#if USE_TEXTURE

  vec4 texColor = texture(mainTexture, v_uv);

  texColor.rgb = SRGBToLinear(texColor.rgb);

  o *= texColor;

#endif

#if USE_ALPHA_TEST

  if (o.ALPHA_TEST_CHANNEL < colorScaleAndCutoff.w) discard;

#endif

#if USE_OUTLINE

  if(use_rimLight >= 1.0){

    vec4 colRim = rimColor;

    vec3 viewDir = normalize(cc_cameraPos.xyz - v_position);

    float fRim = 1.0 - abs(dot(normalize(v_normal), viewDir));

    fRim = pow(fRim, 3.0);

    o = mix(o, colRim, fRim);

  }

#endif

// o = o + colRim * fRim;

// if(fRim > 0.85){

//   o = colRim;

// }

CC_APPLY_FOG(o);

return CCFragOutput(o);

}

}%

CCProgram out-line-vs %{

precision highp float;

#include <legacy/input>

#include <builtin/uniforms/cc-global>

#include <legacy/decode-base>

#include <legacy/local-batch>

#include <legacy/input>

#include <legacy/fog-vs>

out vec3 v_position;

out vec3 v_normal;

#if USE_VERTEX_COLOR

in lowp vec4 a_color;

out lowp vec4 v_color;

#endif

#if USE_TEXTURE

out vec2 v_uv;

uniform TexCoords {

  vec4 tilingOffset;

};

#endif

uniform ConstantPass2 {

vec4 mainColor;

vec4 colorScaleAndCutoff;

vec4 rimColor;

float open_outLine;

};

// uniform float open_outLine;

vec4 vert () {

vec4 position;

CCVertInput(position);

mat4 matWorld, matworldIT;

CCGetWorldMatrixFull(matWorld, matworldIT);

#if USE_TEXTURE

  v_uv = a_texCoord * tilingOffset.xy + tilingOffset.zw;

  #if SAMPLE_FROM_RT

    CC_HANDLE_RT_SAMPLE_FLIP(v_uv);

  #endif

#endif

#if USE_VERTEX_COLOR

  v_color = a_color;

#endif

CC_TRANSFER_FOG(matWorld * position);

if(open_outLine >= 1.0){

  v_position = (matWorld * position).xyz;

  v_normal = normalize((matworldIT * vec4(a_normal, 0.0)).xyz);

  position += vec4(a_normal, 0.0) * 0.0025;

}

return cc_matProj * (cc_matView * matWorld) * position;

}

}%

CCProgram out-line-fs %{

precision highp float;

// #include <legacy/output-standard>

#include <legacy/output>

#include <legacy/fog-fs>

in vec3 v_position;

in vec3 v_normal;

#if USE_ALPHA_TEST

#pragma define-meta ALPHA_TEST_CHANNEL options([a, r, g, b])

#endif

#if USE_TEXTURE

in vec2 v_uv;

uniform sampler2D mainTexture;

#endif

// uniform vec4 rimColor;

uniform ConstantPass2 {

vec4 mainColor;

vec4 colorScaleAndCutoff;

vec4 rimColor;

float open_outLine;

};

#if USE_VERTEX_COLOR

in lowp vec4 v_color;

#endif

vec4 frag () {

vec4 o = mainColor;

o.rgb *= colorScaleAndCutoff.xyz;

#if USE_VERTEX_COLOR

  o.rgb *= SRGBToLinear(v_color.rgb);//use linear

  o.a *= v_color.a;

#endif

#if USE_TEXTURE

  vec4 texColor = texture(mainTexture, v_uv);

  texColor.rgb = SRGBToLinear(texColor.rgb);

  o *= texColor;

#endif

#if USE_ALPHA_TEST

  if (o.ALPHA_TEST_CHANNEL < colorScaleAndCutoff.w) discard;

#endif

#if USE_OUTLINE

  // if(use_rimLight >= 1.0){

  //   vec4 colRim = rimColor;

  //   vec3 viewDir = normalize(cc_cameraPos.xyz - v_position);

  //   float fRim = 1.0 - abs(dot(normalize(v_normal), viewDir));

  //   fRim = pow(fRim, 3.0);

  //   o = mix(o, colRim, fRim);

  // }

#endif

// o = o + colRim * fRim;

// if(fRim > 0.85){

//   o = colRim;

// }

o = rimColor;

CC_APPLY_FOG(o);

return CCFragOutput(o);

}

}%

CCProgram planar-shadow-vs %{

precision highp float;

#include <legacy/input>

#include <builtin/uniforms/cc-global>

#include <legacy/decode-base>

#include <legacy/local-batch>

#include <builtin/uniforms/cc-shadow>

#include <common/lighting/functions>

out float v_dist;

vec4 vert () {

vec4 position;

CCVertInput(position);

// World Space

mat4 matWorld, matWorldIT;

CCGetWorldMatrixFull(matWorld, matWorldIT);

vec3 worldPos = (matWorld * position).xyz;

vec4 shadowPos = CalculatePlanarShadowPos(worldPos, cc_cameraPos.xyz, cc_mainLitDir.xyz, cc_planarNDInfo);

position = CalculatePlanarShadowClipPos(shadowPos, cc_cameraPos.xyz, cc_matView, cc_matProj, cc_nearFar, cc_shadowWHPBInfo.w);

v_dist = shadowPos.w;

return position;

}

}%

CCProgram planar-shadow-fs %{

precision highp float;

#include <builtin/uniforms/cc-shadow>

#include <legacy/output>

in float v_dist;

vec4 frag () {

if(v_dist < 0.0)

  discard;

return CCFragOutput(cc_shadowColor);

}

}%
我之前拷贝unlit改的,内置的表面着色器我没用，surface shader文档看的很累

2536714067 · 2024年12月2日 08:13

我也不想用的，3.8的模型导入用的就是自带的表面着色器。只能复制过来改一改

wslx · 2024年12月2日 08:15

晚上回去用builtin shader搞一个

2536714067 · 2024年12月2日 08:34

不知道换成这个有没有影响，晚点试一下

roadright · 2024年12月2日 09:04

全部都是法线的各种计算啊

stk.bossliu · 2024年12月3日 04:25

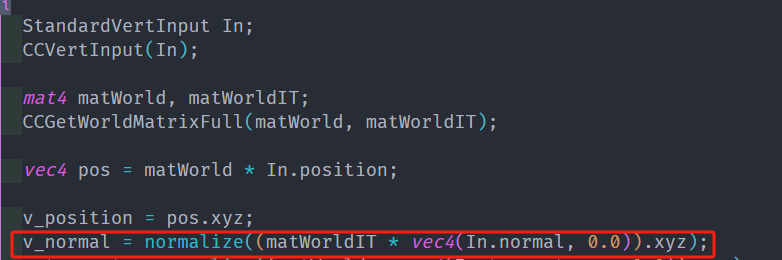

vnormal是计算出来的哈， btw，如果你单纯搞描边的话，内置的toon的shader是有描边的效果的，你把里面描边相关的代码复制到builtin-standard.effect就可以了

yishionwang314 · 2025年04月8日 02:50

builtin-standard-outline.effect.zip (4.8 KB)
在builtin-standard里面抄toon的描边。我同时修改了不显示负法线角度，你要是想显示就把这一段改回去： vec3 dir = normalize(localPos);
float flip = dot(dir, normalize(In.normal)) < 0.0 ? -1.0 : 1.0;
localPos += step(0.0, flip) * normalize(In.normal) * width;

3.8的3d描边shader怎么搞
