裁剪目标图片，部分无法显示或错乱，红色是单元格背景色

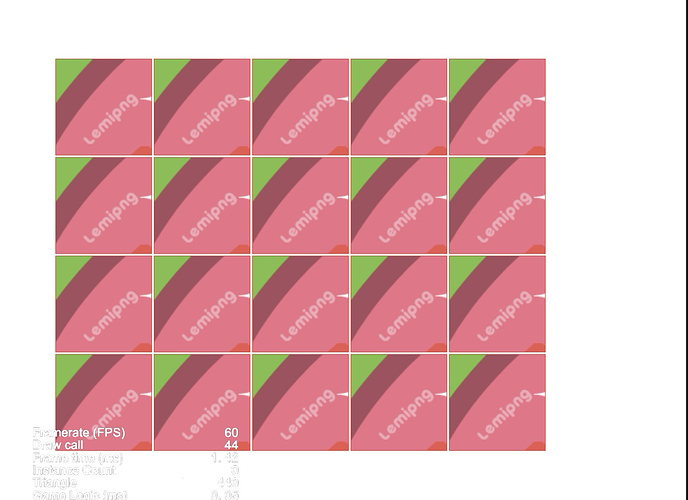

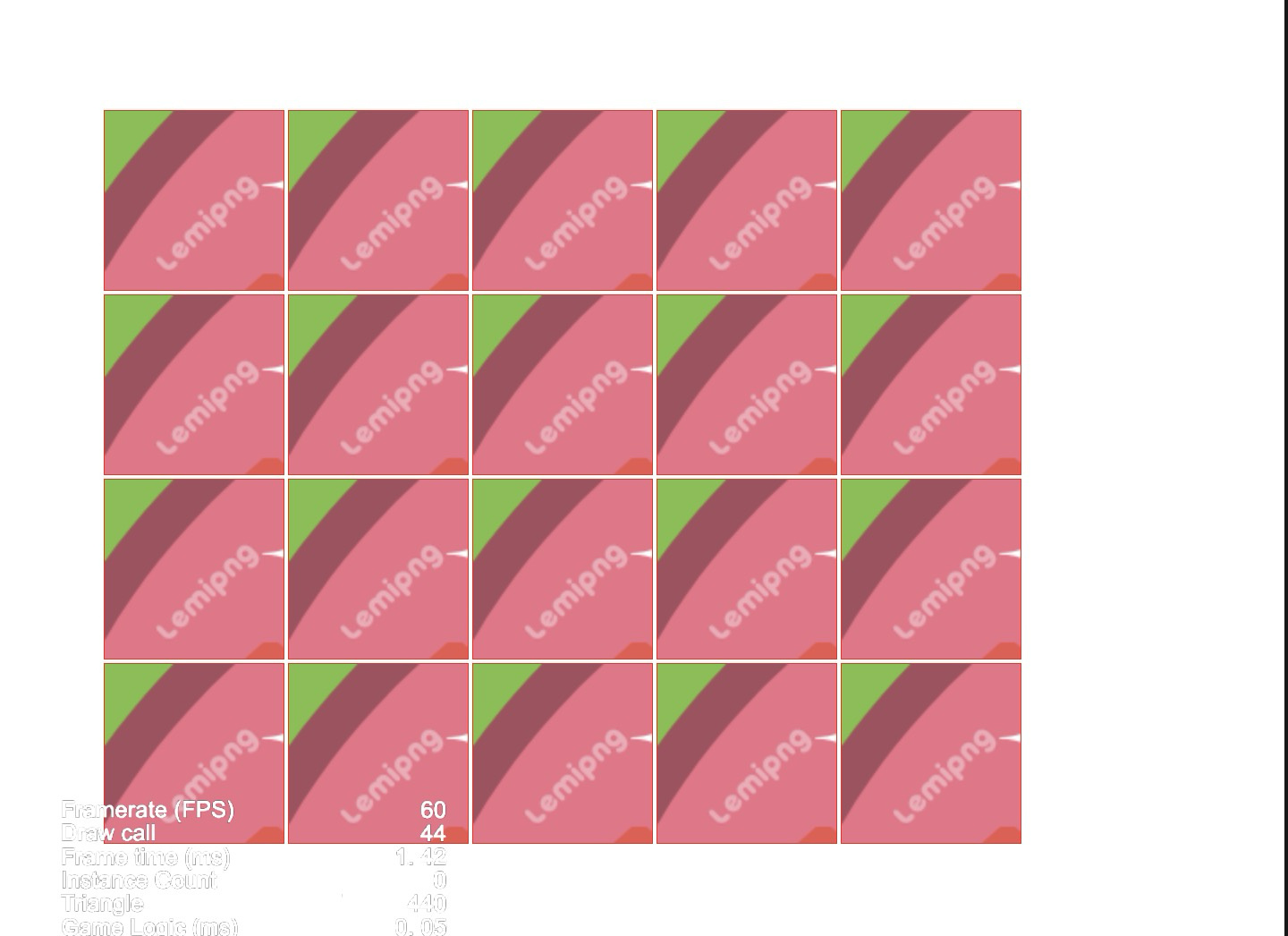

浏览器效果

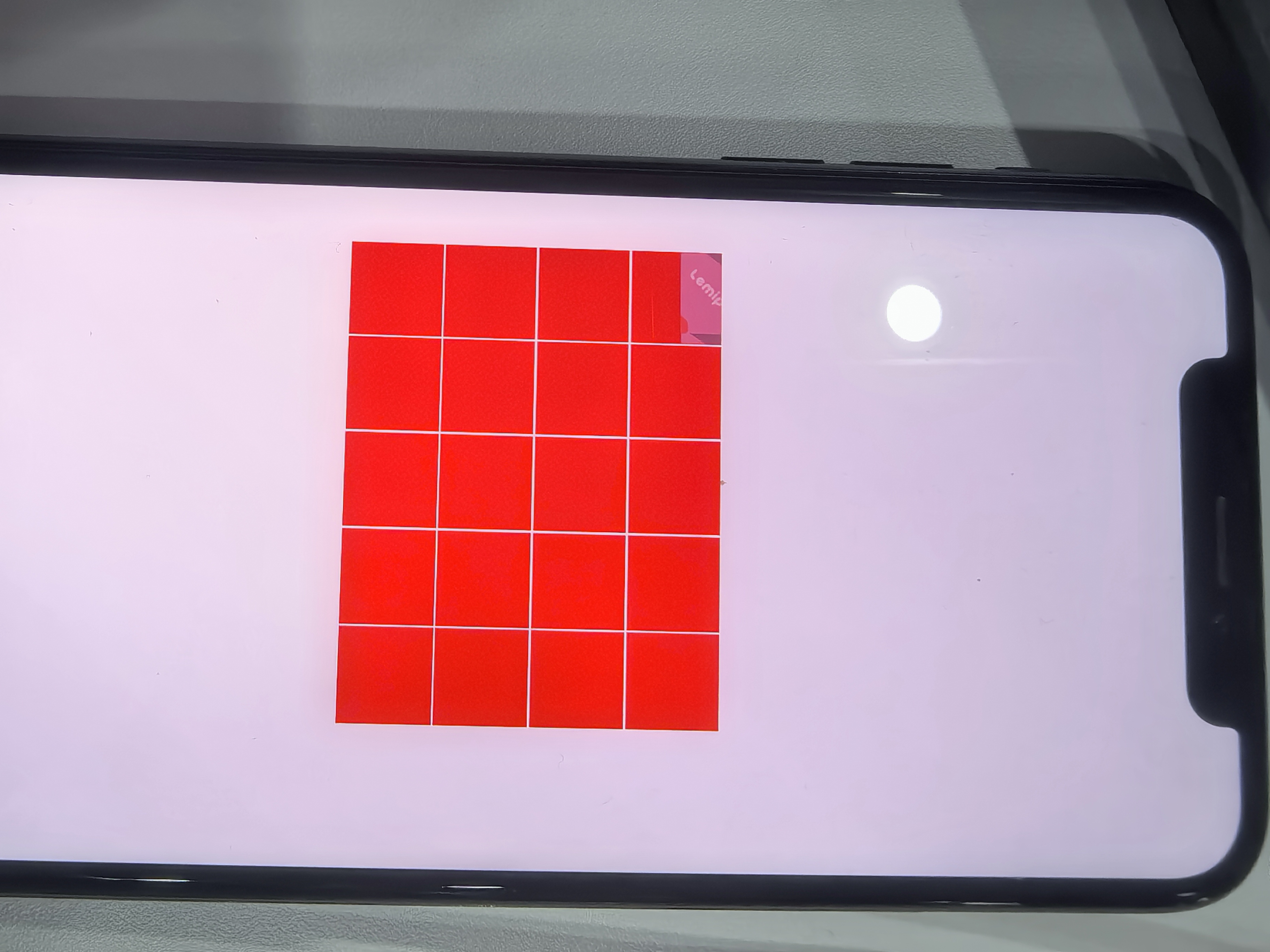

真机效果
主要代码：
import { _decorator, Component, ImageAsset, instantiate, Node, Sprite, Texture2D } from ‘cc’;
const { ccclass, property } = _decorator;
import { SpriteFrame } from “cc”;
import { gfx } from “cc”;
import { director } from “cc”;
@ccclass(‘test’)
export class test extends Component {
@property(Sprite)
srcSprite:Sprite = null;
@property(Node)
checkRoot:Node = null;
//获取SprieFrame像素
public readPixelsOffset(offsetX: number, offsetY: number, width: number, height: number, sp: SpriteFrame): Uint8Array {
const texture = sp.texture;
const gfxTexture = texture.getGFXTexture();
const bufferViews = [];
const region = new gfx.BufferTextureCopy();
const buffer = new Uint8Array(width * height * 4);
region.texOffset.x = offsetX;
region.texOffset.y = offsetY;
region.texExtent.width = width;
region.texExtent.height = height;
bufferViews.push(buffer);
director.root.device.copyTextureToBuffers(gfxTexture, bufferViews, [region]);
return bufferViews[0];
}
start() {
for (let index = 0; index < this.checkRoot.children.length; index++) {
let item = this.checkRoot.children[index];
let d = this.readPixelsOffset(200,200, 100, 100, this.srcSprite.spriteFrame);
let imgData = {
_data: d,
width: 100,
height: 100,
format: Texture2D.PixelFormat.RGBA8888,
_compressed: false
}
let tx: Texture2D = new Texture2D();
let imageAsset: ImageAsset = new ImageAsset();
imageAsset.reset(imgData);
tx.image = imageAsset;
tx.setWrapMode(Texture2D.WrapMode.CLAMP_TO_EDGE, Texture2D.WrapMode.CLAMP_TO_EDGE, Texture2D.WrapMode.CLAMP_TO_EDGE);
const sf = new SpriteFrame();
sf.texture = tx;
sf.packable = false;
let _sprite = item.children[1].getComponent(Sprite);
_sprite.spriteFrame = sf;
}
}
}
工程
NewProject.zip (156.7 KB)
