我已经像这样包含了cc-local，但是依然拿不到其中的cc_matWorldIT。
我试过同样包含cc-global, 这里面的cc_time都可以拿到。这是哪里的问题呢？CocosCreator 3.8.5
CCProgram surface-fragment %{
#include <builtin/uniforms/cc-local>
...

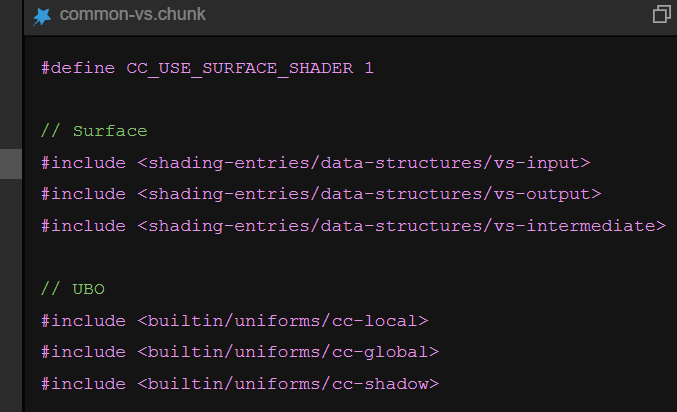

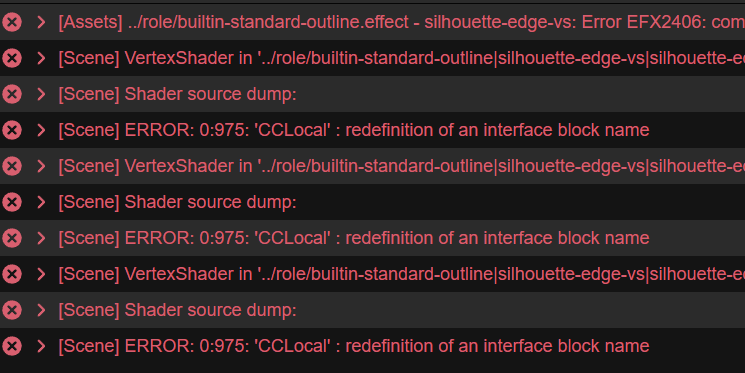

ERROR: 0:1832: ‘cc_matWorldIT’ : undeclared identifier
另外，如果shader从builtin-unlit或者legacy/standard复制过来，在这个基础上写。cc-local里面的cc_matWorld和cc_matWorldIT就完全没有问题。
shader有时候就是容易被这样一个问题卡住自己很难爬出来。
下面是有问题的代码，注释里面
// Copyright (c) 2017-2022 Xiamen Yaji Software Co., Ltd.
CCEffect %{
techniques:
- name: opaque
passes:
- vert: standard-vs
frag: standard-fs
properties: &props
tilingOffset: { value: [1.0, 1.0, 0.0, 0.0] }
mainColor: { value: [1.0, 1.0, 1.0, 1.0], target: albedo, linear: true, editor: { displayName: Albedo, type: color } }
albedoScale: { value: [1.0, 1.0, 1.0], target: albedoScaleAndCutoff.xyz }
alphaThreshold: { value: 0.5, target: albedoScaleAndCutoff.w, editor: { parent: USE_ALPHA_TEST, slide: true, range: [0, 1.0], step: 0.001 } }
occlusion: { value: 0.0, target: pbrParams.x, editor: { slide: true, range: [0, 1.0], step: 0.001 } }
roughness: { value: 0.5, target: pbrParams.y, editor: { slide: true, range: [0, 1.0], step: 0.001 } }
metallic: { value: 0.0, target: pbrParams.z, editor: { slide: true, range: [0, 1.0], step: 0.001 } }
specularIntensity: { value: 0.5, target: pbrParams.w, editor: { slide: true, range: [0.0, 1.0], step: 0.001 } }
emissive: { value: [0.0, 0.0, 0.0, 1.0], linear: true, editor: { type: color } }
emissiveScale: { value: [1.0, 1.0, 1.0], target: emissiveScaleParam.xyz }
normalStrength: { value: 1.0, target: emissiveScaleParam.w, editor: { parent: USE_NORMAL_MAP, slide: true, range: [0, 5.0], step: 0.001 } }
anisotropyIntensity: { value: 1.0, target: anisotropyParam.x, editor: { parent: IS_ANISOTROPY, slide : true, range : [0.0, 1.0] , step : 0.0001 } }
anisotropyRotation: { value: 0.0, target: anisotropyParam.y, editor: { parent: IS_ANISOTROPY, slide : true, range : [0, 1.0] , step : 0.0001 } }
anisotropyMapResolutionHeight: { value: 0.0, target: anisotropyParam.w, editor: { parent: FIX_ANISOTROPIC_ROTATION_MAP } }
addOnShadowBias: { value: 0.0, target: anisotropyParam.z }
mainTexture: { value: grey, target: albedoMap, editor: { displayName: AlbedoMap } }
normalMap: { value: normal }
pbrMap: { value: grey }
occlusionMap: { value: white }
emissiveMap: { value: grey }
anisotropyMap: { value: black, editor : { parent: IS_ANISOTROPY } }
anisotropyMapNearestFilter: { value: black, editor : { parent: FIX_ANISOTROPIC_ROTATION_MAP } }
rtYMap: { value: grey, editor: { parent: USE_Y_MAP } }
rtYMapScale: { value: [1.0, 1.0, 1.0, 1.0], editor: { parent: USE_Y_MAP }}
sinkingDepth: { value: 1.0, target: sinkingParams.x, editor: { parent: USE_Y_MAP } }
sinkingColor: { value: [0.0, 0.0, 0.0, 1.0], editor: { parent: USE_Y_MAP, type: color }}
sinkingColorMapping: { value: [0.2, 1.2, 0.0, 0.0], editor: { parent: USE_Y_MAP }}
- &forward-add
vert: standard-vs
frag: standard-fs
phase: forward-add
propertyIndex: 0
embeddedMacros: { CC_FORWARD_ADD: true }
depthStencilState:
depthFunc: equal
depthTest: true
depthWrite: false
blendState:
targets:
- blend: true
blendSrc: one
blendDst: one
blendSrcAlpha: zero
blendDstAlpha: one
- &shadow-caster
vert: shadow-caster-vs
frag: shadow-caster-fs
phase: shadow-caster
propertyIndex: 0
rasterizerState:
cullMode: front
properties:
tilingOffset: { value: [1.0, 1.0, 0.0, 0.0] }
mainColor: { value: [1.0, 1.0, 1.0, 1.0], target: albedo, editor: { displayName: Albedo, type: color } }
albedoScale: { value: [1.0, 1.0, 1.0], target: albedoScaleAndCutoff.xyz }
alphaThreshold: { value: 0.5, target: albedoScaleAndCutoff.w, editor: { parent: USE_ALPHA_TEST } }
mainTexture: { value: grey, target: albedoMap, editor: { displayName: AlbedoMap } }
- &reflect-map
vert: standard-vs
frag: reflect-map-fs
phase: reflect-map
propertyIndex: 0
- &planar-shadow
vert: planar-shadow-vs
frag: planar-shadow-fs
phase: planar-shadow
propertyIndex: 0
depthStencilState:
depthTest: true
depthWrite: false
stencilTestFront: true
stencilFuncFront: not_equal
stencilPassOpFront: replace
stencilRef: 0x80 # only use the leftmost bit
stencilReadMask: 0x80
stencilWriteMask: 0x80
blendState:
targets:
- blend: true
blendSrc: src_alpha
blendDst: one_minus_src_alpha
blendDstAlpha: one_minus_src_alpha
- &deferred
vert: standard-vs
frag: standard-fs
pass: gbuffer
phase: gbuffer
embeddedMacros: { CC_PIPELINE_TYPE: 1 }
propertyIndex: 0
- name: transparent
passes:
- vert: standard-vs
frag: standard-fs
embeddedMacros: { CC_FORCE_FORWARD_SHADING: true }
depthStencilState: &d1
depthTest: true
depthWrite: false
blendState: &b1
targets:
- blend: true
blendSrc: src_alpha
blendDst: one_minus_src_alpha
blendDstAlpha: one_minus_src_alpha
properties: *props
- *forward-add
- *shadow-caster
- *planar-shadow
- &deferred-forward
vert: standard-vs
frag: standard-fs
phase: deferred-forward
embeddedMacros: { CC_PIPELINE_TYPE: 0 }
propertyIndex: 0
depthStencilState: *d1
blendState: *b1
}%
CCProgram shared-ubos %{
uniform Constants {
vec4 tilingOffset;
vec4 albedo;
vec4 albedoScaleAndCutoff;
vec4 pbrParams;
vec4 emissive;
vec4 emissiveScaleParam;
vec4 anisotropyParam;
vec4 rtYMapScale;
vec4 sinkingParams;
vec4 sinkingColor;
vec4 sinkingColorMapping;
};
#if USE_Y_MAP
uniform sampler2D rtYMap;
#endif
}%
CCProgram macro-remapping %{
// ui displayed macros
#pragma define-meta HAS_SECOND_UV
#pragma define-meta USE_TWOSIDE
#pragma define-meta IS_ANISOTROPY
#pragma define-meta USE_VERTEX_COLOR
#pragma define-meta FIX_ANISOTROPIC_ROTATION_MAP
#define CC_SURFACES_USE_SECOND_UV HAS_SECOND_UV
#define CC_SURFACES_USE_TWO_SIDED USE_TWOSIDE
#define CC_SURFACES_LIGHTING_ANISOTROPIC IS_ANISOTROPY
#define CC_SURFACES_USE_VERTEX_COLOR USE_VERTEX_COLOR
// depend on UI macros
#if IS_ANISOTROPY || USE_NORMAL_MAP
#define CC_SURFACES_USE_TANGENT_SPACE 1
#endif
// functionality for each effect
#define CC_SURFACES_LIGHTING_ANISOTROPIC_ENVCONVOLUTION_COUNT 31
}%
CCProgram surface-vertex %{
#include <builtin/uniforms/cc-local>
out vec4 v_ryYCol;
out vec4 v_inPos;
#if USE_Y_MAP
vec4 get_rtY_factor(vec3 localPos) { // 获取localPos对应位置值rtY因数
vec2 rtY_uv = vec2(0, 0);
rtY_uv.x = localPos.x / rtYMapScale.x + .5;
rtY_uv.y = localPos.z / rtYMapScale.z + .5;
vec4 rtYCol = texture(rtYMap, rtY_uv);
return rtYCol;
}
#endif
#define CC_SURFACES_VERTEX_MODIFY_LOCAL_POS
vec3 SurfacesVertexModifyLocalPos(in SurfacesStandardVertexIntermediate In)
{
#if USE_Y_MAP
v_ryYCol = get_rtY_factor(In.position.xyz);
float rtY_r_factor = v_ryYCol.r;
vec3 pos = vec3(In.position.xyz);
pos.y -= rtY_r_factor * sinkingParams.x;
return pos;
#else
return vec3(In.position.xyz);
#endif
}
#define CC_SURFACES_VERTEX_MODIFY_SHADOW_BIAS
vec2 SurfacesVertexModifyShadowBias(in SurfacesStandardVertexIntermediate In, vec2 originShadowBias)
{
return originShadowBias + vec2(anisotropyParam.z, 0.0);
}
#define CC_SURFACES_VERTEX_MODIFY_UV
void SurfacesVertexModifyUV(inout SurfacesStandardVertexIntermediate In)
{
In.texCoord = In.texCoord * tilingOffset.xy + tilingOffset.zw;
#if CC_SURFACES_USE_SECOND_UV
In.texCoord1 = In.texCoord1 * tilingOffset.xy + tilingOffset.zw;
#endif
}
}%
CCProgram surface-fragment %{
#include <builtin/uniforms/cc-local>
#include <builtin/uniforms/cc-global>
in vec4 v_ryYCol;
in vec4 v_inPos;
#if USE_Y_MAP
vec4 get_rtY_diffx_factor(vec3 localPos) { // 获取localPos对应位置值rtY因数
vec2 rtY_uv = vec2(0, 0);
rtY_uv.x = localPos.x / rtYMapScale.x + .5 + .01;
rtY_uv.y = localPos.z / rtYMapScale.z + .5;
vec4 rtYCol = texture(rtYMap, rtY_uv);
return rtYCol;
}
vec4 get_rtY_diffy_factor(vec3 localPos) { // 获取localPos对应位置值rtY因数
vec2 rtY_uv = vec2(0, 0);
rtY_uv.x = localPos.x / rtYMapScale.x + .5;
rtY_uv.y = localPos.z / rtYMapScale.z + .5 + .01;
vec4 rtYCol = texture(rtYMap, rtY_uv);
return rtYCol;
}
#endif
#if USE_ALBEDO_MAP
uniform sampler2D albedoMap;
#pragma define-meta ALBEDO_UV options([v_uv, v_uv1])
#endif
#if USE_NORMAL_MAP
uniform sampler2D normalMap;
#pragma define-meta NORMAL_UV options([v_uv, v_uv1])
#endif
#pragma define-meta DEFAULT_UV options([v_uv, v_uv1])
#if USE_PBR_MAP
uniform sampler2D pbrMap;
#endif
#if USE_OCCLUSION_MAP
uniform sampler2D occlusionMap;
#endif
#if USE_EMISSIVE_MAP
uniform sampler2D emissiveMap;
#pragma define-meta EMISSIVE_UV options([v_uv, v_uv1])
#endif
#if IS_ANISOTROPY && USE_ANISOTROPY_MAP
uniform sampler2D anisotropyMap;
uniform sampler2D anisotropyMapNearestFilter;
#endif
#pragma define OCCLUSION_CHANNEL r
#pragma define ROUGHNESS_CHANNEL g
#pragma define METALLIC_CHANNEL b
#pragma define SPECULAR_INTENSITY_CHANNEL a
#if USE_ALPHA_TEST
#pragma define-meta ALPHA_TEST_CHANNEL options([a, r])
#endif
#define CC_SURFACES_FRAGMENT_MODIFY_BASECOLOR_AND_TRANSPARENCY
vec4 SurfacesFragmentModifyBaseColorAndTransparency()
{
vec4 baseColor = albedo;
#if USE_VERTEX_COLOR
baseColor.rgb *= SRGBToLinear(FSInput_vertexColor.rgb); // use linear
baseColor.a *= FSInput_vertexColor.a;
#endif
#if USE_ALBEDO_MAP
vec4 texColor = texture(albedoMap, ALBEDO_UV);
texColor.rgb = SRGBToLinear(texColor.rgb);
baseColor *= texColor;
#endif
#if USE_ALPHA_TEST
if (baseColor.ALPHA_TEST_CHANNEL < albedoScaleAndCutoff.w) discard;
#endif
baseColor.rgb *= albedoScaleAndCutoff.xyz;
#if USE_Y_MAP
// 越深的地方得到越大的sinkingColorFactor值，越接近给出的额外颜色
float rtY_r_factor = v_ryYCol.r;
float sinkingColorFactor = smoothstep(sinkingColorMapping.x, sinkingColorMapping.y, rtY_r_factor);
baseColor = mix(baseColor, sinkingColor, sinkingColorFactor);
#endif
return baseColor;
}
#define CC_SURFACES_FRAGMENT_ALPHA_CLIP_ONLY
void SurfacesFragmentAlphaClipOnly()
{
#if USE_ALPHA_TEST
float alpha = albedo.ALPHA_TEST_CHANNEL;
#if USE_VERTEX_COLOR
alpha *= FSInput_vertexColor.a;
#endif
#if USE_ALBEDO_MAP
alpha = texture(albedoMap, ALBEDO_UV).ALPHA_TEST_CHANNEL;
#endif
if (alpha < albedoScaleAndCutoff.w) discard;
#endif
}
#define CC_SURFACES_FRAGMENT_MODIFY_WORLD_NORMAL
vec3 SurfacesFragmentModifyWorldNormal()
{
vec3 normal = FSInput_worldNormal;
#if USE_NORMAL_MAP
vec3 nmmp = texture(normalMap, NORMAL_UV).xyz - vec3(0.5);
normal = CalculateNormalFromTangentSpace(nmmp, emissiveScaleParam.w, normalize(normal.xyz), normalize(FSInput_worldTangent), FSInput_mirrorNormal);
#endif
float factorDiffX = get_rtY_diffx_factor(v_inPos.xyz).r;
float factorDiffY = get_rtY_diffy_factor(v_inPos.xyz).r;
float dx = factorDiffX - v_ryYCol.r;
float dy = factorDiffY - v_ryYCol.r;
vec3 n = cross(vec3(0.0, dy, 1.0),vec3(1.0, dx, 0.0));
n.x *= -1.0;
n.z *= -1.0;
// vec3 _normal = normalize((cc_matWorldIT * vec4(n, 0.0 + cc_time.x)).xyz); // << 就是这里，放开注释则报错
return normalize(normal);
}
#define CC_SURFACES_FRAGMENT_MODIFY_ANISOTROPY_PARAMS
vec4 SurfacesFragmentModifyAnisotropyParams(out float isRotation)
{
float anisotropyRotation = anisotropyParam.y * PI;
float anisotropyShape = anisotropyParam.x;
#if IS_ANISOTROPY && USE_ANISOTROPY_MAP
// Rotation angle should disable trilinear filtering
vec4 tex = texture(anisotropyMap, DEFAULT_UV);
anisotropyRotation = fract(anisotropyRotation * 0.5 + tex.y) * PI2;
// less value is better for SP exported shape
anisotropyShape *= tex.x;
#endif
// fix rotation map seam line of black and white
#if FIX_ANISOTROPIC_ROTATION_MAP
#if IS_ANISOTROPY && USE_ANISOTROPY_MAP
vec4 reference = texture(anisotropyMapNearestFilter, DEFAULT_UV);
vec2 oneTap = vec2(0.0, 1.0 / anisotropyParam.w);
float threshold = 0.2;
// scan more taps for stable result
vec4 sample1 = texture(anisotropyMapNearestFilter, DEFAULT_UV + oneTap);
vec4 sample2 = texture(anisotropyMapNearestFilter, DEFAULT_UV - oneTap);
if (abs(sample1.y - reference.y) > threshold || abs(sample2.y - reference.y) > threshold) {
tex.y = reference.y;
}
anisotropyRotation = fract(anisotropyParam.y * PI * 0.5 + tex.y) * PI2;
#endif
#endif
isRotation = 1.0;
return vec4(anisotropyShape, anisotropyRotation, 0.0, 0.0);
}
#define CC_SURFACES_FRAGMENT_MODIFY_EMISSIVE
vec3 SurfacesFragmentModifyEmissive()
{
vec3 emissive = emissive.rgb;
#if USE_EMISSIVE_MAP
emissive = SRGBToLinear(texture(emissiveMap, EMISSIVE_UV).rgb);
#endif
return emissive * emissiveScaleParam.xyz;
}
#define CC_SURFACES_FRAGMENT_MODIFY_PBRPARAMS
vec4 SurfacesFragmentModifyPBRParams()
{
vec4 pbr = pbrParams;
pbr.x = 1.0;
#if USE_PBR_MAP
vec4 res = texture(pbrMap, DEFAULT_UV);
pbr.x = mix(1.0, res.OCCLUSION_CHANNEL, pbrParams.x);
pbr.y *= res.ROUGHNESS_CHANNEL;
pbr.z *= res.METALLIC_CHANNEL;
pbr.w *= res.SPECULAR_INTENSITY_CHANNEL;
#endif
#if USE_OCCLUSION_MAP
pbr.x = mix(1.0, texture(occlusionMap, DEFAULT_UV).OCCLUSION_CHANNEL, pbrParams.x);
#endif
return pbr;
}
/*
// definition of SurfacesMaterialData structure with corresponding shading-model
#include <surfaces/data-structures/standard>
//see <surfaces/default-functions/XXXX> for more overrided functions, XXXX is shading-model name
#define CC_SURFACES_FRAGMENT_MODIFY_SHARED_DATA
void SurfacesFragmentModifySharedData(inout SurfacesMaterialData surfaceData)
{
}
// see <lighting-models/default-functions/XXXX> for more overrided functions, XXXX is lighting-model name
#include <lighting-models/includes/common>
#define CC_SURFACES_LIGHTING_MODIFY_FINAL_RESULT
void SurfacesLightingModifyFinalResult(inout LightingResult result, in LightingIntermediateData lightingData, in SurfacesMaterialData surfaceData, in LightingMiscData miscData)
{
}*/
}%
CCProgram standard-vs %{
precision highp float;
#include <builtin/uniforms/cc-local>
// 1. surface internal macros, for technique usage or remapping some user (material) macros to surface internal macros
#include <macro-remapping>
#include <surfaces/effect-macros/common-macros>
// 2. common include with corresponding shader stage, include before surface functions
#include <surfaces/includes/common-vs>
// 3. user surface functions that can use user (effect) parameters (ubo Constants)
// see surfaces/default-functions/xxx.chunk
#include <shared-ubos>
#include <surface-vertex>
// 4. surface include with corresponding shader stage and shading-model (optional)
#include <surfaces/includes/standard-vs>
// 5. shader entry with corresponding shader stage and technique usage/type
#include <shading-entries/main-functions/render-to-scene/vs>
}%
CCProgram shadow-caster-vs %{
precision highp float;
#include <macro-remapping>
#include <surfaces/effect-macros/render-to-shadowmap>
#include <surfaces/includes/common-vs>
#include <shared-ubos>
#include <surface-vertex>
#include <shading-entries/main-functions/render-to-shadowmap/vs>
}%
CCProgram planar-shadow-vs %{
precision highp float;
#include <macro-remapping>
#include <surfaces/effect-macros/render-planar-shadow>
#include <surfaces/includes/common-vs>
#include <shared-ubos>
#include <surface-vertex>
#include <shading-entries/main-functions/render-planar-shadow/vs>
}%
CCProgram standard-fs %{
// shading-model : standard
// lighting-model : standard (isotropy / anisotropy pbr)
// shader stage : fs
// technique usage/type : render-to-scene
precision highp float;
#include <builtin/uniforms/cc-local>
// 1. surface internal macros, for technique usage or remapping some user (material) macros to surface internal macros
#include <macro-remapping>
#include <surfaces/effect-macros/common-macros>
// 2. common include with corresponding shader stage, include before surface functions
#include <surfaces/includes/common-fs>
// 3. user surface functions that can use user (effect) parameters (ubo Constants)
// see surfaces/default-functions/xxx.chunk
#include <shared-ubos>
#include <surface-fragment>
// 4. lighting-model (optional)
#include <lighting-models/includes/standard>
// 5. surface include with corresponding shader stage and shading-model (optional)
#include <surfaces/includes/standard-fs>
// 6. shader entry with corresponding shader stage and technique usage/type
#include <shading-entries/main-functions/render-to-scene/fs>
}%
CCProgram shadow-caster-fs %{
precision highp float;
#include <macro-remapping>
#include <surfaces/effect-macros/render-to-shadowmap>
#include <surfaces/includes/common-fs>
#include <shared-ubos>
#include <surface-fragment>
#include <shading-entries/main-functions/render-to-shadowmap/fs>
}%
CCProgram planar-shadow-fs %{
precision highp float;
#include <macro-remapping>
#include <surfaces/effect-macros/render-planar-shadow>
#include <surfaces/includes/common-fs>
#include <shared-ubos>
#include <surface-fragment>
#include <shading-entries/main-functions/render-planar-shadow/fs>
}%
CCProgram reflect-map-fs %{
precision highp float;
#include <macro-remapping>
#include <surfaces/effect-macros/common-macros>
#include <surfaces/includes/common-fs>
#include <shared-ubos>
#include <surface-fragment>
#include <lighting-models/includes/standard>
#include <surfaces/includes/standard-fs>
#include <shading-entries/main-functions/render-to-reflectmap/fs>
}%
