3.8.7版本iOS原生闪退，CanvasRenderingContext2DDelegateImpl

martian_ma · 2026年01月29日 08:21

请教下这个闪退可能是什么原因？像是TTF字体的闪退，

Crashed: com.apple.main-thread
0 CoreFoundation 0x9c40 CFRelease + 44
1 CoreGraphics 0xcce4 CGGStateRelease + 96
2 CoreGraphics 0xcc70 CGGStackReset + 52
3 CoreGraphics 0xcbdc context_finalize + 112
4 CoreFoundation 0x25ec _CFRelease + 296
5 rollgame-mobile 0x2b1b14 -[CanvasRenderingContext2DDelegateImpl dealloc] + 1642628
6 rollgame-mobile 0x2b2834 cc::CanvasRenderingContext2DDelegate::~CanvasRenderingContext2DDelegate() + 1645988
7 rollgame-mobile 0x2b406c cc::CanvasRenderingContext2D::~CanvasRenderingContext2D() + 1652188
8 rollgame-mobile 0x2b4180 cc::CanvasRenderingContext2D::~CanvasRenderingContext2D() + 1652464
9 rollgame-mobile 0x10318c <deduplicated_symbol> + 4330992012
10 rollgame-mobile 0x10c8d8 se::Object::~Object() + 4331030744
11 rollgame-mobile 0xc02a98 v8::internal::GlobalHandles::InvokeFirstPassWeakCallbacks() + 2704460
12 rollgame-mobile 0xc4b064 v8::internal::Heap::PerformGarbageCollection(v8::internal::GarbageCollector, v8::internal::GarbageCollectionReason, char const*) + 3000856
13 rollgame-mobile 0xc48a18 v8::internal::Heap::CollectGarbage(v8::internal::AllocationSpace, v8::internal::GarbageCollectionReason, v8::GCCallbackFlags) + 2991052
14 rollgame-mobile 0xc48630 v8::internal::Heap::HandleGCRequest() + 2990052
15 rollgame-mobile 0xbf8e98 v8::internal::StackGuard::HandleInterrupts(v8::internal::StackGuard::InterruptLevel) + 2664524
16 rollgame-mobile 0xf5d8f0 v8::internal::Runtime_StackGuard(int, unsigned long*, v8::internal::Isolate*) + 6222500

song2008_2001 · 2026年01月29日 08:28

请问如何复现，是否有demo？

martian_ma · 2026年02月3日 06:29

Crashed: com.apple.main-thread
0 CoreFoundation 1 CoreGraphics 2 CoreGraphics 3 CoreGraphics 4 CoreGraphics 5 CoreGraphics 6 CoreGraphics 7 CoreGraphics 8 rollgame-mobile 9 rollgame-mobile 10 rollgame-mobile 11 rollgame-mobile 12 rollgame-mobile 13 rollgame-mobile 14 rollgame-mobile 15 rollgame-mobile 16 rollgame-mobile 17 rollgame-mobile 18 rollgame-mobile 19 rollgame-mobile 20 rollgame-mobile 21 rollgame-mobile 22 rollgame-mobile 23 rollgame-mobile 24 rollgame-mobile 25 rollgame-mobile 26 rollgame-mobile 27 rollgame-mobile 28 rollgame-mobile 29 rollgame-mobile 30 rollgame-mobile 31 rollgame-mobile 32 rollgame-mobile 33 rollgame-mobile 34 rollgame-mobile 35 rollgame-mobile 36 rollgame-mobile 37 rollgame-mobile 38 rollgame-mobile 39 rollgame-mobile 40 rollgame-mobile 41 rollgame-mobile 42 rollgame-mobile 43 rollgame-mobile 44 rollgame-mobile 45 rollgame-mobile 46 rollgame-mobile 47 rollgame-mobile 48 rollgame-mobile 49 rollgame-mobile 50 rollgame-mobile 51 rollgame-mobile 52 rollgame-mobile 53 rollgame-mobile 54 rollgame-mobile 55 rollgame-mobile 56 rollgame-mobile 57 rollgame-mobile 58 rollgame-mobile 59 rollgame-mobile 60 rollgame-mobile 61 rollgame-mobile 62 rollgame-mobile 63 rollgame-mobile 64 rollgame-mobile 65 rollgame-mobile 66 rollgame-mobile 67 rollgame-mobile 68 rollgame-mobile 69 rollgame-mobile 70 rollgame-mobile 71 rollgame-mobile 72 rollgame-mobile 73 rollgame-mobile 74 rollgame-mobile 75 QuartzCore 76 QuartzCore 77 QuartzCore 78 UIKitCore 79 UIKitCore 80 UpdateCycle 81 CoreFoundation 82 CoreFoundation 83 CoreFoundation 84 CoreFoundation 85 CoreFoundation 86 GraphicsServices 87 UIKitCore 88 UIKitCore 89 rollgame-mobile 90 ??? 0x9c40 CFRelease + 44
0x9130 CGGStateSetFillColor + 56
0x9170 CGGStateReset + 32
0x8f84 CGGStateCreate + 100
0x8e28 CGGStackCreateWithGState + 76
0x8d2c CGContextCreateWithDelegateAndInfo + 172
0x14b2c bitmap_context_create + 80
0x53384 CGBitmapContextCreate + 28
0x2b2578 -[CanvasRenderingContext2DDelegateImpl recreateBufferWithWidth:height:] + 1644360
0x2b4ccc cc::CanvasRenderingContext2D::fetchData() + 1654428
0x4c53ec js_cc_ICanvasRenderingContext2D_fetchData(se::State&) + 775460
0x10c3f4 jsbFunctionWrapper(v8::FunctionCallbackInfov8::Value const&, bool ()(se::State&), char const) + 4305486836
0x1075e14 Builtins_CallApiCallbackGeneric + 7368172
0x1074364 Builtins_InterpreterEntryTrampoline + 7361340
0x1074364 Builtins_InterpreterEntryTrampoline + 7361340
0x11a105c Builtins_GetNamedPropertyHandler + 8593460
0x1074364 Builtins_InterpreterEntryTrampoline + 7361340
0x1074364 Builtins_InterpreterEntryTrampoline + 7361340
0x1074364 Builtins_InterpreterEntryTrampoline + 7361340
0x107248c Builtins_JSEntryTrampoline + 7353444
0x1072174 Builtins_JSEntry + 7352652
0xbd6ac8 v8::internal::(anonymous namespace)::Invoke(v8::internal::Isolate*, v8::internal::(anonymous namespace)::InvokeParams const&) + 2521760
0xbd63d4 v8::internal::Execution::Call(v8::internal::Isolate*, v8::internal::Handlev8::internal::Object, v8::internal::Handlev8::internal::Object, int, v8::internal::Handlev8::internal::Object) + 2519980
0xb09308 v8::Object::CallAsFunction(v8::Localv8::Context, v8::Localv8::Value, int, v8::Localv8::Value) + 1680096
0x10e00c se::Object::call(std::__1::vector<se::Value, std::__1::allocatorse::Value> const&, se::Object*, se::Value*) + 4305494028
0x10c74c jsbConstructorWrapper(v8::FunctionCallbackInfov8::Value const&, bool ()(se::State&), void ()(se::Object*), se::Class*, char const*) + 4305487692
0xb47530 v8::internal::MaybeHandlev8::internal::Object v8::internal::(anonymous namespace)::HandleApiCallHelper(v8::internal::Isolate*, v8::internal::Handlev8::internal::HeapObject, v8::internal::Handlev8::internal::FunctionTemplateInfo, v8::internal::Handlev8::internal::Object, unsigned long*, int) + 1934600
0xb46e14 v8::internal::Builtin_HandleApiConstruct(int, unsigned long*, v8::internal::Isolate*) + 1932780
0x10f9518 Builtins_CEntry_Return1_ArgvOnStack_BuiltinExit + 7906544
0x107185c Builtins_JSBuiltinsConstructStub + 7350324
0x11acdf8 Builtins_ConstructHandler + 8642000
0x1074364 Builtins_InterpreterEntryTrampoline + 7361340
0x1074364 Builtins_InterpreterEntryTrampoline + 7361340
0x1074364 Builtins_InterpreterEntryTrampoline + 7361340
0x1074364 Builtins_InterpreterEntryTrampoline + 7361340
0x1074364 Builtins_InterpreterEntryTrampoline + 7361340
0x1074364 Builtins_InterpreterEntryTrampoline + 7361340
0x107248c Builtins_JSEntryTrampoline + 7353444
0x1072174 Builtins_JSEntry + 7352652
0xbd6ac8 v8::internal::(anonymous namespace)::Invoke(v8::internal::Isolate*, v8::internal::(anonymous namespace)::InvokeParams const&) + 2521760
0xbd63d4 v8::internal::Execution::Call(v8::internal::Isolate*, v8::internal::Handlev8::internal::Object, v8::internal::Handlev8::internal::Object, int, v8::internal::Handlev8::internal::Object) + 2519980
0xb09308 v8::Object::CallAsFunction(v8::Localv8::Context, v8::Localv8::Value, int, v8::Localv8::Value) + 1680096
0x1137a4 se::ScriptEngine::callFunction(se::Object*, char const*, unsigned int, se::Value*, se::Value*) + 4305516452
0x16d4f8 registerOnActiveNode(cc::Node*)::$_0::__invoke(cc::Node*, bool) + 313032
0x1c2a4c cc::Node::onHierarchyChangedBase(cc::Node*) + 662556
0x1c3124 cc::Node::setParent(cc::Node*, bool) + 664308
0x5b4250 js_cc_Node_setParent(se::State&) + 1753992
0x10c3f4 jsbFunctionWrapper(v8::FunctionCallbackInfov8::Value const&, bool ()(se::State&), char const) + 4305486836
0x1075e14 Builtins_CallApiCallbackGeneric + 7368172
0x1074364 Builtins_InterpreterEntryTrampoline + 7361340
0x1074364 Builtins_InterpreterEntryTrampoline + 7361340
0x10bd33c Builtins_StoreIC + 7660308
0x11a19b0 Builtins_SetNamedPropertyHandler + 8595848
0x1074364 Builtins_InterpreterEntryTrampoline + 7361340
0x1074364 Builtins_InterpreterEntryTrampoline + 7361340
0x111153c Builtins_ArrayForEach + 8004884
0x1074364 Builtins_InterpreterEntryTrampoline + 7361340
0x1074364 Builtins_InterpreterEntryTrampoline + 7361340
0x1074364 Builtins_InterpreterEntryTrampoline + 7361340
0x1074364 Builtins_InterpreterEntryTrampoline + 7361340
0x1074364 Builtins_InterpreterEntryTrampoline + 7361340
0x1074364 Builtins_InterpreterEntryTrampoline + 7361340
0x1074364 Builtins_InterpreterEntryTrampoline + 7361340
0x1074364 Builtins_InterpreterEntryTrampoline + 7361340
0x1074364 Builtins_InterpreterEntryTrampoline + 7361340
0x1074364 Builtins_InterpreterEntryTrampoline + 7361340
0x107248c Builtins_JSEntryTrampoline + 7353444
0x1072174 Builtins_JSEntry + 7352652
0xbd6ac8 v8::internal::(anonymous namespace)::Invoke(v8::internal::Isolate*, v8::internal::(anonymous namespace)::InvokeParams const&) + 2521760
0xbd63d4 v8::internal::Execution::Call(v8::internal::Isolate*, v8::internal::Handlev8::internal::Object, v8::internal::Handlev8::internal::Object, int, v8::internal::Handlev8::internal::Object) + 2519980
0xb09308 v8::Object::CallAsFunction(v8::Localv8::Context, v8::Localv8::Value, int, v8::Localv8::Value) + 1680096
0x10e00c se::Object::call(std::__1::vector<se::Value, std::_1::allocatorse::Value> const&, se::Object*, se::Value*) + 4305494028
0x105e30 cc::EventDispatcher::dispatchTickEvent(float) + 4305460784
0x21f094 cc::events::Tick::broadcast(float) + 1040996
0x21eef0 cc::Engine::tick() + 1040576
0xbe924 CA::Display::DisplayLinkItem::dispatch(CA::SignPost::Interval<(CA::SignPost::CAEventCode)835322056>&) + 64
0x9bf38 CA::Display::DisplayLink::dispatch_items(unsigned long long, unsigned long long, unsigned long long) + 880
0xaf770 CA::Display::DisplayLink::dispatch_deferred_display_links(unsigned int) + 360
0x7dee4 _UIUpdateSequenceRunNext + 128
0x7d374 schedulerStepScheduledMainSectionContinue + 60
0x1560 UC::DriverCore::continueProcessing() + 84
0x68f10 CFRUNLOOP_IS_CALLING_OUT_TO_A_SOURCE0_PERFORM_FUNCTION + 28
0x68e84 __CFRunLoopDoSource0 + 172
0x46acc __CFRunLoopDoSources0 + 232
0x1d6d8 __CFRunLoopRun + 820
0x1ca6c _CFRunLoopRunSpecificWithOptions + 532
0x1498 GSEventRunModal + 120
0x9ddf8 -[UIApplication _run] + 792
0x46e54 UIApplicationMain + 336
0x15534 main + 38 (main.mm:38)
0x19816ee28 (缺少)

martian_ma · 2026年02月3日 06:30

Crashed: com.apple.main-thread
0 rollgame-mobile 0x38916c cc::render::RenderData::~RenderData() + 568616
1 rollgame-mobile 0x388cf0 std::__1::vector<cc::render::RenderData, boost::container::pmr::polymorphic_allocatorcc::render::RenderData>::__move_assign(std::__1::vector<cc::render::RenderData, boost::container::pmr::polymorphic_allocatorcc::render::RenderData>&, std::__1::integral_constant<bool, false>) + 567468
2 rollgame-mobile 0x37e684 cc::render::RenderGraph::operator=(cc::render::RenderGraph&&) + 524864
3 rollgame-mobile 0x37e4a8 cc::render::NativePipeline::beginSetup() + 524388
4 rollgame-mobile 0x598c18 js_cc_render_BasicPipeline_beginSetup(se::State&) + 1641808
5 rollgame-mobile 0x10c3f4 jsbFunctionWrapper(v8::FunctionCallbackInfov8::Value const&, bool ()(se::State&), char const) + 4307321844
6 rollgame-mobile 0x1075e14 Builtins_CallApiCallbackGeneric + 7368172
7 rollgame-mobile 0x1074364 Builtins_InterpreterEntryTrampoline + 7361340
8 rollgame-mobile 0x1074364 Builtins_InterpreterEntryTrampoline + 7361340
9 rollgame-mobile 0x107248c Builtins_JSEntryTrampoline + 7353444
10 rollgame-mobile 0x1072174 Builtins_JSEntry + 7352652
11 rollgame-mobile 0xbd6ac8 v8::internal::(anonymous namespace)::Invoke(v8::internal::Isolate*, v8::internal::(anonymous namespace)::InvokeParams const&) + 2521760
12 rollgame-mobile 0xbd63d4 v8::internal::Execution::Call(v8::internal::Isolate*, v8::internal::Handlev8::internal::Object, v8::internal::Handlev8::internal::Object, int, v8::internal::Handlev8::internal::Object) + 2519980
13 rollgame-mobile 0xb09308 v8::Object::CallAsFunction(v8::Localv8::Context, v8::Localv8::Value, int, v8::Localv8::Value) + 1680096
14 rollgame-mobile 0x10e00c se::Object::call(std::__1::vector<se::Value, std::__1::allocatorse::Value> const&, se::Object*, se::Value*) + 4307329036
15 rollgame-mobile 0x387894 cc::render::NativePipeline::render(std::__1::vector<cc::scene::Camera*, std::__1::allocatorcc::scene::Camera*> const&) + 562256
16 rollgame-mobile 0x18ee60 cc::Root::frameMoveEnd() + 450608
17 rollgame-mobile 0x5bc76c js_cc_Root_frameMove(se::State&) + 1788068
18 rollgame-mobile 0x10c3f4 jsbFunctionWrapper(v8::FunctionCallbackInfov8::Value const&, bool ()(se::State&), char const) + 4307321844
19 rollgame-mobile 0x1075e14 Builtins_CallApiCallbackGeneric + 7368172
20 rollgame-mobile 0x1074364 Builtins_InterpreterEntryTrampoline + 7361340
21 rollgame-mobile 0x1074364 Builtins_InterpreterEntryTrampoline + 7361340
22 rollgame-mobile 0x1074364 Builtins_InterpreterEntryTrampoline + 7361340
23 rollgame-mobile 0x1074364 Builtins_InterpreterEntryTrampoline + 7361340
24 rollgame-mobile 0x1074364 Builtins_InterpreterEntryTrampoline + 7361340
25 rollgame-mobile 0x107248c Builtins_JSEntryTrampoline + 7353444
26 rollgame-mobile 0x1072174 Builtins_JSEntry + 7352652
27 rollgame-mobile 0xbd6ac8 v8::internal::(anonymous namespace)::Invoke(v8::internal::Isolate*, v8::internal::(anonymous namespace)::InvokeParams const&) + 2521760
28 rollgame-mobile 0xbd63d4 v8::internal::Execution::Call(v8::internal::Isolate*, v8::internal::Handlev8::internal::Object, v8::internal::Handlev8::internal::Object, int, v8::internal::Handlev8::internal::Object) + 2519980
29 rollgame-mobile 0xb09308 v8::Object::CallAsFunction(v8::Localv8::Context, v8::Localv8::Value, int, v8::Localv8::Value) + 1680096
30 rollgame-mobile 0x10e00c se::Object::call(std::__1::vector<se::Value, std::_1::allocatorse::Value> const&, se::Object*, se::Value*) + 4307329036
31 rollgame-mobile 0x105e30 cc::EventDispatcher::dispatchTickEvent(float) + 4307295792
32 rollgame-mobile 0x21f094 cc::events::Tick::broadcast(float) + 1040996
33 rollgame-mobile 0x21eef0 cc::Engine::tick() + 1040576
34 QuartzCore 0xbe924 CA::Display::DisplayLinkItem::dispatch(CA::SignPost::Interval<(CA::SignPost::CAEventCode)835322056>&) + 64
35 QuartzCore 0x9bf38 CA::Display::DisplayLink::dispatch_items(unsigned long long, unsigned long long, unsigned long long) + 880
36 QuartzCore 0xaf770 CA::Display::DisplayLink::dispatch_deferred_display_links(unsigned int) + 360
37 UIKitCore 0x7dee4 _UIUpdateSequenceRunNext + 128
38 UIKitCore 0x7d374 schedulerStepScheduledMainSectionContinue + 60
39 UpdateCycle 0x1560 UC::DriverCore::continueProcessing() + 84
40 CoreFoundation 0x68f10 CFRUNLOOP_IS_CALLING_OUT_TO_A_SOURCE0_PERFORM_FUNCTION + 28
41 CoreFoundation 0x68e84 __CFRunLoopDoSource0 + 172
42 CoreFoundation 0x46acc __CFRunLoopDoSources0 + 232
43 CoreFoundation 0x1d6d8 __CFRunLoopRun + 820
44 CoreFoundation 0x1ca6c _CFRunLoopRunSpecificWithOptions + 532
45 GraphicsServices 0x1498 GSEventRunModal + 120
46 UIKitCore 0x9ddf8 -[UIApplication _run] + 792
47 UIKitCore 0x46e54 UIApplicationMain + 336
48 rollgame-mobile 0x15534 main + 38 (main.mm:38)
49 ??? 0x19816ee28 (缺少)

martian_ma · 2026年02月3日 06:38

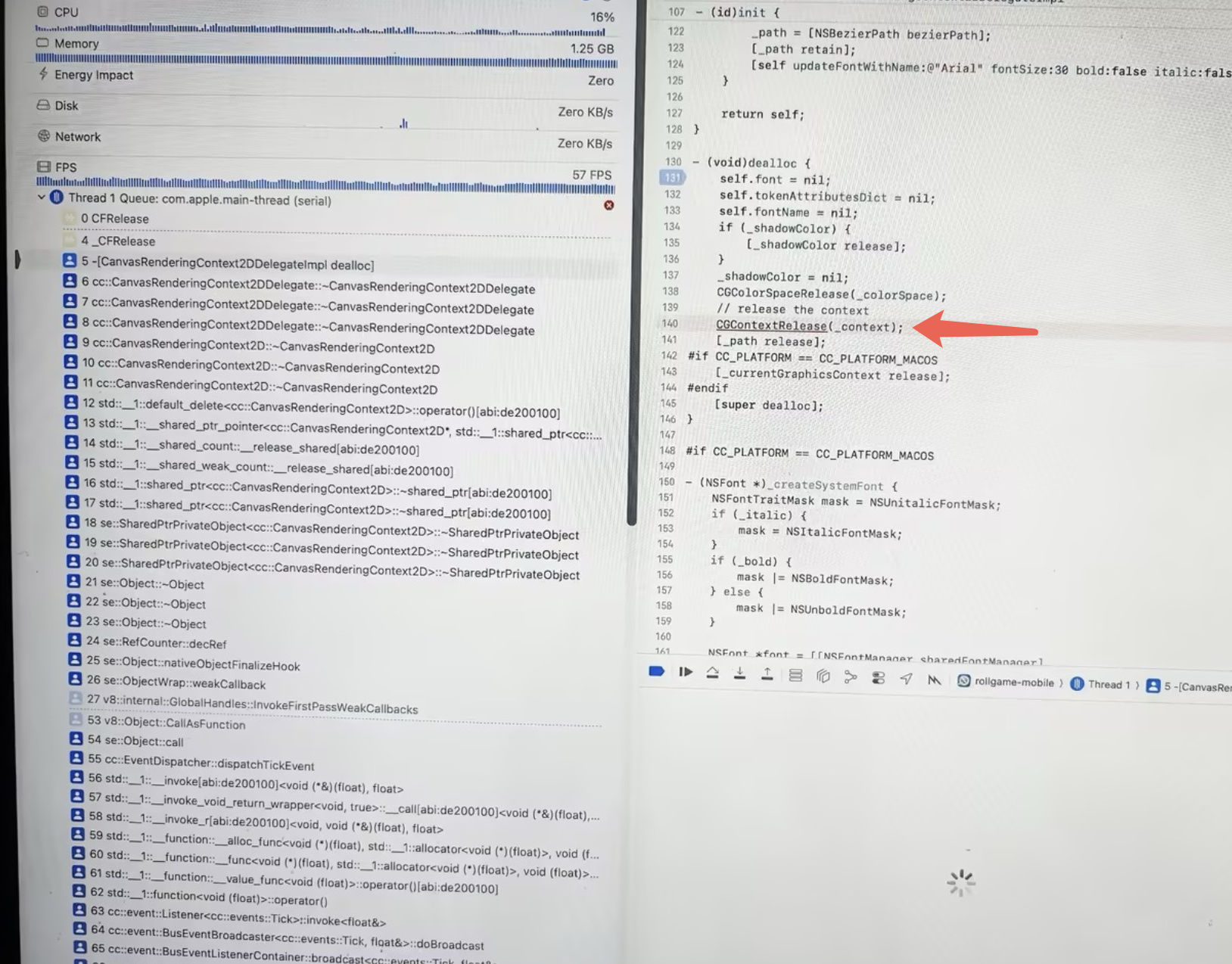

3.8.8原生iOS，现在有2个闪退，堆栈就是上面的，应该是野指针了，但是不知道怎么排查哪个对象什么时候被释放了？怎么和TS层对应起来呢？

大佬们给点排查建议吧

song2008_2001 · 2026年02月3日 06:43

是否必现，怎么操作的？

martian_ma · 2026年02月3日 06:46

要玩很久，大概20分钟-2小时才有可能会出，就是还没定位到？
像是某些节点被错误释放了，但是不知道怎么定位，想请教一些定位技巧。
怎么把这个闪退的类，和节点关联起来呢？

song2008_2001 · 2026年02月3日 07:34

建议启用 Address Sanitizer 然后重新debug
