版本：3.7.0
最近想把引擎弄到Node环境下跑一下逻辑（不渲染）。
装了jsdom来模拟dom环境。
装了SystemJs来导入发布后的web平台引擎的cc.js文件。
const cc: typeof ccModule = await SystemJs.System.import('./src/cocos/cc.js');
然后在game.init的时候使用HEADLESS模式，

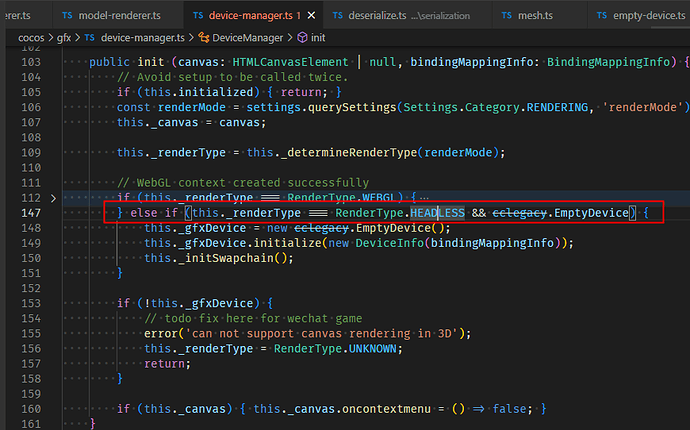

看device-manager中有支持RenderType.HEADLESS模式，但是，在发布web平台后，EmptyDevice这个对象却没有被导出来，请大佬赐教。
await cc.game.init({
overrideSettings: {
rendering: {
renderMode: 3 // LegacyRenderMode.HEADLESS
}
}, exactFitScreen: false
});
请问最终解决了吗？
自己解决的，从源代码里面，把HEADLESS对应的启动设备对象抄出来。
好的，感谢
最近看到很多宝子们在研究这个HEADLESS模式，秉承着官方不做我来做的犟驴理念，我把我自己做过的相关代码从项目里扣出来，贴给大家玩玩。

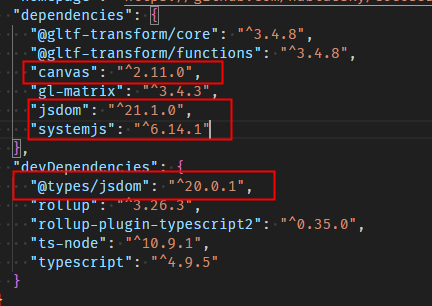

首先，package.json依赖有：
canvas
jsdom
systemjs
@types/jsdom 因为我开发环境是ts，所以加了这个。
然后把功能拆成三个部分：
第一个部分：EmptyDevice类， 这个类的代码直接可以从cocos引擎里面抄到。
export class EmptyTexture extends cc.gfx.Texture {
public initialize(info: Readonly<cc.gfx.TextureInfo> | Readonly<cc.gfx.TextureViewInfo>, isSwapchainTexture?: boolean) {
let texInfo = info as Readonly<cc.gfx.TextureInfo>;
if ('texture' in info) {
texInfo = info.texture.info;
this._isTextureView = true;
this._viewInfo.copy(info);
} else {
this._viewInfo.texture = this;
this._viewInfo.type = info.type;
this._viewInfo.format = info.format;
this._viewInfo.baseLevel = 0;
this._viewInfo.levelCount = 1;
this._viewInfo.baseLayer = 0;
this._viewInfo.layerCount = 1;
}
this._info.copy(texInfo);
this._isPowerOf2 = cc.gfx.IsPowerOf2(this._info.width) && cc.gfx.IsPowerOf2(this._info.height);
this._size = cc.gfx.FormatSurfaceSize(this._info.format, this.width, this.height,
this.depth, this._info.levelCount) * this._info.layerCount;
}
public destroy() { }
public getGLTextureHandle(): number {
return 0;
}
public resize(width: number, height: number) {
this._info.width = width;
this._info.height = height;
}
protected initAsSwapchainTexture(info: cc.gfx.ISwapchainTextureInfo) { }
}
export class EmptyDescriptorSet extends cc.gfx.DescriptorSet {
public initialize(info: Readonly<cc.gfx.DescriptorSetInfo>) {
this._layout = info.layout;
}
public destroy() { }
public update() { }
}
export class EmptyShader extends cc.gfx.Shader {
public initialize(info: Readonly<cc.gfx.ShaderInfo>) {
console.log(`Shader '${info.name}' compilation succeeded.`);
}
public destroy() { }
}
export class EmptyInputAssembler extends cc.gfx.InputAssembler {
public initialize(info: Readonly<cc.gfx.InputAssemblerInfo>) {
this._attributes = info.attributes;
this._attributesHash = this.computeAttributesHash();
this._vertexBuffers = info.vertexBuffers;
if (info.indexBuffer) {
this._indexBuffer = info.indexBuffer;
this._drawInfo.indexCount = this._indexBuffer.size / this._indexBuffer.stride;
this._drawInfo.firstIndex = 0;
} else {
const vertBuff = this._vertexBuffers[0];
this._drawInfo.vertexCount = vertBuff.size / vertBuff.stride;
this._drawInfo.firstVertex = 0;
this._drawInfo.vertexOffset = 0;
}
}
public destroy() { }
}
export class EmptyPipelineLayout extends cc.gfx.PipelineLayout {
public initialize(info: Readonly<cc.gfx.PipelineLayoutInfo>) {
Array.prototype.push.apply(this._setLayouts, info.setLayouts);
}
public destroy() { }
}
export class EmptyPipelineState extends cc.gfx.PipelineState {
public initialize(info: Readonly<cc.gfx.PipelineStateInfo>) {
this._primitive = info.primitive;
this._shader = info.shader;
this._pipelineLayout = info.pipelineLayout;
const bs = this._bs;
if (info.blendState) {
const bsInfo = info.blendState;
const { targets } = bsInfo;
if (targets) {
targets.forEach((t, i) => {
bs.setTarget(i, t);
});
}
if (bsInfo.isA2C !== undefined) { bs.isA2C = bsInfo.isA2C; }
if (bsInfo.isIndepend !== undefined) { bs.isIndepend = bsInfo.isIndepend; }
if (bsInfo.blendColor !== undefined) { bs.blendColor = bsInfo.blendColor; }
}
Object.assign(this._rs, info.rasterizerState);
Object.assign(this._dss, info.depthStencilState);
this._is = info.inputState;
this._renderPass = info.renderPass;
this._dynamicStates = info.dynamicStates;
}
public destroy() { }
}
export class EmptyQueue extends cc.gfx.Queue {
public initialize(info: Readonly<cc.gfx.QueueInfo>) {
this._type = info.type;
}
public destroy() { }
public submit(cmdBuffs: Readonly<cc.gfx.CommandBuffer[]>) { }
}
export class EmptyRenderPass extends cc.gfx.RenderPass {
public initialize(info: Readonly<cc.gfx.RenderPassInfo>) {
this._colorInfos = info.colorAttachments;
this._depthStencilInfo = info.depthStencilAttachment;
this._subpasses = info.subpasses;
this._hash = this.computeHash();
}
public destroy() { }
}
export class EmptyFramebuffer extends cc.gfx.Framebuffer {
public initialize(info: Readonly<cc.gfx.FramebufferInfo>) {
this._renderPass = info.renderPass;
this._colorTextures = info.colorTextures || [];
this._depthStencilTexture = info.depthStencilTexture || null;
}
public destroy() { }
}
export class EmptyDescriptorSetLayout extends cc.gfx.DescriptorSetLayout {
public initialize(info: Readonly<cc.gfx.DescriptorSetLayoutInfo>) {
Array.prototype.push.apply(this._bindings, info.bindings);
}
public destroy() { }
}
export class EmptySwapchain extends cc.gfx.Swapchain {
public initialize(info: Readonly<cc.gfx.SwapchainInfo>) {
this._colorTexture = new EmptyTexture();
// @ts-expect-error(2445) private initializer
this._colorTexture.initAsSwapchainTexture({
swapchain: this,
format: cc.gfx.Format.RGBA8,
width: info.width,
height: info.height,
});
this._depthStencilTexture = new EmptyTexture();
// @ts-expect-error(2445) private initializer
this._depthStencilTexture.initAsSwapchainTexture({
swapchain: this,
format: cc.gfx.Format.DEPTH_STENCIL,
width: info.width,
height: info.height,
});
}
public destroy(): void { }
public resize(width: number, height: number, surfaceTransform: cc.gfx.SurfaceTransform) { }
}
export class EmptyBuffer extends cc.gfx.Buffer {
public initialize(info: Readonly<cc.gfx.BufferInfo> | Readonly<cc.gfx.BufferViewInfo>) {
if ('buffer' in info) { // buffer view
this._isBufferView = true;
const buffer = info.buffer as EmptyBuffer;
this._usage = buffer.usage;
this._memUsage = buffer.memUsage;
this._size = this._stride = info.range;
this._count = 1;
this._flags = buffer.flags;
} else { // native buffer
this._usage = info.usage;
this._memUsage = info.memUsage;
this._size = info.size;
this._stride = Math.max(info.stride || this._size, 1);
this._count = this._size / this._stride;
this._flags = info.flags;
}
}
public destroy() { }
public resize(size: number) { }
public update(buffer: Readonly<cc.gfx.BufferSource>, size?: number) { }
}
export class EmptyCommandBuffer extends cc.gfx.CommandBuffer {
public initialize(info: Readonly<cc.gfx.CommandBufferInfo>) {
this._type = info.type;
this._queue = info.queue;
}
public destroy() { }
public begin(renderPass?: cc.gfx.RenderPass, subpass = 0, frameBuffer?: cc.gfx.Framebuffer) { }
public end() { }
public beginRenderPass(renderPass: cc.gfx.RenderPass, framebuffer: cc.gfx.Framebuffer, renderArea: Readonly<cc.gfx.Rect>,
clearColors: Readonly<cc.gfx.Color[]>, clearDepth: number, clearStencil: number) { }
public endRenderPass() { }
public bindPipelineState(pipelineState: cc.gfx.PipelineState) { }
public bindDescriptorSet(set: number, descriptorSet: cc.gfx.DescriptorSet, dynamicOffsets?: Readonly<number[]>) { }
public bindInputAssembler(inputAssembler: cc.gfx.InputAssembler) { }
public setViewport(viewport: Readonly<cc.gfx.Viewport>) { }
public setScissor(scissor: Readonly<cc.gfx.Rect>) { }
public setLineWidth(lineWidth: number) { }
public setDepthBias(depthBiasConstantFactor: number, depthBiasClamp: number, depthBiasSlopeFactor: number) { }
public setBlendConstants(blendConstants: Readonly<cc.gfx.Color>) { }
public setDepthBound(minDepthBounds: number, maxDepthBounds: number) { }
public setStencilWriteMask(face: cc.gfx.StencilFace, writeMask: number) { }
public setStencilCompareMask(face: cc.gfx.StencilFace, reference: number, compareMask: number) { }
public draw(infoOrAssembler: Readonly<cc.gfx.DrawInfo> | Readonly<cc.gfx.InputAssembler>) { }
public updateBuffer(buffer: cc.gfx.Buffer, data: Readonly<BufferSource>, size?: number) { }
public copyBuffersToTexture(buffers: Readonly<ArrayBufferView[]>, texture: cc.gfx.Texture, regions: Readonly<cc.gfx.BufferTextureCopy[]>) { }
public execute(cmdBuffs: Readonly<cc.gfx.CommandBuffer[]>, count: number) { }
public pipelineBarrier(GeneralBarrier: Readonly<cc.gfx.GeneralBarrier>, bufferBarriers?: any,
buffers?: Readonly<cc.gfx.Buffer[]>,
textureBarriers?: Readonly<cc.gfx.TextureBarrier[]>,
textures?: Readonly<cc.gfx.Texture[]>) { }
public blitTexture(srcTexture: Readonly<cc.gfx.Texture>, dstTexture: cc.gfx.Texture, regions: Readonly<cc.gfx.TextureBlit[]>, filter: cc.gfx.Filter): void { }
}
export class EmptyDevice extends cc.gfx.Device {
private _swapchain: EmptySwapchain | null = null;
initialize(info: Readonly<cc.gfx.DeviceInfo>): boolean {
this._gfxAPI = 0;
this._bindingMappingInfo = info.bindingMappingInfo;
this._queue = this.createQueue(new cc.gfx.QueueInfo(cc.gfx.QueueType.GRAPHICS));
this._cmdBuff = this.createCommandBuffer(new cc.gfx.CommandBufferInfo(this._queue));
return true;
}
destroy(): void {
if (this._queue) {
this._queue.destroy();
this._queue = null;
}
if (this._cmdBuff) {
this._cmdBuff.destroy();
this._cmdBuff = null;
}
this._swapchain = null;
}
acquire(swapchains: readonly cc.gfx.Swapchain[]): void { }
present(): void { }
flushCommands(cmdBuffs: readonly cc.gfx.CommandBuffer[]): void { }
createCommandBuffer(info: Readonly<cc.gfx.CommandBufferInfo>): cc.gfx.CommandBuffer {
const cmdBuff = new EmptyCommandBuffer();
cmdBuff.initialize(info);
return cmdBuff;
}
createSwapchain(info: Readonly<cc.gfx.SwapchainInfo>): cc.gfx.Swapchain {
const swapchain = new EmptySwapchain();
this._swapchain = swapchain;
swapchain.initialize(info);
return swapchain;
}
createBuffer(info: Readonly<cc.gfx.BufferInfo> | cc.gfx.BufferViewInfo): cc.gfx.Buffer {
const buffer = new EmptyBuffer();
buffer.initialize(info);
return buffer;
}
createTexture(info: Readonly<cc.gfx.TextureInfo> | cc.gfx.TextureViewInfo): cc.gfx.Texture {
const texture = new EmptyTexture();
texture.initialize(info);
return texture;
}
createDescriptorSet(info: Readonly<cc.gfx.DescriptorSetInfo>): cc.gfx.DescriptorSet {
const descriptorSet = new EmptyDescriptorSet();
descriptorSet.initialize(info);
return descriptorSet;
}
createShader(info: Readonly<cc.gfx.ShaderInfo>): cc.gfx.Shader {
const shader = new EmptyShader();
shader.initialize(info);
return shader;
}
createInputAssembler(info: Readonly<cc.gfx.InputAssemblerInfo>): cc.gfx.InputAssembler {
const inputAssembler = new EmptyInputAssembler();
inputAssembler.initialize(info);
return inputAssembler;
}
createRenderPass(info: Readonly<cc.gfx.RenderPassInfo>): cc.gfx.RenderPass {
const renderPass = new EmptyRenderPass();
renderPass.initialize(info);
return renderPass;
}
createFramebuffer(info: Readonly<cc.gfx.FramebufferInfo>): cc.gfx.Framebuffer {
const framebuffer = new EmptyFramebuffer();
framebuffer.initialize(info);
return framebuffer;
}
createDescriptorSetLayout(info: Readonly<cc.gfx.DescriptorSetLayoutInfo>): cc.gfx.DescriptorSetLayout {
const descriptorSetLayout = new EmptyDescriptorSetLayout();
descriptorSetLayout.initialize(info);
return descriptorSetLayout;
}
createPipelineLayout(info: Readonly<cc.gfx.PipelineLayoutInfo>): cc.gfx.PipelineLayout {
const pipelineLayout = new EmptyPipelineLayout();
pipelineLayout.initialize(info);
return pipelineLayout;
}
createPipelineState(info: Readonly<cc.gfx.PipelineStateInfo>): cc.gfx.PipelineState {
const pipelineState = new EmptyPipelineState();
pipelineState.initialize(info);
return pipelineState;
}
createQueue(info: Readonly<cc.gfx.QueueInfo>): cc.gfx.Queue {
const queue = new EmptyQueue();
queue.initialize(info);
return queue;
}
getSampler(info: Readonly<cc.gfx.SamplerInfo>): cc.gfx.Sampler {
const hash = cc.gfx.Sampler.computeHash(info);
if (!this._samplers.has(hash)) {
this._samplers.set(hash, new cc.gfx.Sampler(info, hash));
}
return this._samplers.get(hash)!;
}
getSwapchains(): readonly cc.gfx.Swapchain[] {
return [this._swapchain as cc.gfx.Swapchain];
}
getGeneralBarrier(info: Readonly<cc.gfx.GeneralBarrierInfo>): cc.gfx.GeneralBarrier {
const hash = cc.gfx.GeneralBarrier.computeHash(info);
if (!this._generalBarrierss.has(hash)) {
this._generalBarrierss.set(hash, new cc.gfx.GeneralBarrier(info, hash));
}
return this._generalBarrierss.get(hash)!;
}
getTextureBarrier(info: Readonly<cc.gfx.TextureBarrierInfo>): cc.gfx.TextureBarrier {
const hash = cc.gfx.TextureBarrier.computeHash(info);
if (!this._textureBarriers.has(hash)) {
this._textureBarriers.set(hash, new cc.gfx.TextureBarrier(info, hash));
}
return this._textureBarriers.get(hash)!;
}
getBufferBarrier(info: Readonly<cc.gfx.BufferBarrierInfo>): cc.__private._cocos_gfx_base_states_buffer_barrier__BufferBarrier {
const hash = cc.__private._cocos_gfx_base_states_buffer_barrier__BufferBarrier.computeHash(info);
if (!this._bufferBarriers.has(hash)) {
this._bufferBarriers.set(hash, new cc.__private._cocos_gfx_base_states_buffer_barrier__BufferBarrier(info, hash));
}
return this._bufferBarriers.get(hash)!;
}
copyBuffersToTexture(buffers: readonly ArrayBufferView[], texture: cc.gfx.Texture, regions: readonly cc.gfx.BufferTextureCopy[]): void {
}
copyTextureToBuffers(texture: Readonly<cc.gfx.Texture>, buffers: ArrayBufferView[], regions: readonly cc.gfx.BufferTextureCopy[]): void {
}
copyTexImagesToTexture(texImages: readonly TexImageSource[], texture: cc.gfx.Texture, regions: readonly cc.gfx.BufferTextureCopy[]): void {
}
}
第二部分：Environment类，这个类就是根据跑起来的时候，哪里报的错，就补的哪里：
import { JSDOM } from "jsdom";
import "systemjs";
declare global {
type ImportFn = <T>(moduleId: string, parentUrl?: string) => Promise<T>;
interface System { import: ImportFn; }
const System: System;
}
if (typeof window == "undefined") {
const dom = new JSDOM(`<!doctype html><html><body>
<div id="GameDiv" cc_exact_fit_screen="true">
<div id="Cocos3dGameContainer">
<canvas id="GameCanvas" oncontextmenu="event.preventDefault()" tabindex="99"></canvas>
</div>
</body></html>`, {
// url: "https://example.org/",
referrer: "https://example.com/",
contentType: "text/html",
includeNodeLocations: true,
storageQuota: 10000000,
resources: "usable",
});
globalThis.window = dom.window as any;
globalThis.document = dom.window.document;
globalThis.navigator = dom.window.navigator;
globalThis.HTMLElement = dom.window.HTMLElement;
globalThis.HTMLImageElement = dom.window.HTMLImageElement;
globalThis.HTMLCanvasElement = dom.window.HTMLCanvasElement;
}
if (typeof performance == "undefined") {
const hooks = await import("perf_hooks");
globalThis.performance = hooks.performance as any;
}
if (typeof requestAnimationFrame == "undefined") {
const requestAnimationFrame = (fn: Function) => fn();
globalThis.requestAnimationFrame = requestAnimationFrame;
}
最后这部分就是启动Cocos引擎的代码了：我是放到一个单独的Cocos.ts类里面.
/// <reference path="cocos-engine/cc.d.ts"/>
/// <reference path="cocos-engine/cce.d.ts"/>
import "./Environment";
async function initCocos() {
global.ccModule = await System.import<typeof cc>("./src/cocos-engine/cc.js");
globalThis.cc = Object.assign(window.cc, window.cc, global.ccModule);
if (typeof cc.EmptyDevice == "undefined") {
const { EmptyDevice } = await import("./EmptyDevice");
cc.EmptyDevice = EmptyDevice;
}
await cc.game.init({ overrideSettings: { rendering: { renderMode: 3 } }, exactFitScreen: false });
// cc.game.run();
}
感谢
mark！
66666！
TypeError: Cannot read properties of undefined (reading ‘constructor’)
at getOrCreateClassStash (C:\ProgramData\cocos\editors\Creator\3.8.1\resources\resources\3d\engine\bin.cache\dev\editor\bundled\index.js:299161:40)
at normalized (C:\ProgramData\cocos\editors\Creator\3.8.1\resources\resources\3d\engine\bin.cache\dev\editor\bundled\index.js:299100:26)
at __decorateElement (file:///g:/x1-dev/x1_proj_cli/client/assets/scripts/core/ui/root/UIScreenTransitionRoot.ts:1:2161)
at file:///g:/x1-dev/x1_proj_cli/client/assets/scripts/core/ui/root/UIScreenTransitionRoot.ts:1:4497
大佬有遇到装饰器问题吗？
这种情况没有遇到，估计是UIScreenTransitionRoot这个对象导致，你可以查查原因。
我使用的功能比较简单，很多没有深入。
import { Tween } from "cc";
import { UIOpacity } from “cc”;
import { _decorator } from ‘cc’;
import { UIViewRoot } from “…/base/UIViewRoot”;
const { ccclass, property } = _decorator;
@ccclass(“UIScreenTransitionRoot”)
export class UIScreenTransitionRoot extends UIViewRoot {
//@property(UIOpacity)
public opacity: UIOpacity = null!;
private _opacityTween: Tween<any> = null!;
public async playBlackEnterTransition(duration = 0.3): Promise<void> {
if (this._opacityTween) {
this.destroyTween(this._opacityTween)
}
this.opacity.opacity = 255;
this._opacityTween = this.createTween(this.opacity).to(duration, { opacity: 0 });
return new Promise<void>((resolve, _) => {
this.scheduleOnce(() => {
resolve();
}, duration)
});
}
public async playBlackExitTransition(duration = 0.3): Promise<void> {
if (this._opacityTween) {
this.destroyTween(this._opacityTween)
}
this.opacity.opacity = 0;
this._opacityTween = this.createTween(this.opacity).to(duration, { opacity: 255 });
return new Promise<void>((resolve, _) => {
this.scheduleOnce(() => {
resolve();
}, duration)
});
}
public clear(): void {
}
}
//@property(UIOpacity)
这行注掉就不会报错，装饰器的属性需要什么初始化吗？
