fairygui-3.8适配方案分享

Creator 3.x
#22

fgui本身就做了dc优化，但是目前有bug listview隐藏的元素也会提交渲染

#23

谢谢分享 请问ccc3.8和ccc.3.8 delay有什么区别 ？

#24

现在没区别了，已经合并，但是delay忘记删了

#25

Mark！！！！

#26

感谢分享。我参考了很多你的修改，写入官方版本了 :grinning:

#27

哇偶，正主来了！可以的，我也不想一直维护，坐等官方版本 :grinning:

#28

对了。有计划吧资源延迟加载集成进去么？

#29

延迟加载迟点再研究了

#30

好的。你只要支持延迟加载和资源卸载，我就可以不维护了 :grinning: :grinning: :grinning: :grinning:

#31

DEMO打开，但是报错说找不到fairygui-cc是咋回事

image2560×1504 539 KB

#32

应该是没有安装fairygui的npm包

#33

确实，感谢

#34

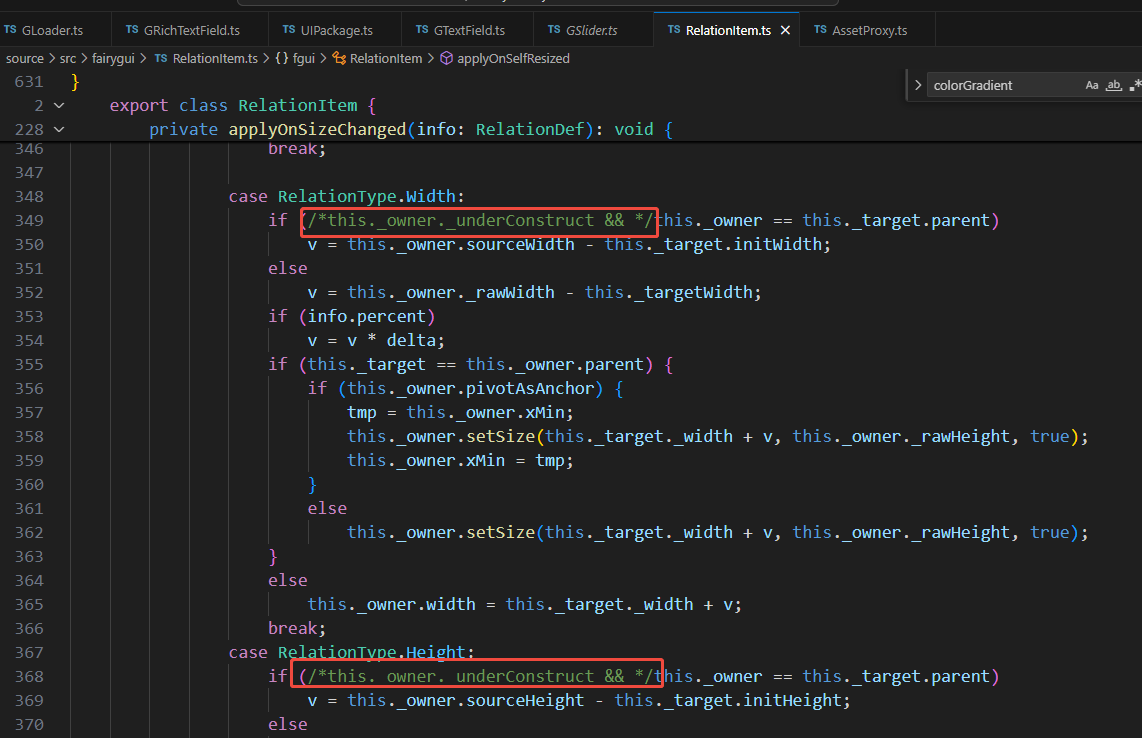

延迟加载，当出现关联宽高时，会导致宽高变得比预期的宽，原因是：

image839×135 6.55 KB
不使用延迟关联判断走第一条分支，但是使用延迟加载，构造流程已经结束了会走到第二条分支，延迟加载资源加载完成后，进入loader url 设置完后，auto 重新设置size image , 就会进入 relation 中第二个判断流程中，导致结果不符合预期

#35

啊。最近没时间看这个。能提一个pr么？

#36

我这边还在研究下看下怎么解决，目前还没有头绪

#37

fgui富文本的bug, 是多加了LabelOutline组件导致的., 这个 LabelOutline 组件会自动创建Label组件.

#38

这个问题，在fairygui-layabox 分支上看到了解决方法

image1142×738 51 KB

#39

试过没。有用吗

#40

试过了，没问题

#42

在GObject 的构造中添加一个类似unity 中editor 模式下，编辑修改基本属性的组件
if (EDITOR) {

        // 编辑器模式下自动添加编辑器组件

        this._node.addComponent(FGUIObjectEditor);

   }

import { _decorator, CCFloat, Color, Component, Vec2 } from 'cc';

import { GObject } from './GObject';

import { EDITOR } from 'cc/env';

const { ccclass, property, executeInEditMode} = _decorator;

@ccclass

@executeInEditMode

export class FGUIObjectEditor extends Component {

    private _gObject: GObject | null = null;

    onLoad() {

        // 通过节点关联获取GObject实例（需根据项目实际绑定方式调整）

        this._gObject = (<any>this.node)['$gobj'] as GObject;

    }



    // 暴露可编辑属性到编辑器检查器

    @property({ visible: EDITOR }) get name(): string { return this._gObject?.name || ''; } set name(value: string) { if (this._gObject) this._gObject.name = value; }

    @property({ visible: EDITOR }) get resourceURL(): string { return this._gObject?.resourceURL || ''; }

    @property({ visible: EDITOR }) get pos(): Vec2 { return this._gObject ? new Vec2(this._gObject.x, this._gObject.y) : new Vec2(); } set pos(value: Vec2) { if (this._gObject) { this._gObject.x = value.x; this._gObject.y = value.y; } }

    @property({ visible: EDITOR }) get size(): Vec2 { return this._gObject ? new Vec2(this._gObject.width, this._gObject.height) : new Vec2(); } set size(value: Vec2) { if (this._gObject) { this._gObject.width = value.x; this._gObject.height = value.y; } }

    @property({ visible: EDITOR }) get scale(): Vec2 { return this._gObject ? new Vec2(this._gObject.scaleX, this._gObject.scaleY) : new Vec2(1, 1); } set scale(value: Vec2) { if (this._gObject) { this._gObject.scaleX = value.x; this._gObject.scaleY = value.y; } }

    @property({ visible: EDITOR }) get pivot(): Vec2 { return this._gObject ? new Vec2(this._gObject.pivotX, this._gObject.pivotY) : new Vec2(); } set pivot(value: Vec2) { if (this._gObject) { this._gObject.pivotX = value.x; this._gObject.pivotY = value.y; } }

    @property({ visible: EDITOR }) get rotation(): number { return this._gObject?.rotation || 0; } set rotation(value: number) { if (this._gObject) this._gObject.rotation = value; }

    @property({ visible: EDITOR }) get visible(): boolean { return this._gObject?.visible || false; } set visible(value: boolean) { if (this._gObject) this._gObject.visible = value; }

    @property({ visible: EDITOR }) get touchable(): boolean { return this._gObject?.touchable || false; } set touchable(value: boolean) { if (this._gObject) this._gObject.touchable = value; }

    @property({ visible: EDITOR }) get grayed(): boolean { return this._gObject?.grayed || false; } set grayed(value: boolean) { if (this._gObject) this._gObject.grayed = value; }

    @property({ visible: EDITOR }) get draggable(): boolean { return this._gObject?.draggable || false; } set draggable(value: boolean) { if (this._gObject) this._gObject.draggable = value; }

    @property({ visible: EDITOR }) get pivotAsAnchor(): boolean { return this._gObject?.pivotAsAnchor || false; } set pivotAsAnchor(value: boolean) { if (this._gObject) this._gObject.setPivot(this._gObject.pivotX, this._gObject.pivotY, value); }

    @property({ visible: EDITOR }) get text(): string { return this._gObject?.text || ''; } set text(value: string) { if (this._gObject) this._gObject.text = value; }

    @property({ visible: EDITOR }) get icon(): string { return this._gObject?.icon || ''; } set icon(value: string) { if (this._gObject) this._gObject.icon = value; }

    @property({ visible: EDITOR, type: CCFloat, range: [0, 1, 0.01], slide: true }) get alpha(): number { return this._gObject?.alpha || 1; } set alpha(value: number) { if (this._gObject) this._gObject.alpha = value; }

    @property({

        visible: function(this: FGUIObjectEditor) { return EDITOR && this._gObject && (<any>this._gObject)['color']; }

    })

    get color(): Color {

        return this._gObject ? (<any>this._gObject).color : null;

    }

    set color(value: Color) {

        this._gObject ? (<any>this._gObject).color = value: null;

    }

    @property({

        visible: function(this: FGUIObjectEditor) { return EDITOR && this._gObject && (<any>this._gObject)['url']; }

    })

    get url(): Color {

        return this._gObject ? (<any>this._gObject).url : null;

    }

    set url(value: Color) {

        this._gObject ? (<any>this._gObject).url = value: null;

    }

}
